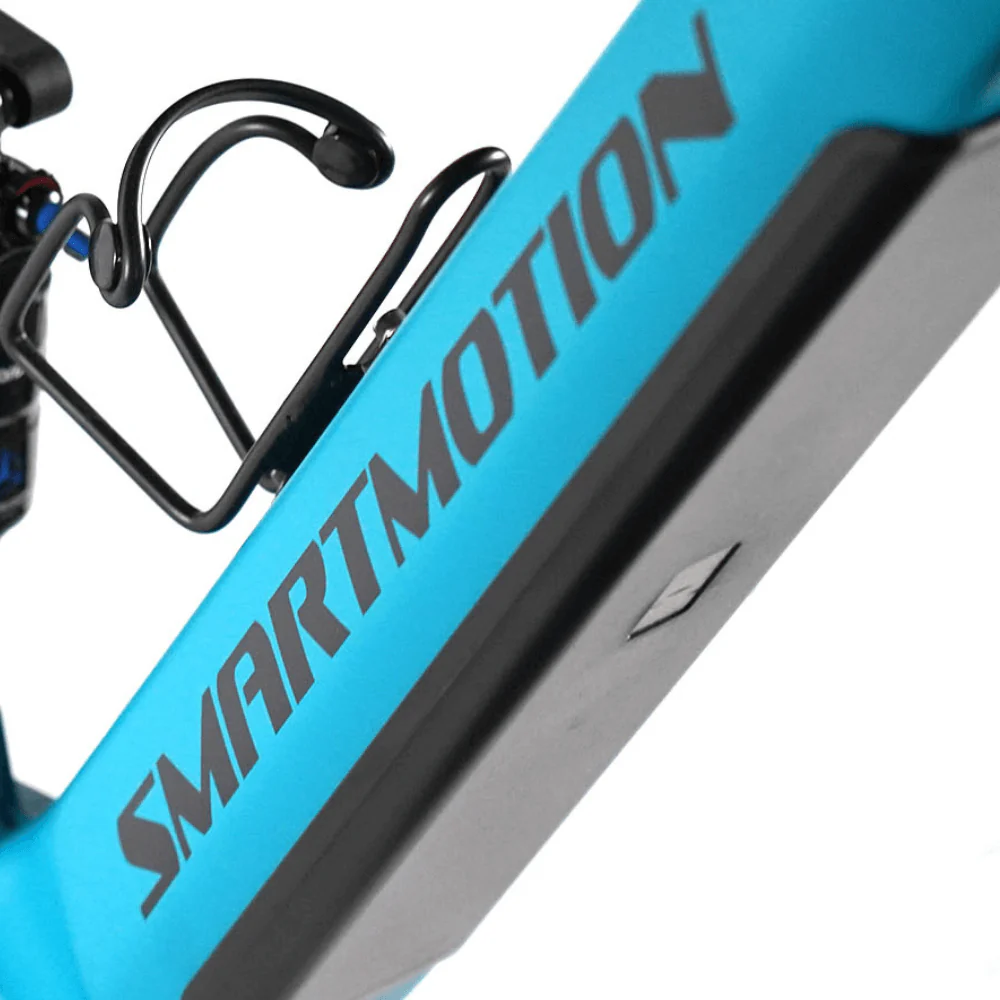

BATTERY: 36V 16Ah/575Wh Frame-integrated with CANBus |
HUB: Front: Aluminium 15mm Boost, sealed bearing 15mm x 110mm | Rear: Sealed bearing 150mm x 12mm through axle |
|

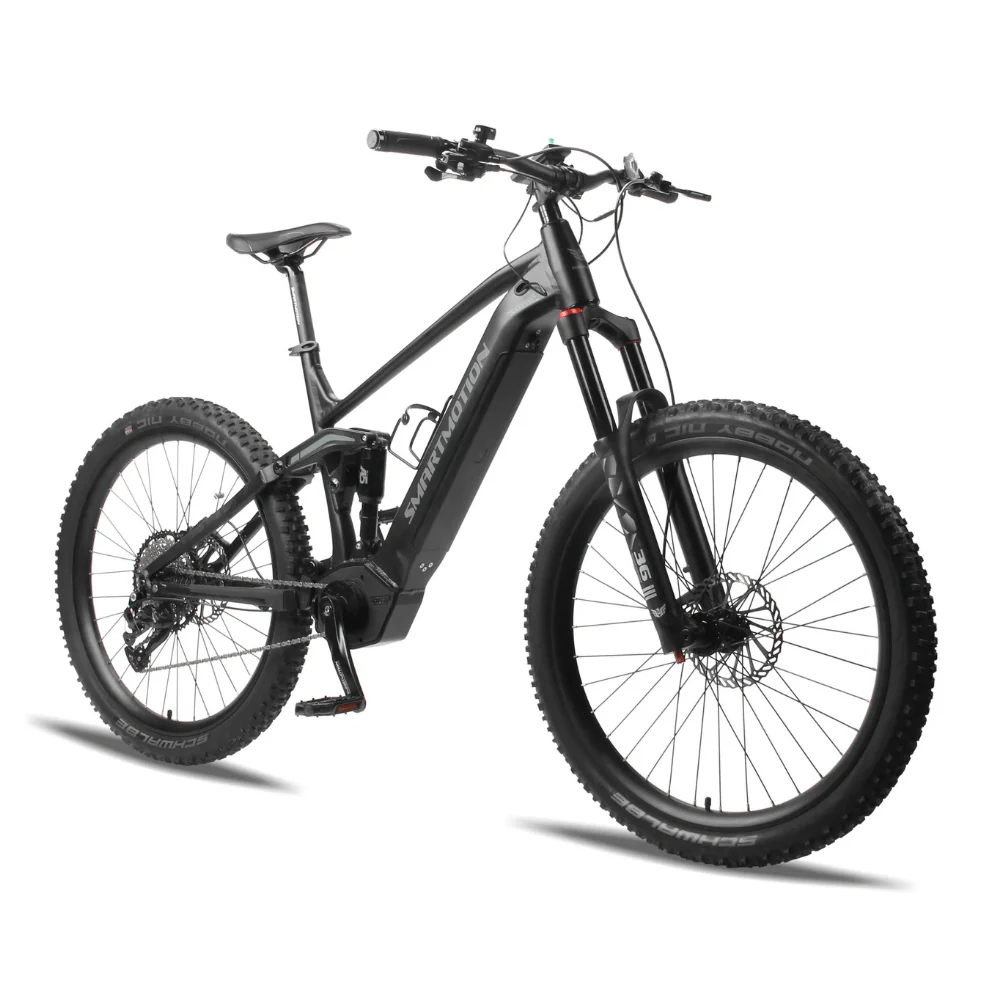

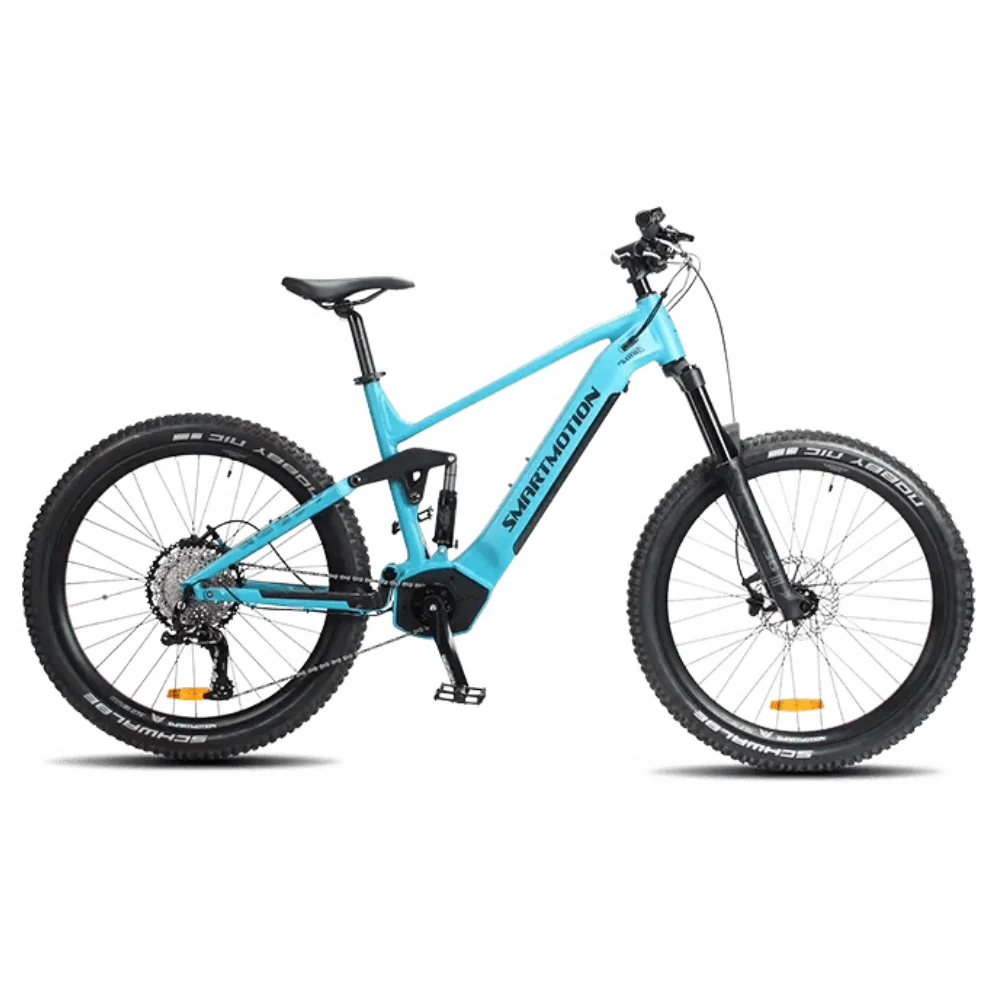

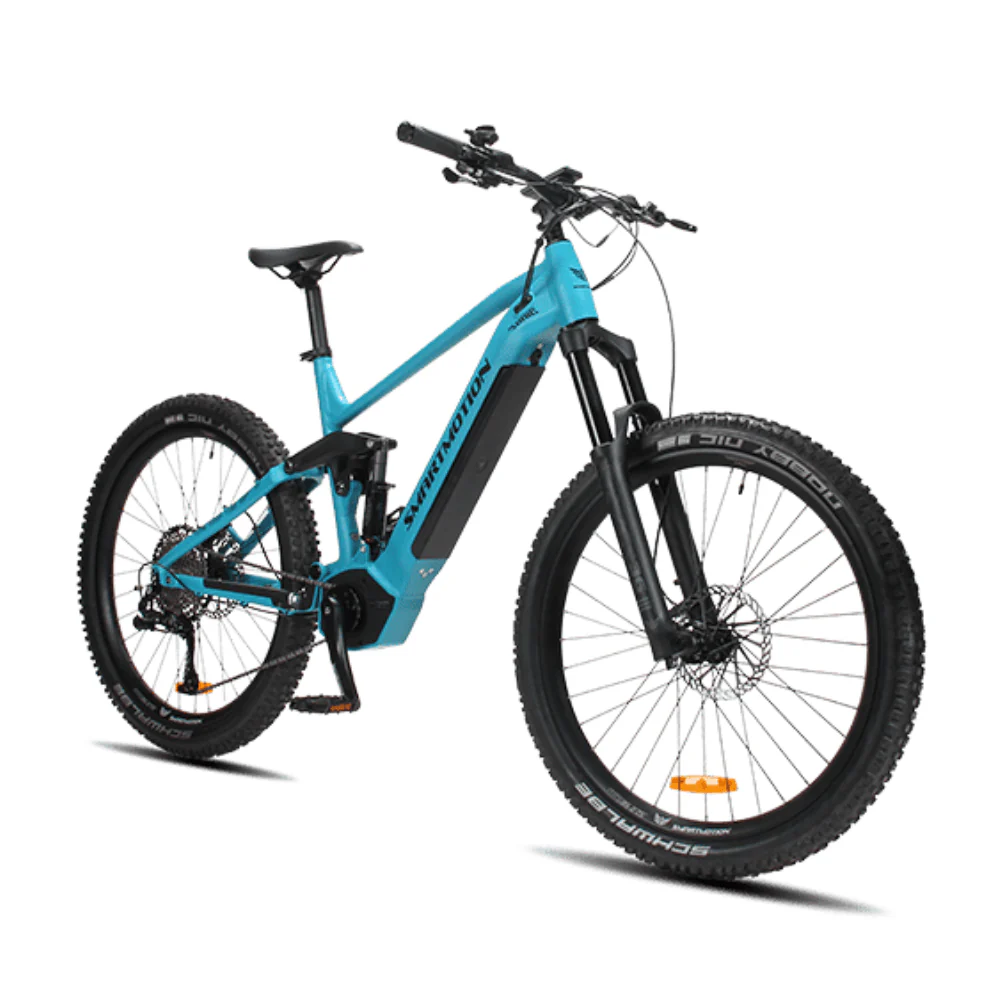

FRAME: 27.5” soft tail 140mm travel aluminium frame, 16.5”/18”/19”/21” size options |
SPOKES: SDL SUS304 Black Stainless 13G*258MM/260MM |
|
FORK: Dynamo ares 140mm travel air suspension forks with rebound and air lockout adjustment |
RIM: MT MTSC35D Black aluminium 27.5*13G*36H |
|
HEAD SET: Neco integrated tapered |

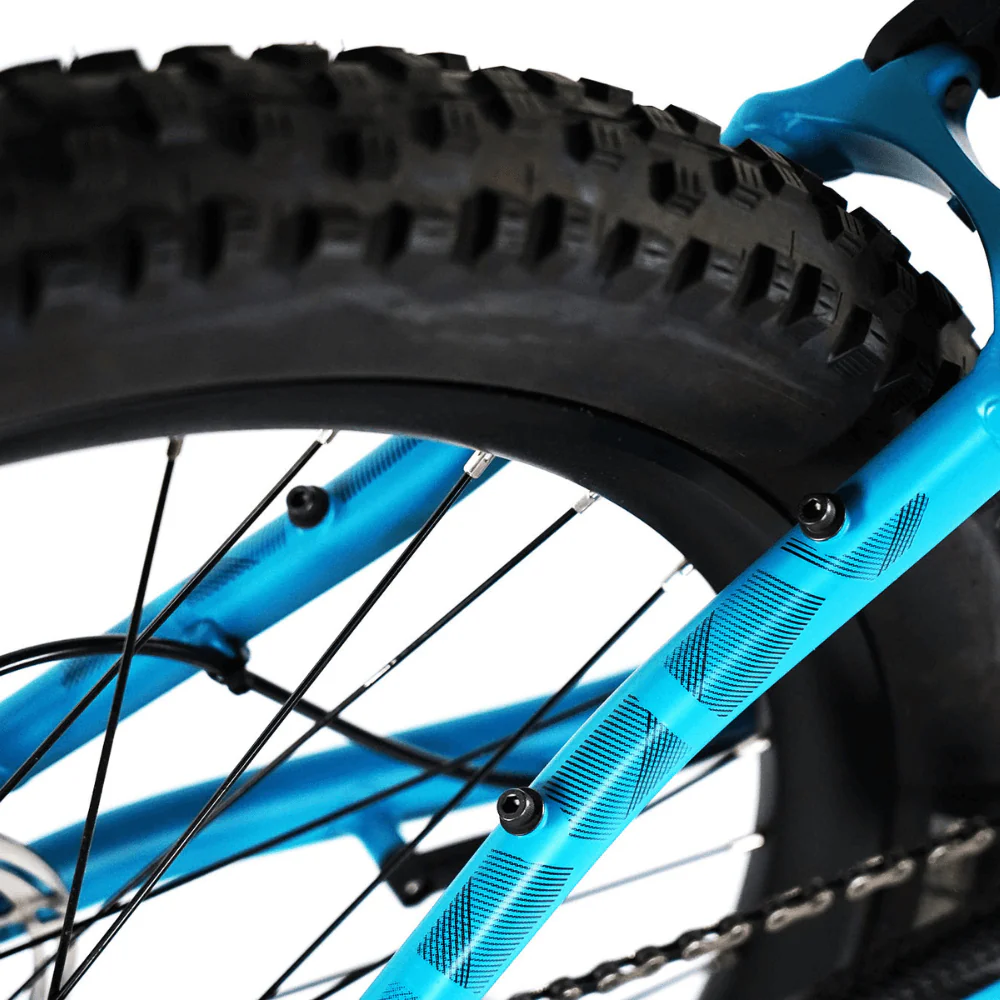

TYRE: Schwalbe Nobby Nic 27.5×2.6” MTB tyre |
|
HANDLE BAR: Aluminium MTB Handlebar 780*22.2*31.8, 6 degree |
DERAILLEUR: ltwoo RD-A11-X CS50T 11-speed derailleur and shifter |
|

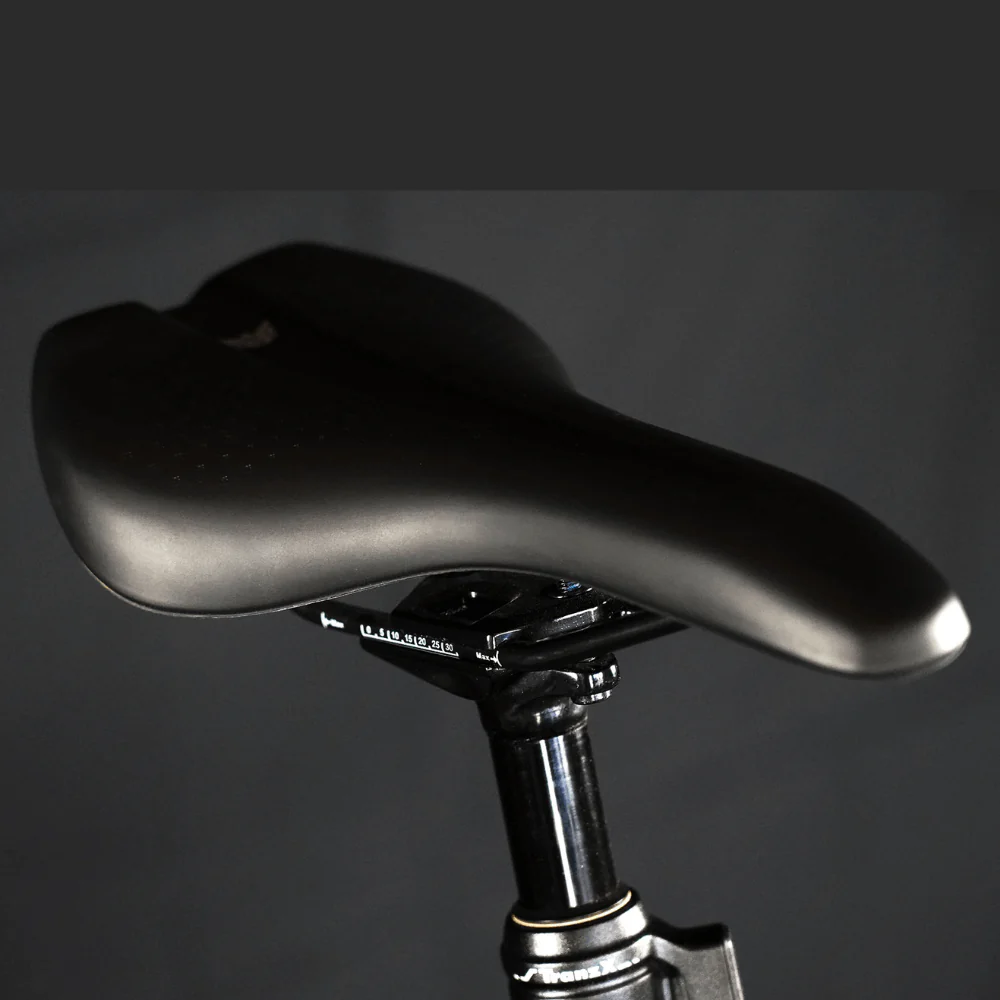

SADDLE: Smartmotion VACUUM SADDLE |

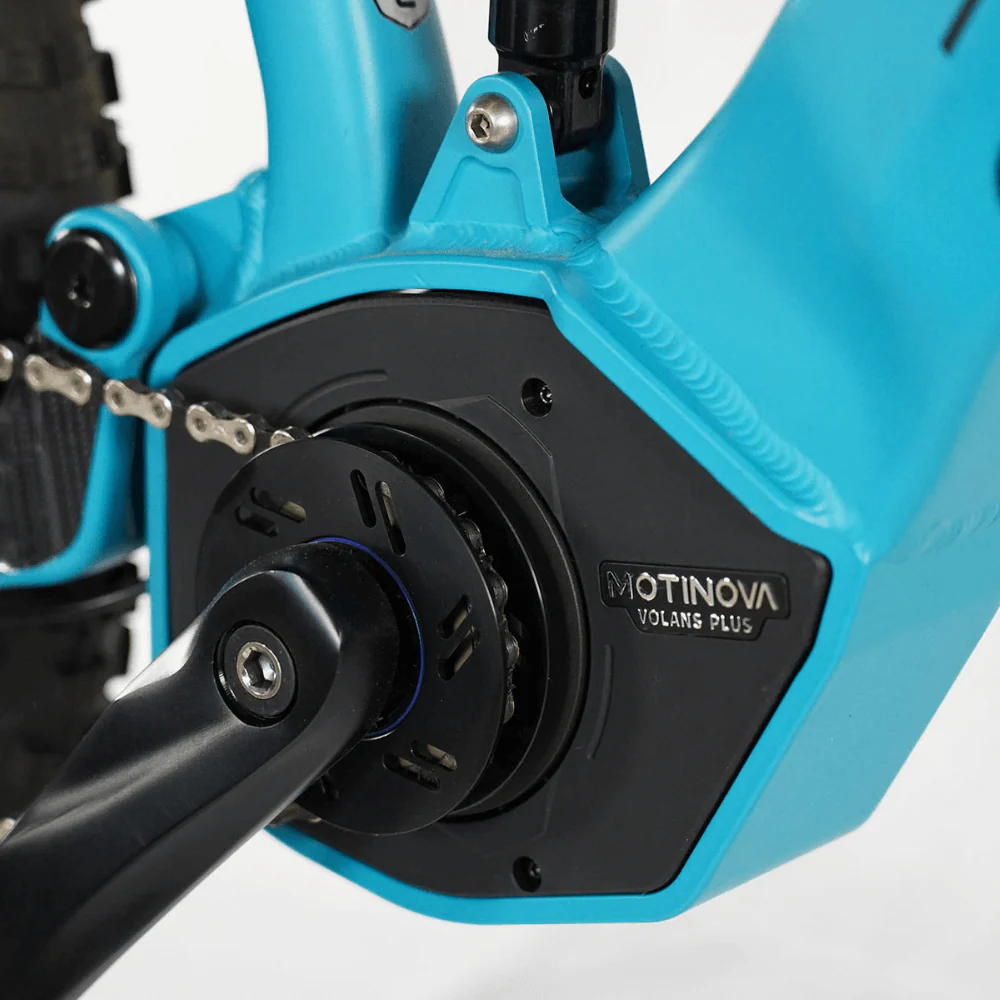

MOTOR: MOTINOVA Volans Plus 75Nm mid-drive 250w with CANBus |
|
SEAT POST: 31.6 x 350mm aluminium |

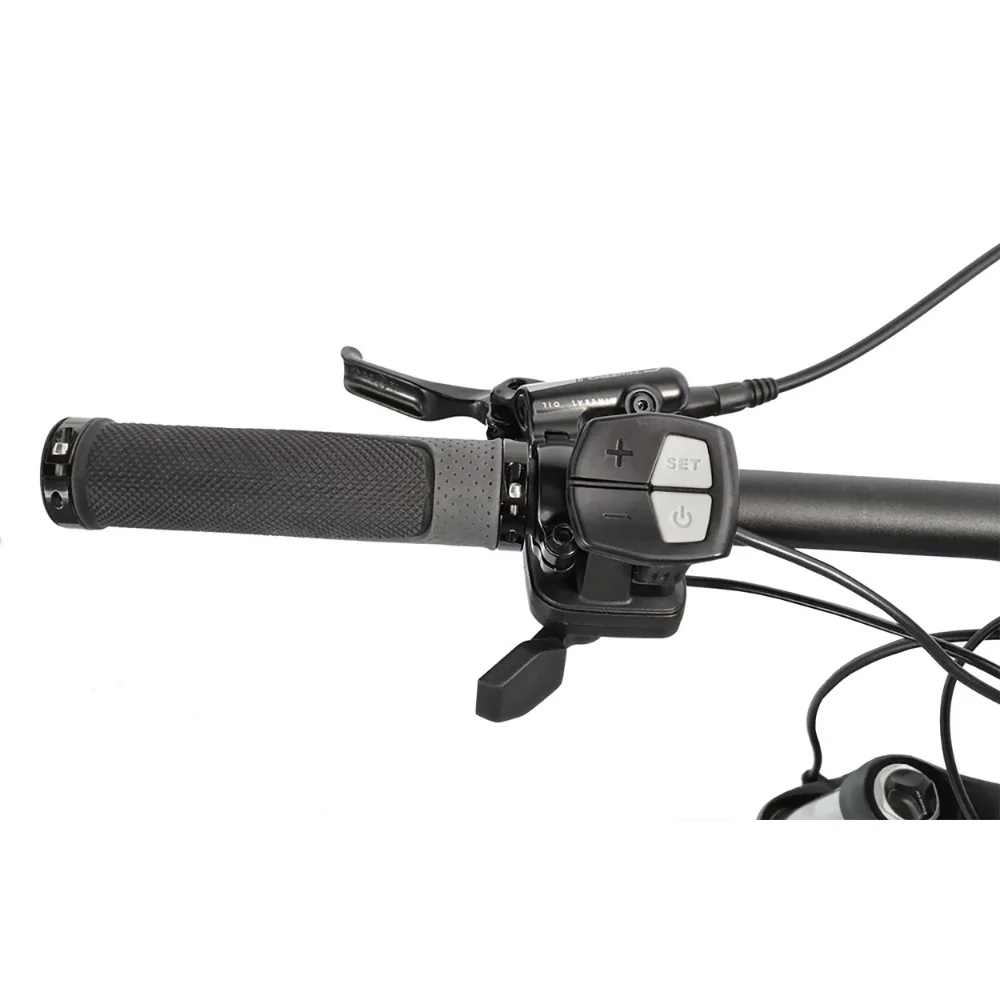

SENSOR: Torque sensor with two Smart modes and 5 levels of assistance, throttle for option |
|
BRAKE: GEMMA GA900 hydraulic Brake with 180mm rotors |

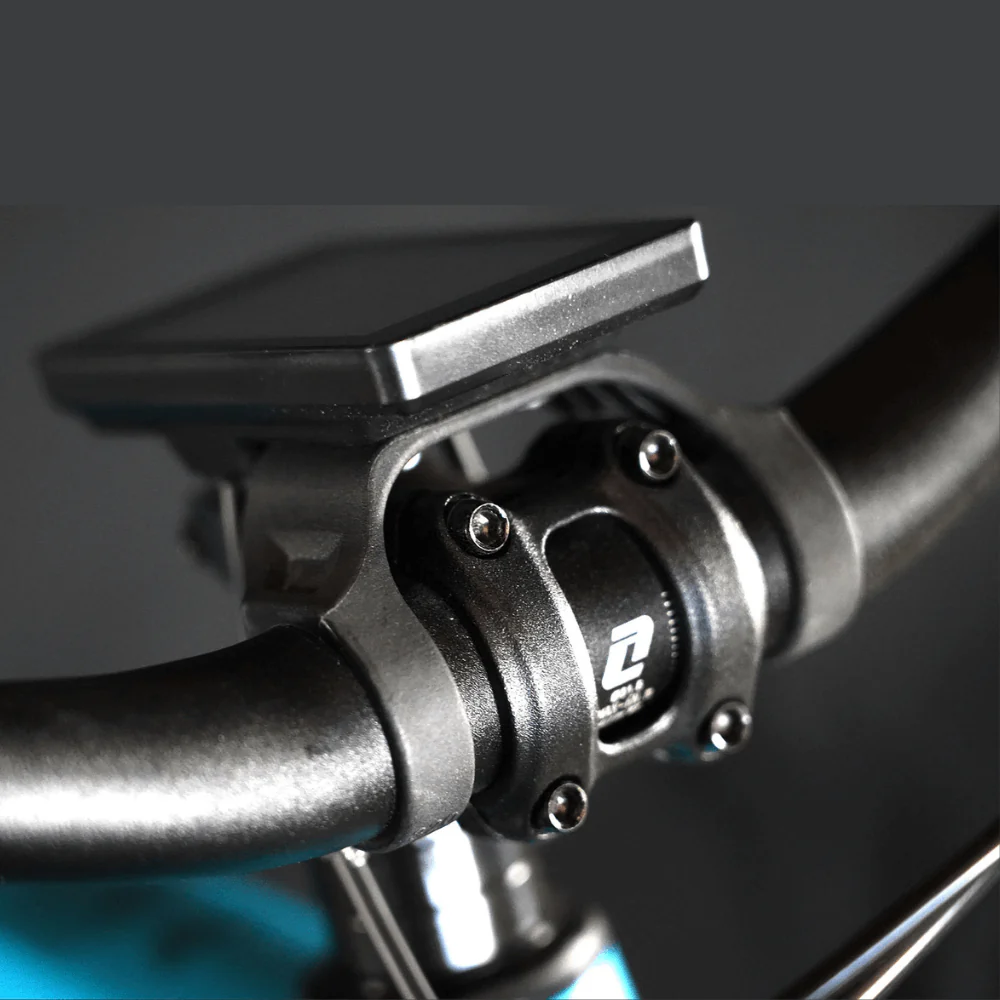

DISPLAY: Multifunction full color LCD system including cadence rpm, speed, avg speed, max speed, trip, battery level, Temperature of motor and battery |
|
CHAINWHEEL: 18T narrow wide aluminium, 170mm crank arms |
TOP SPEED: capped at 25km/h |
|
CHAIN: E11 Sport NP/NP 11/128″*116 |
RANGE: Up to 120km |
|
CASSETTE: LTWOO 11-50T 11-speed cassette |
MAX LOAD: 100kg |
