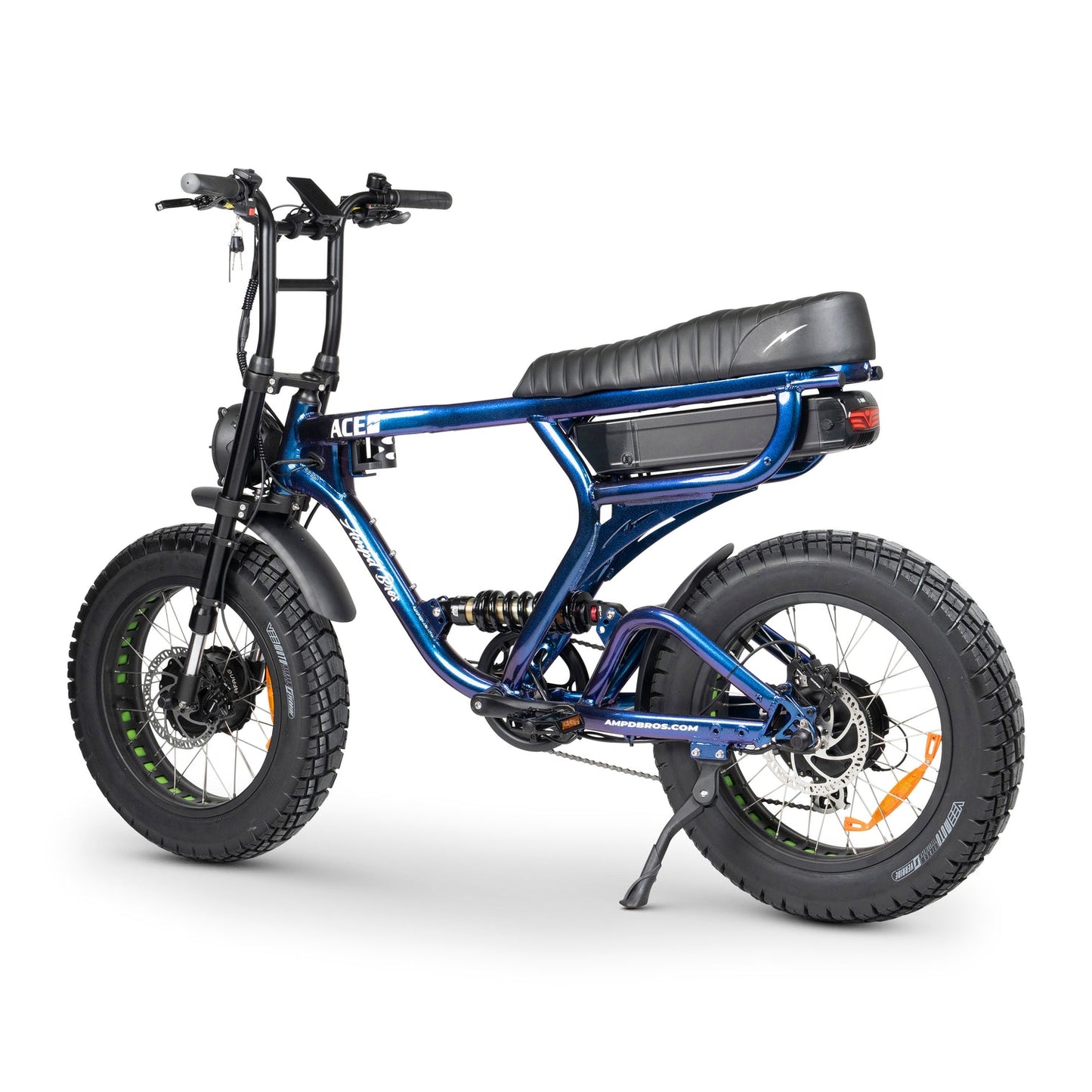

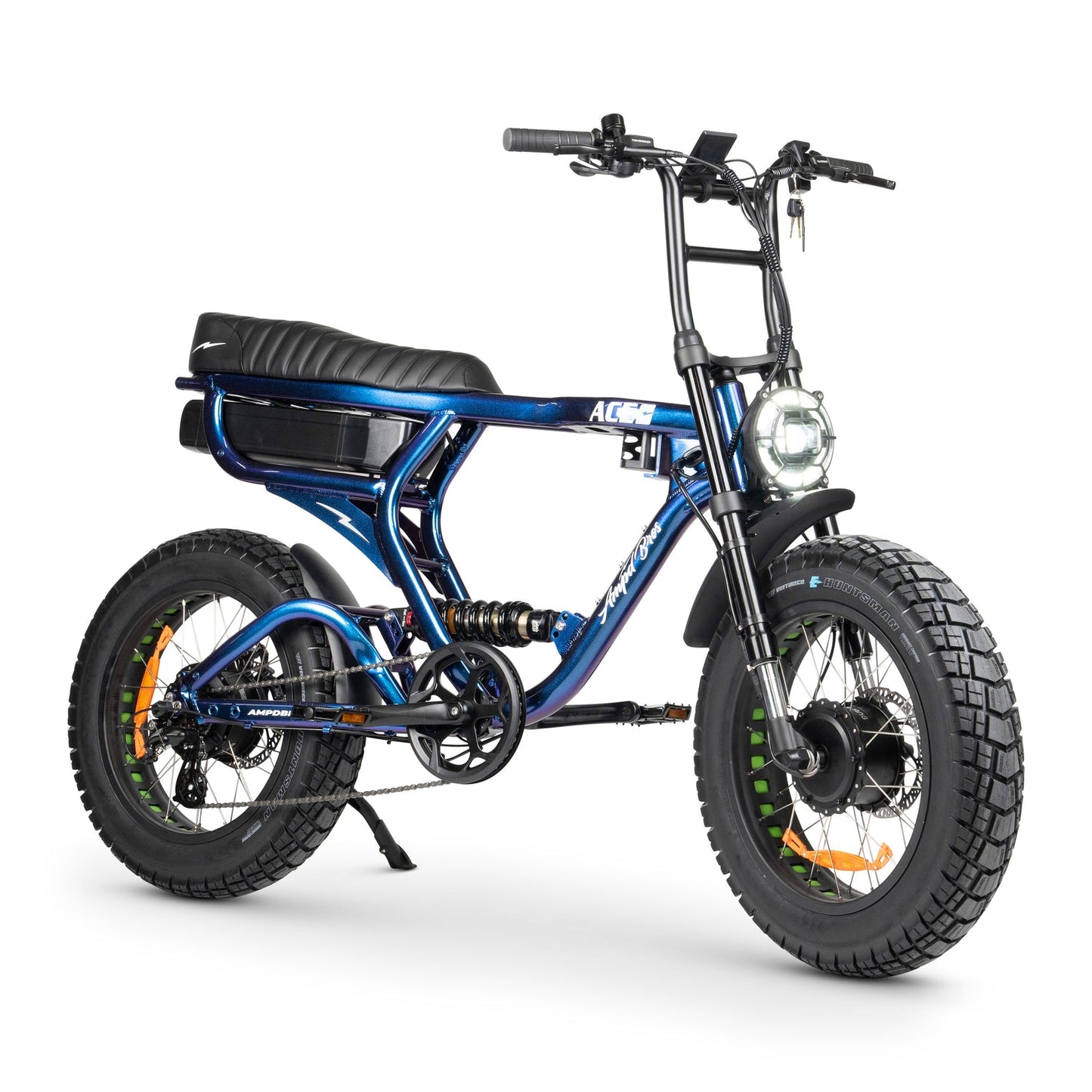

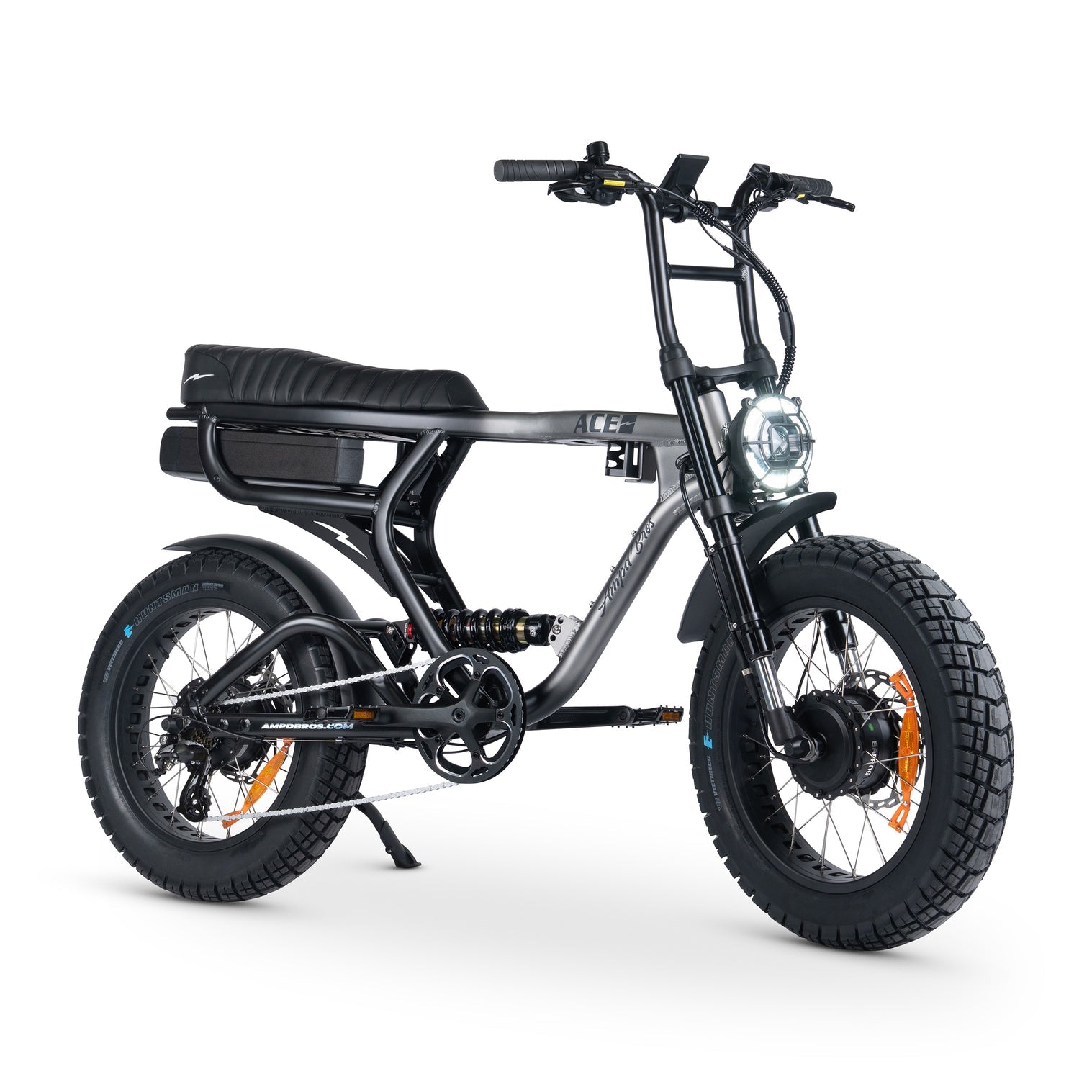

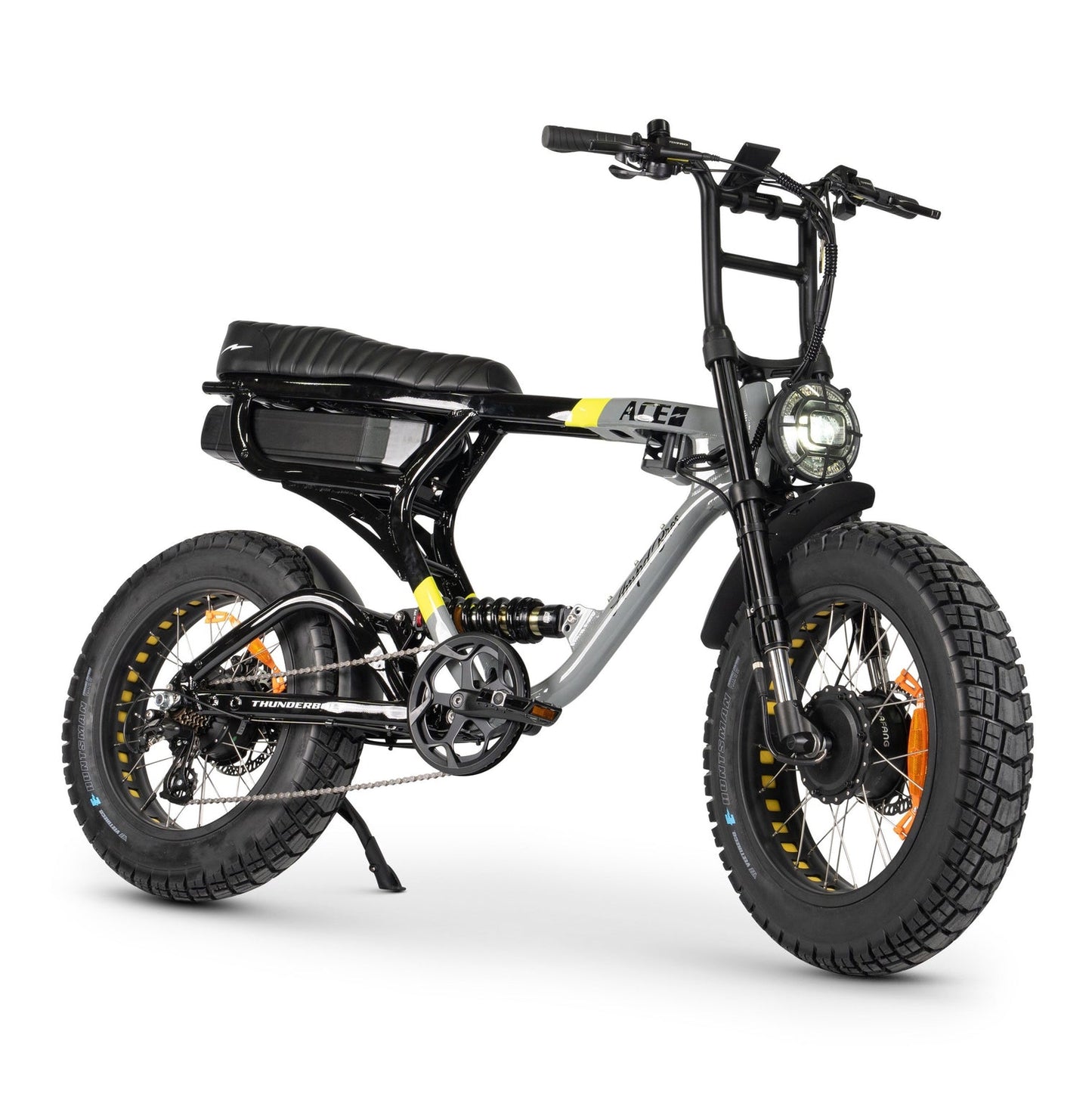

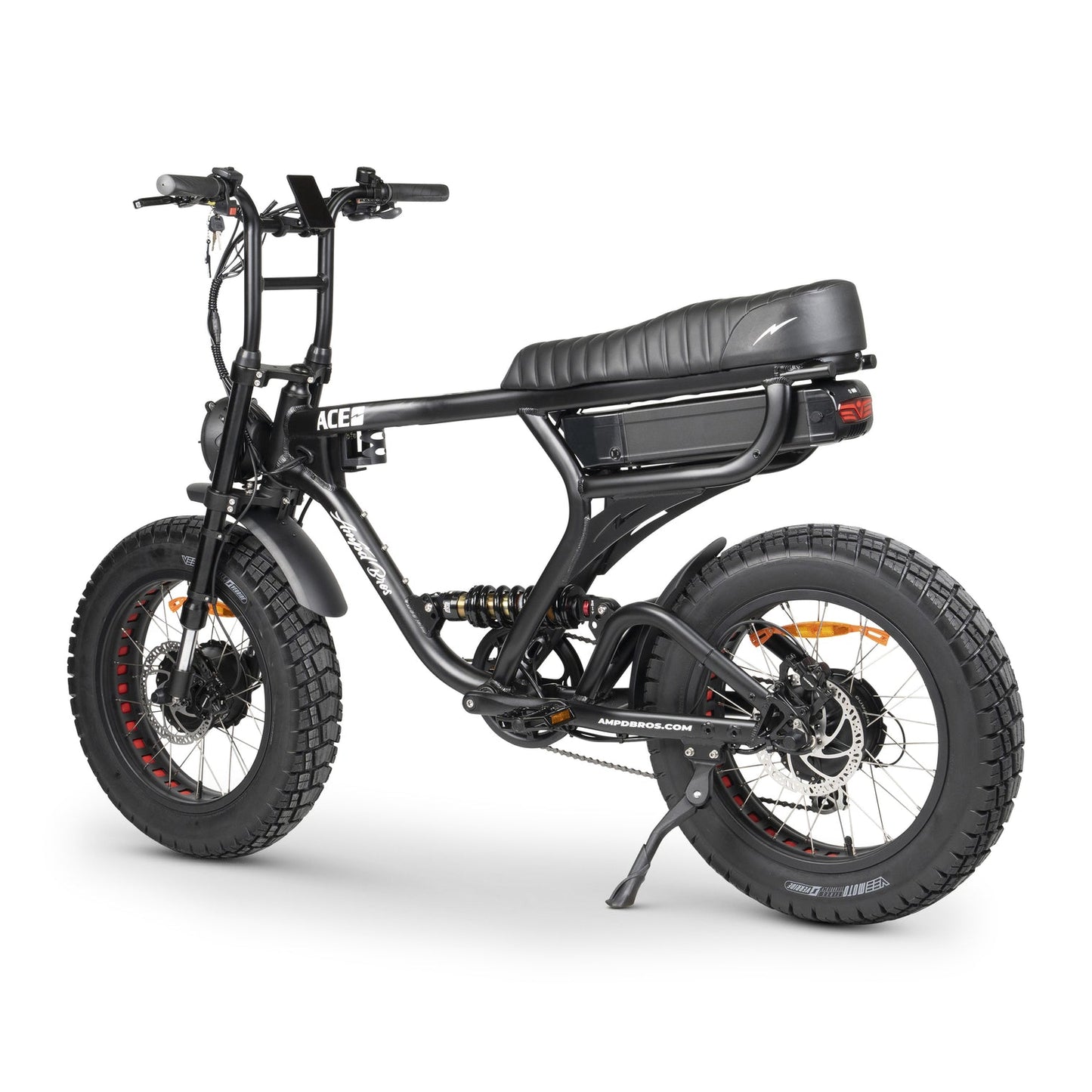

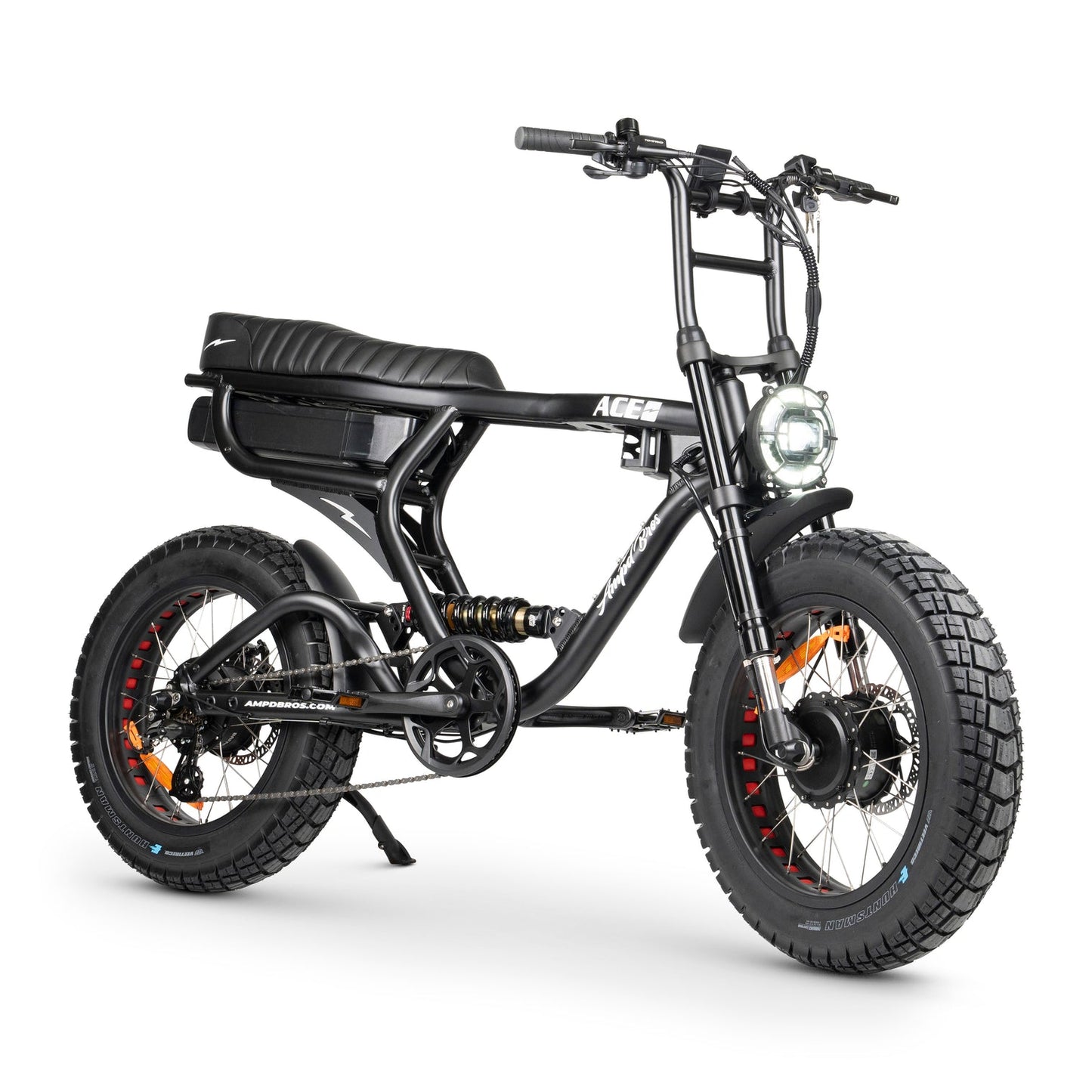

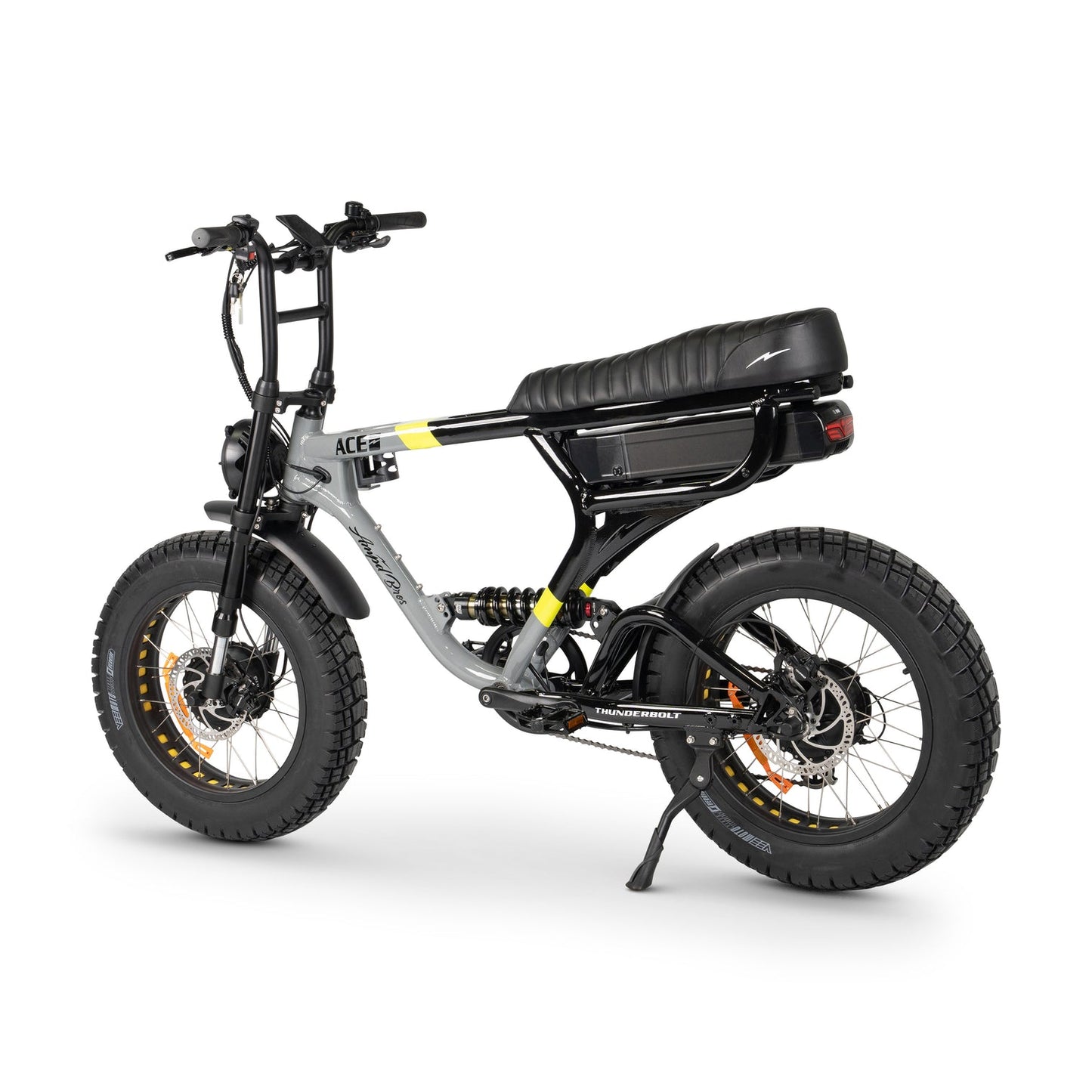

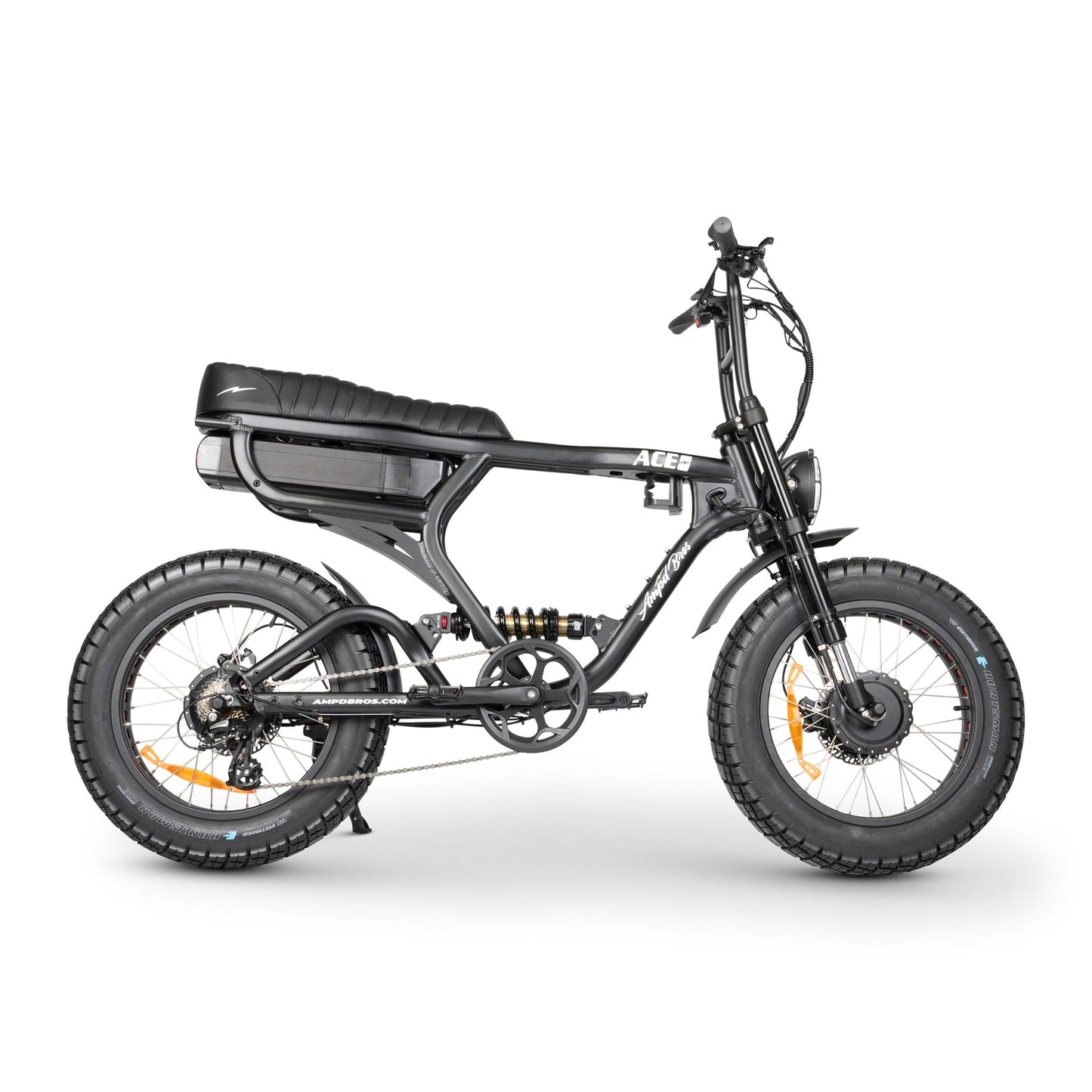

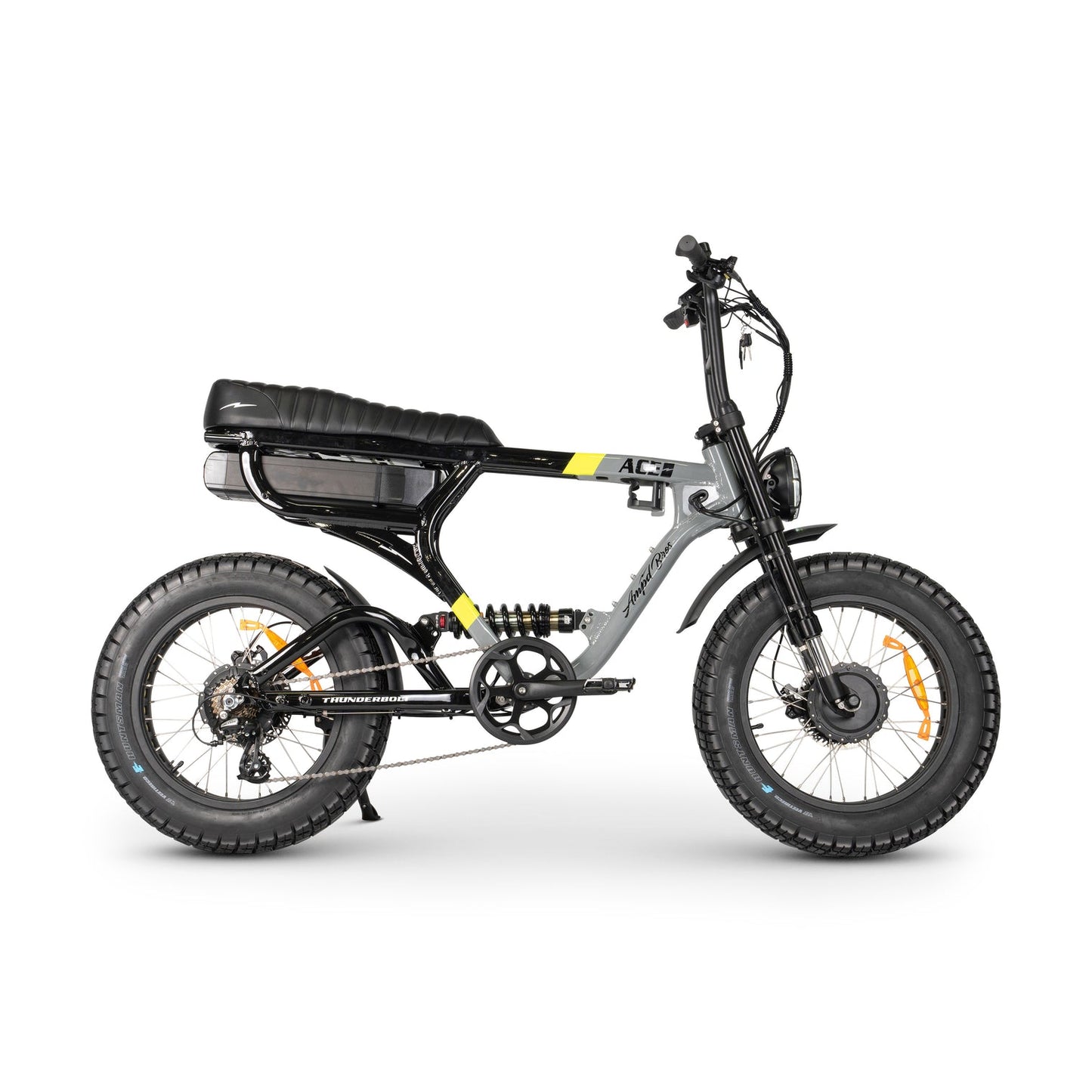

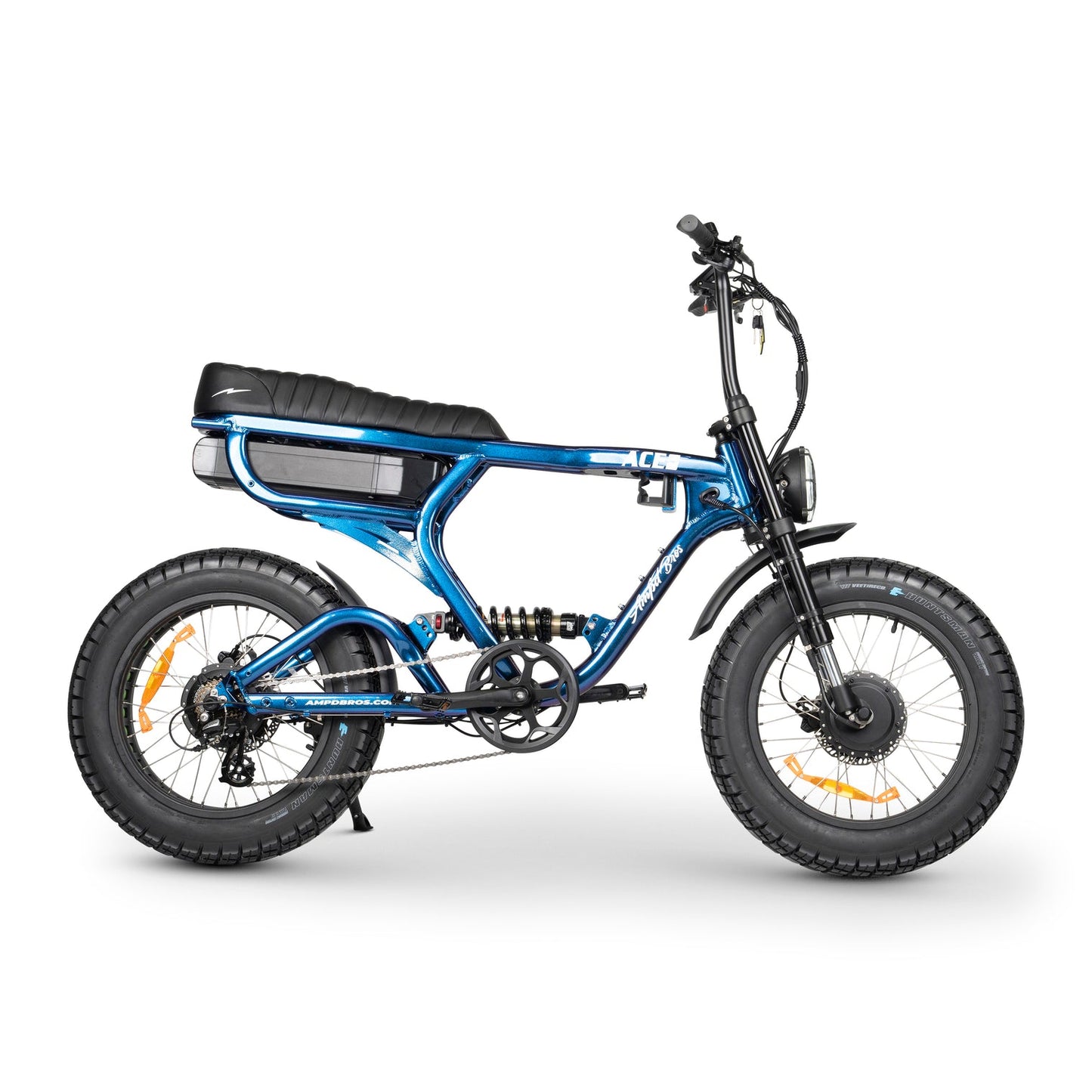

ACE-X Demon Dual Motor Electric Bike
Speed & Range
- Range 100km* (Single Motor Only)
- Top Speed 25km/h (or Unlock up to 50km/h for Private Property Use)
Battery
- Standard 48V / 1,200Wh, 25AH
- Samsung Premium 21700 Lithium cells

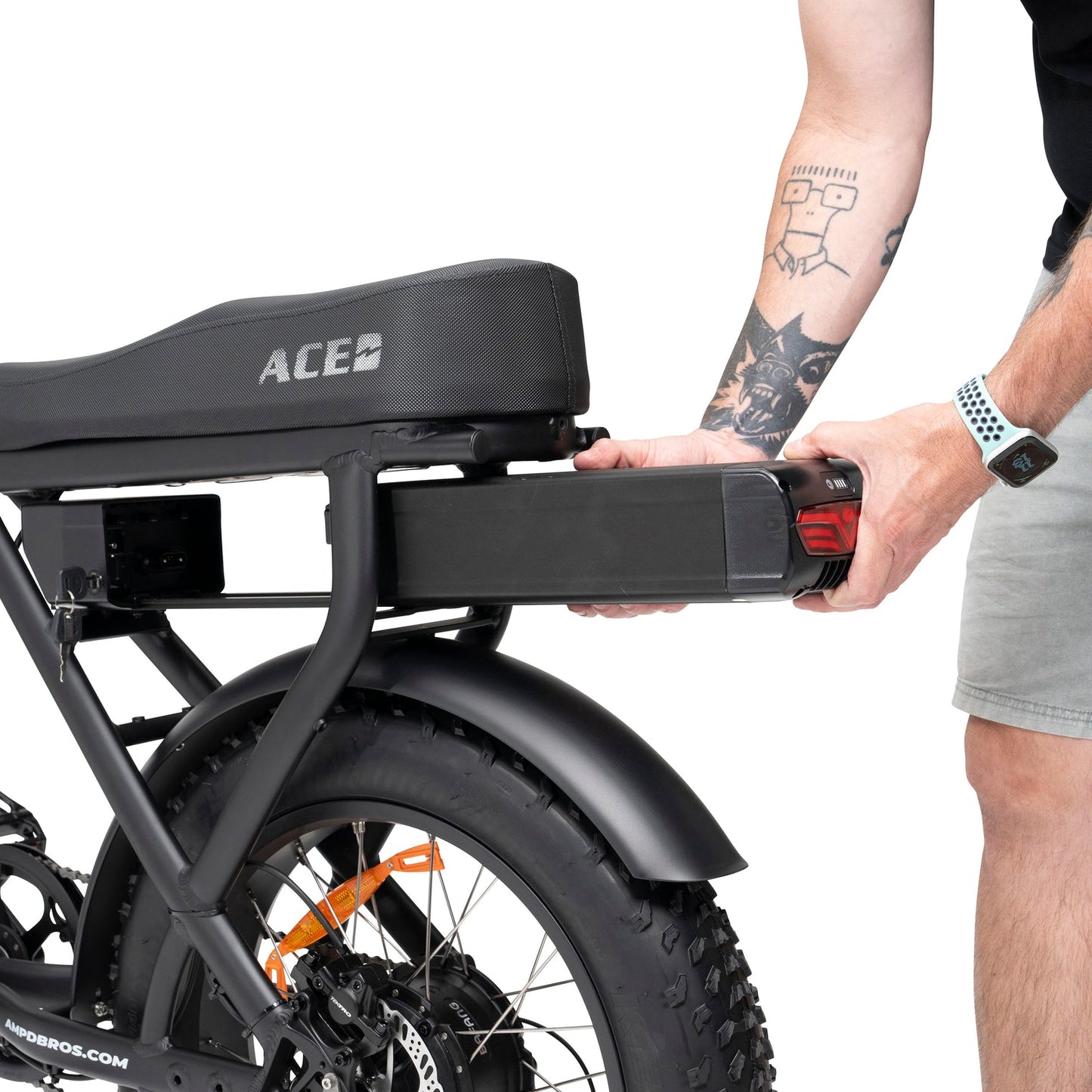

- Battery is removable and can be charged in bike or separately.
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 30º Degree / 60% Incline PAS

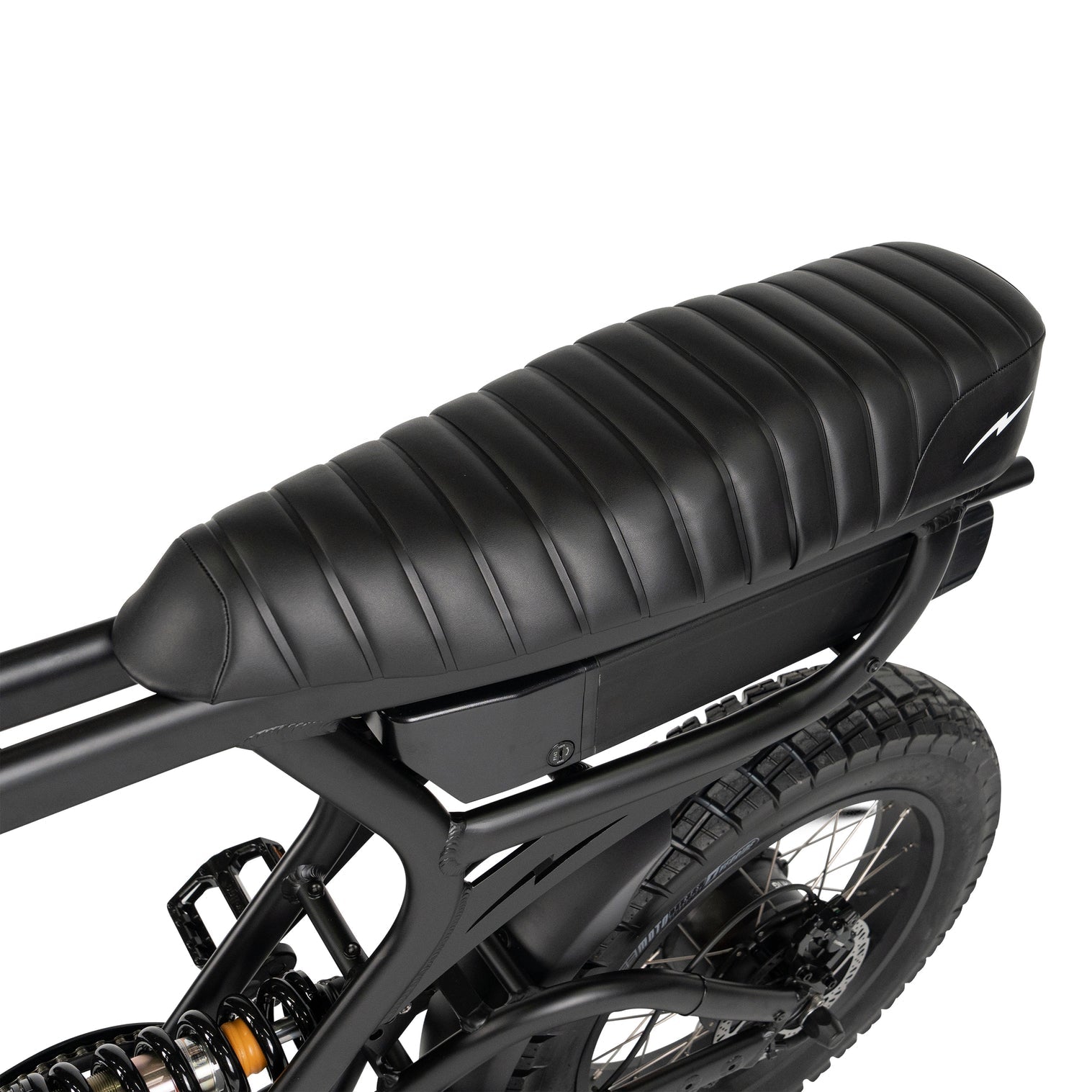

- Seat Custom Large Quilted Plush Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Ace Pro Headlight Ampd Bros Signature 800lm LED Light with DRL

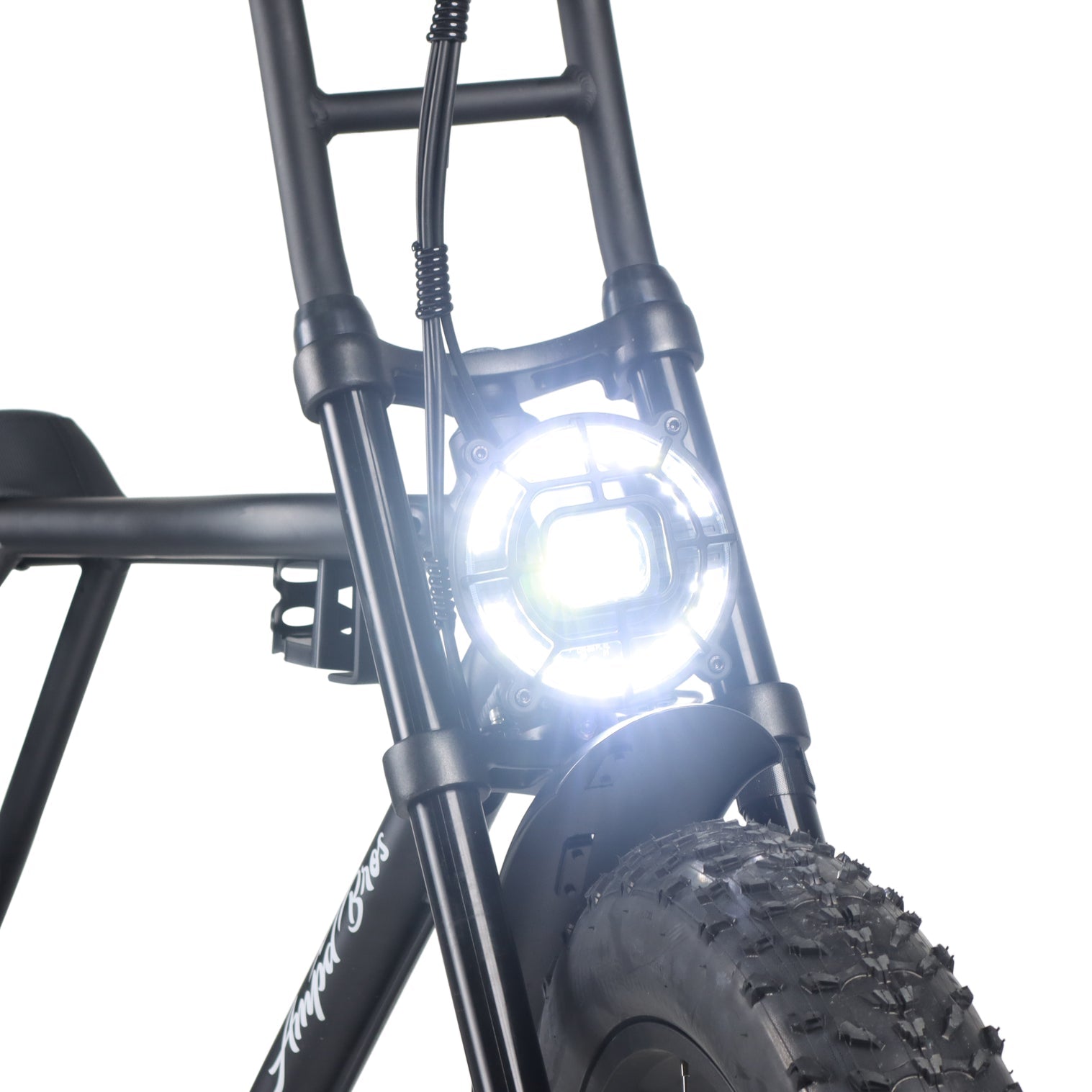

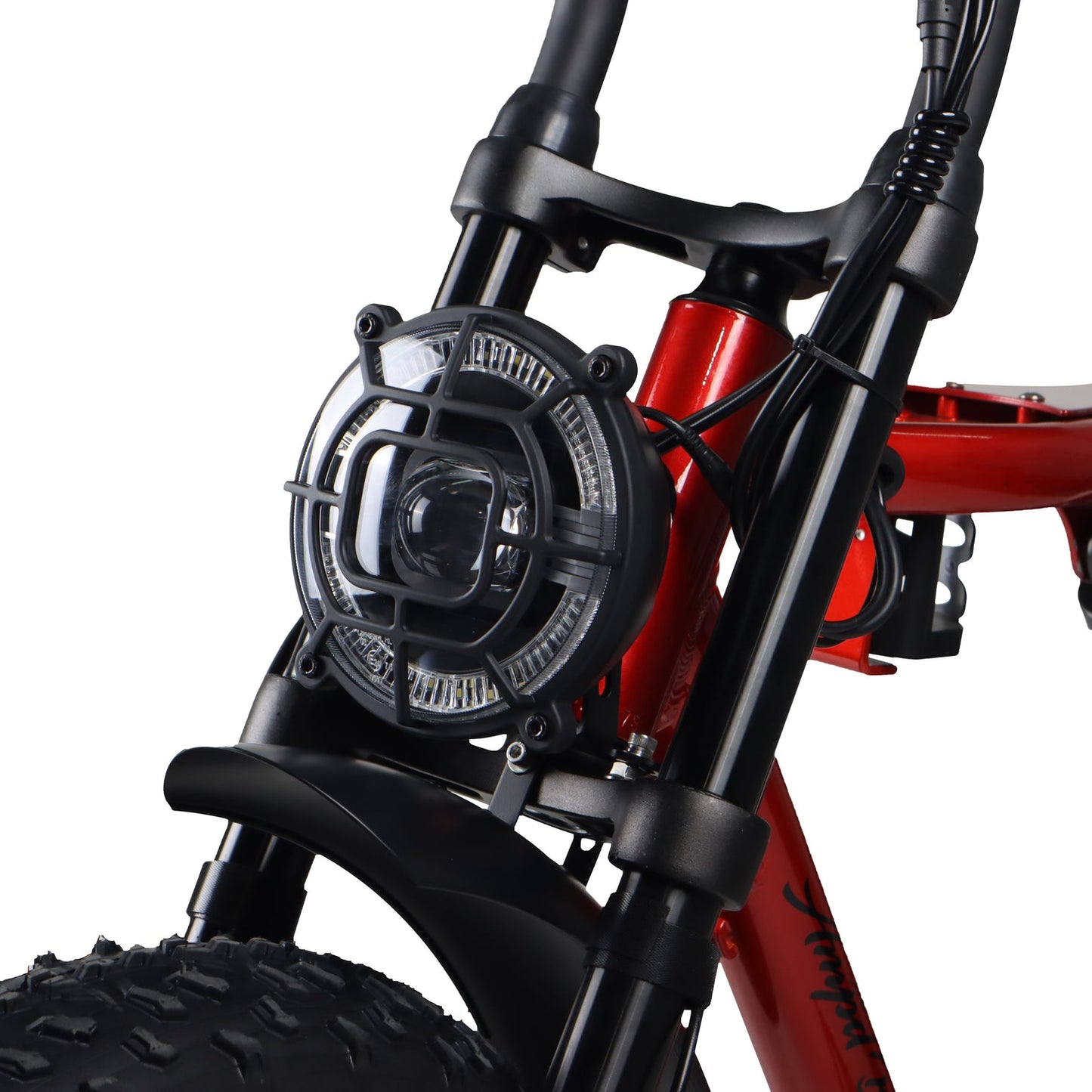

- Demon Headlight Upgraded PRO Front LED 1,700lm Headlight with DRL

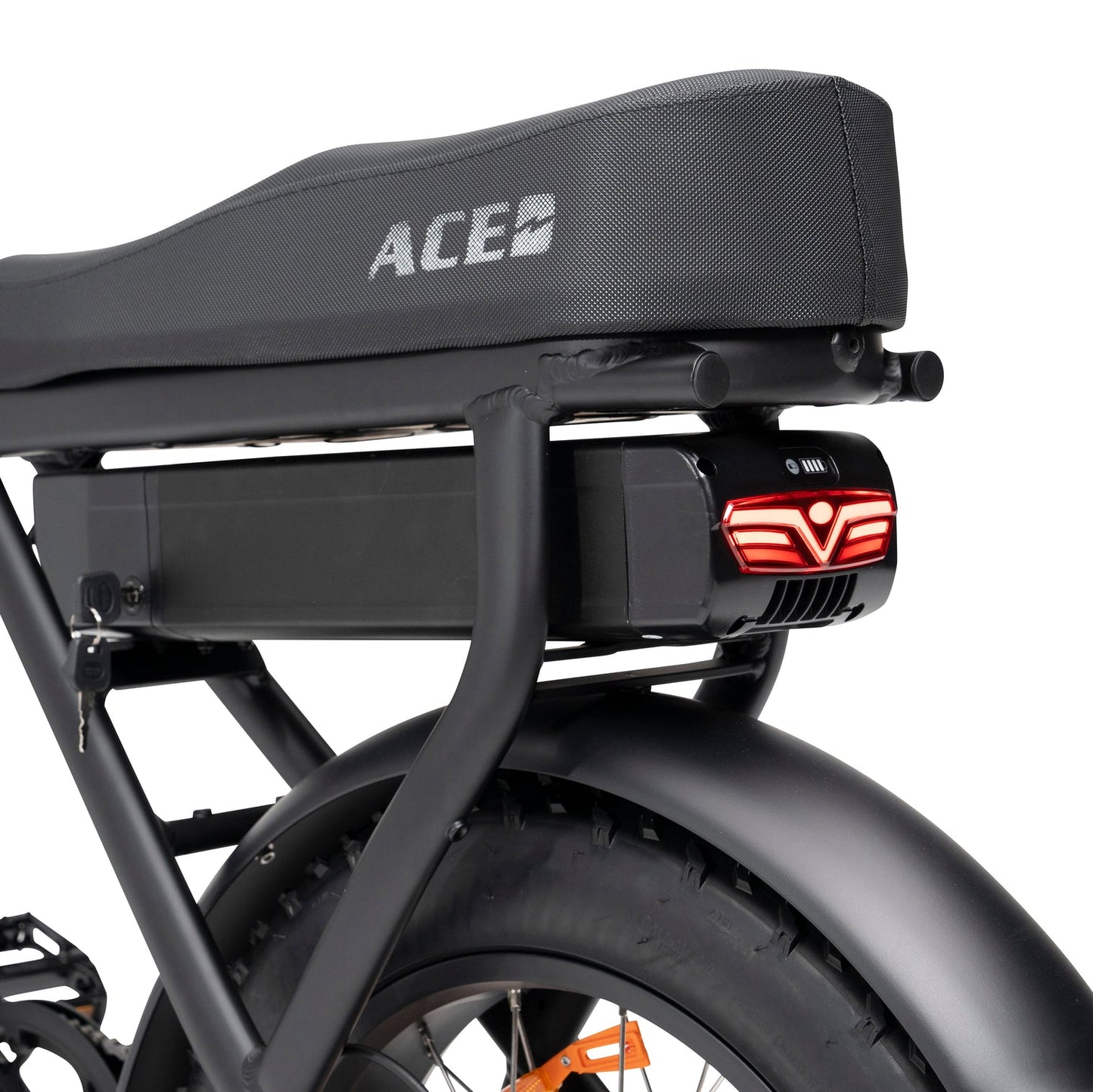

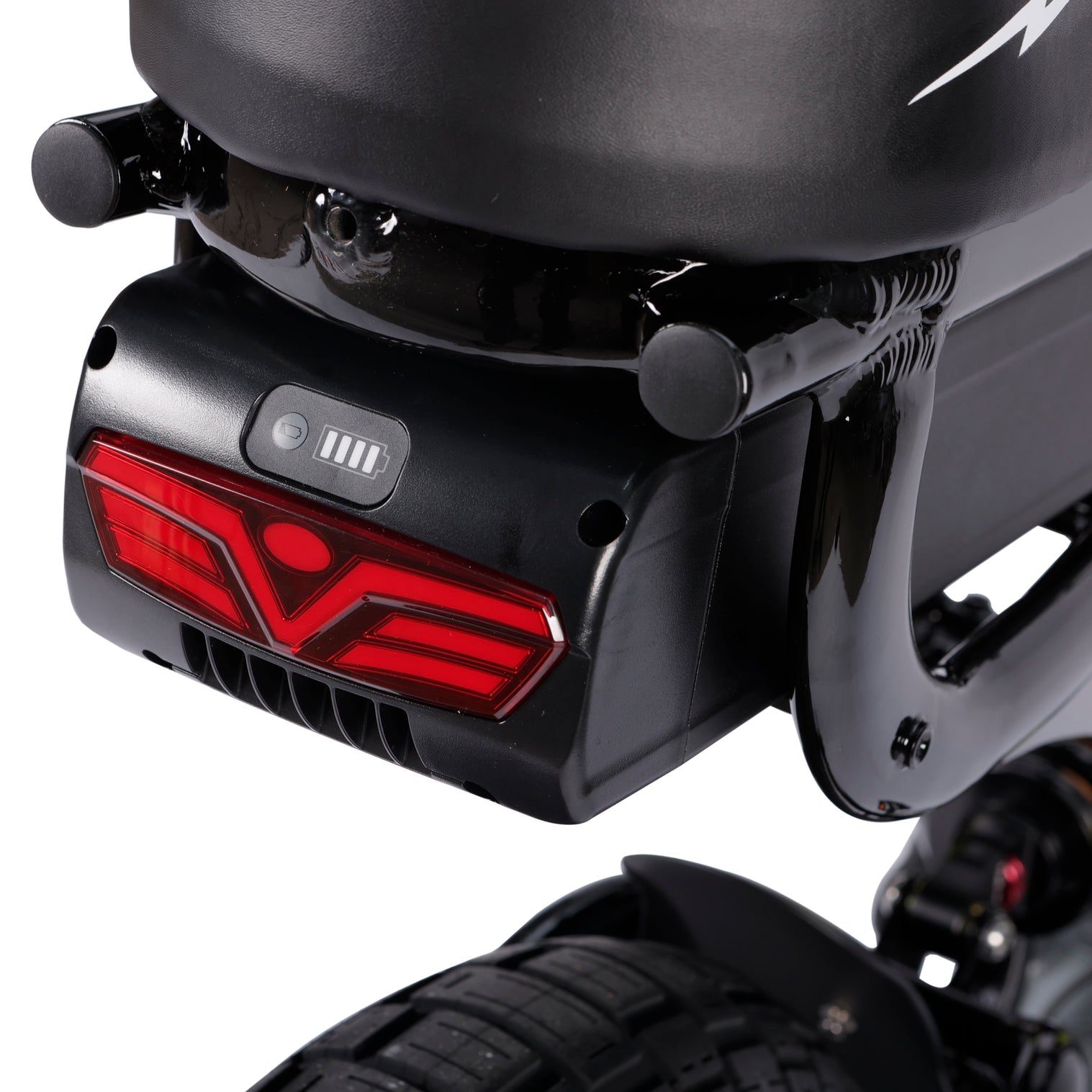

- Lights Rear LED Brake Light inbuilt to battery pack

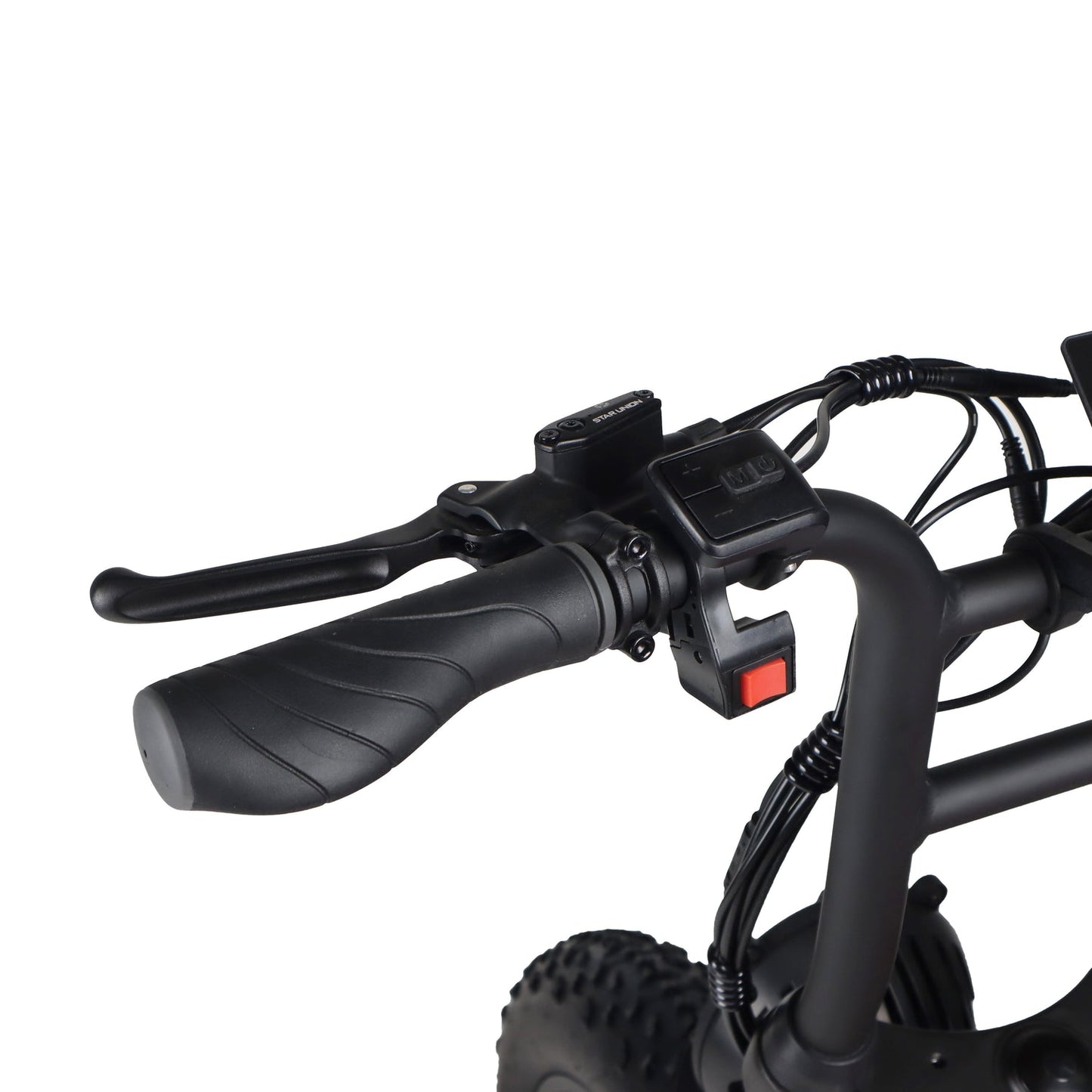

- Grips Velo Wide Comfort
- Bell Yes
Brakes

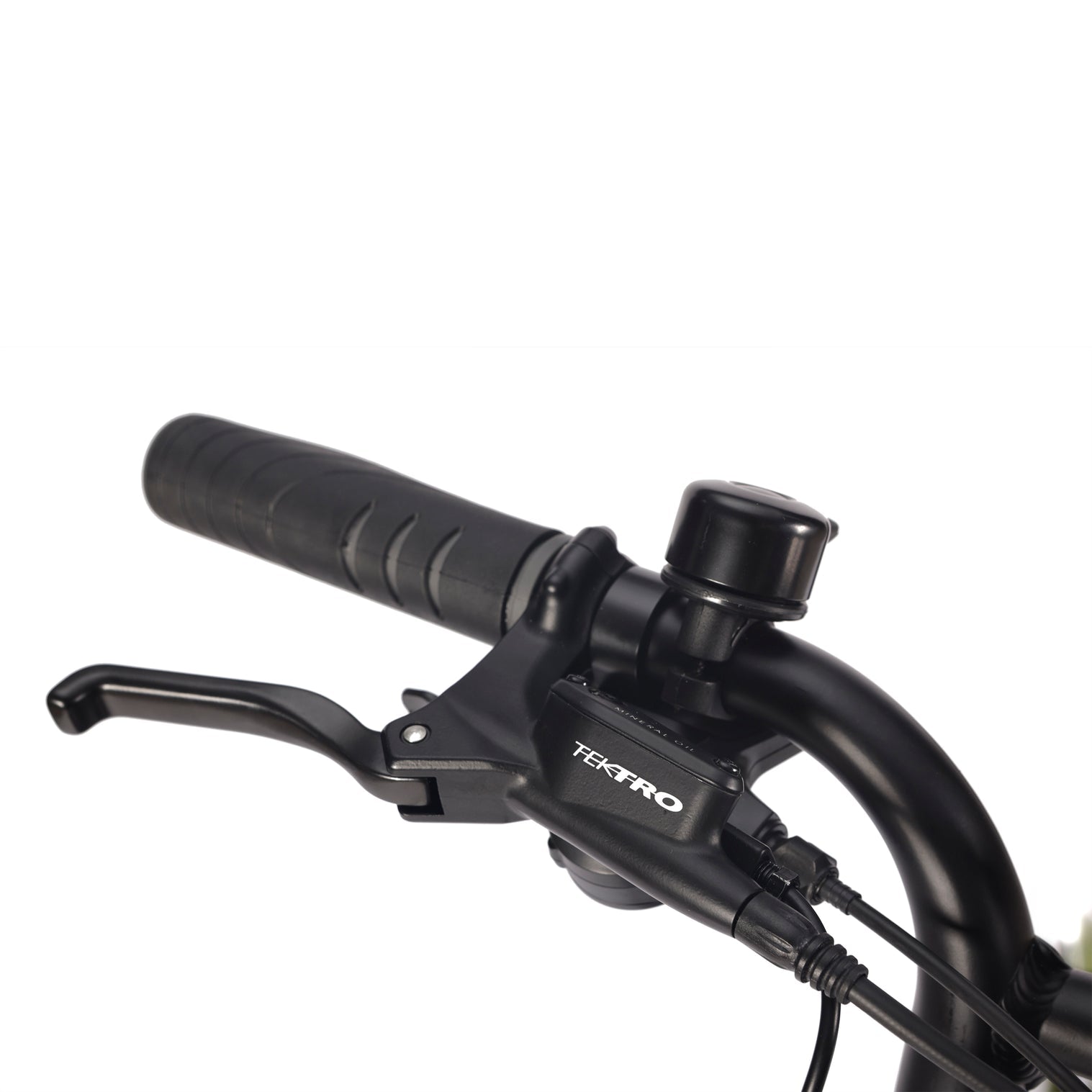

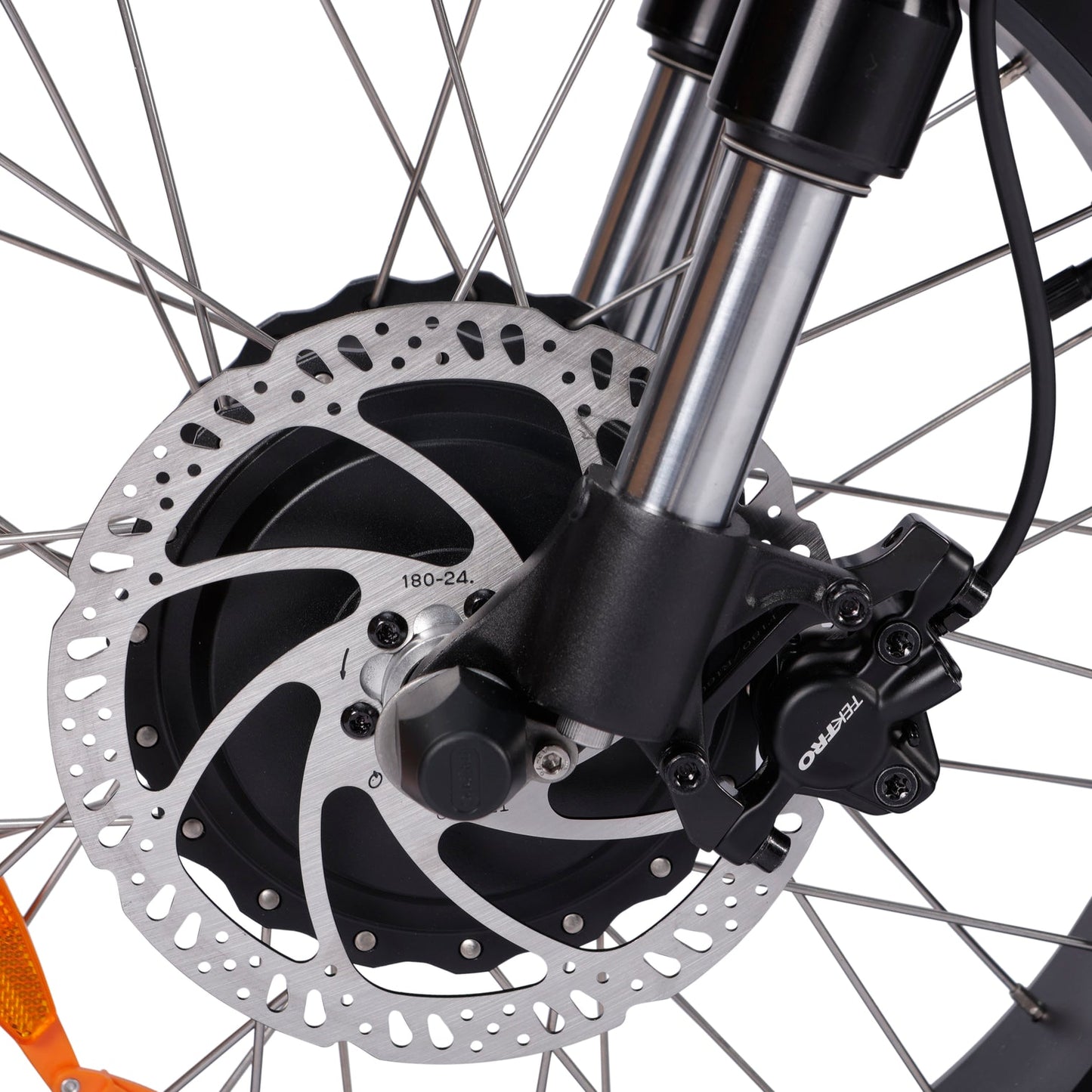

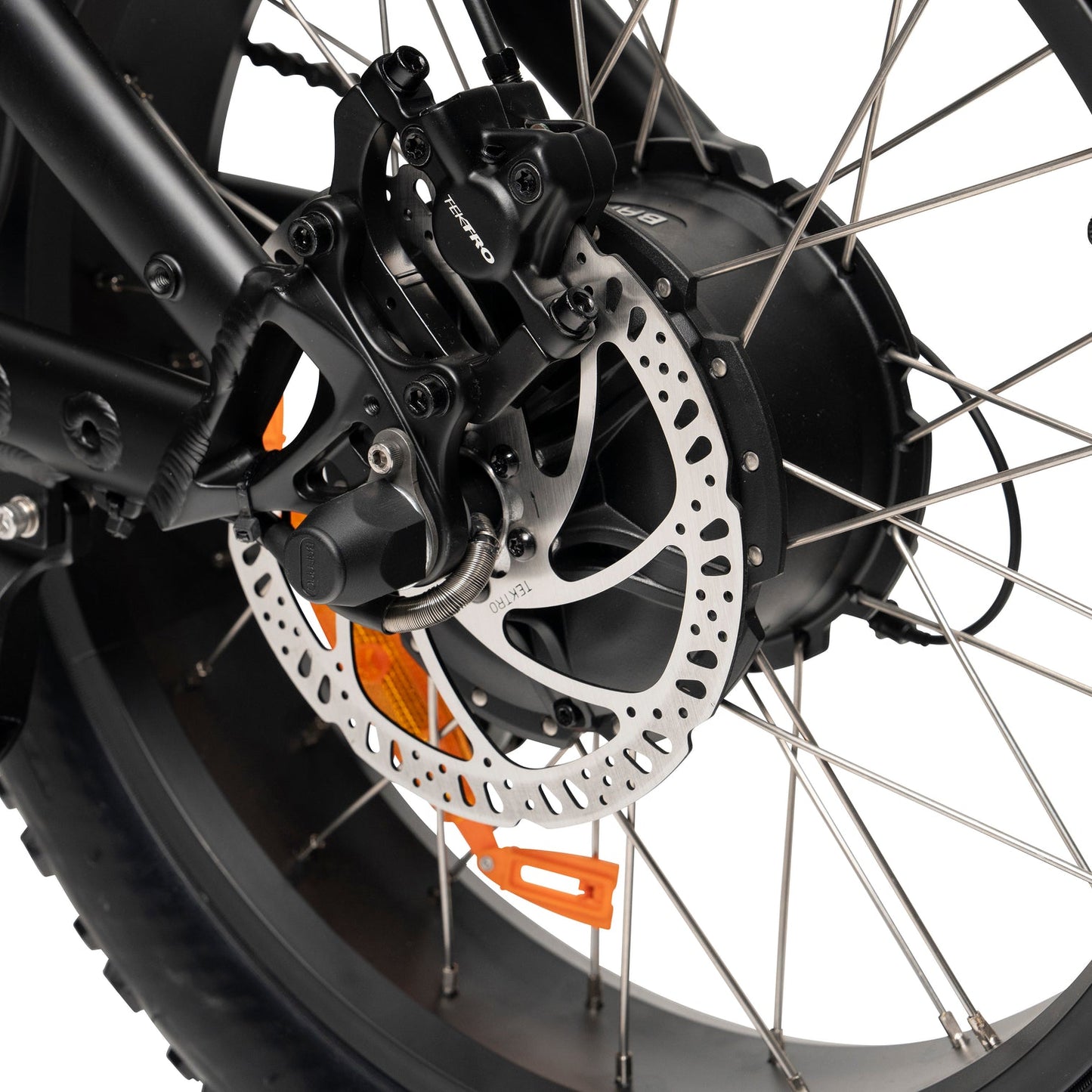

- Standard Tektro Hydraulic Disc
- Discs 180mm
- E-Brakes Yes Motor Safety Cut Off
Display

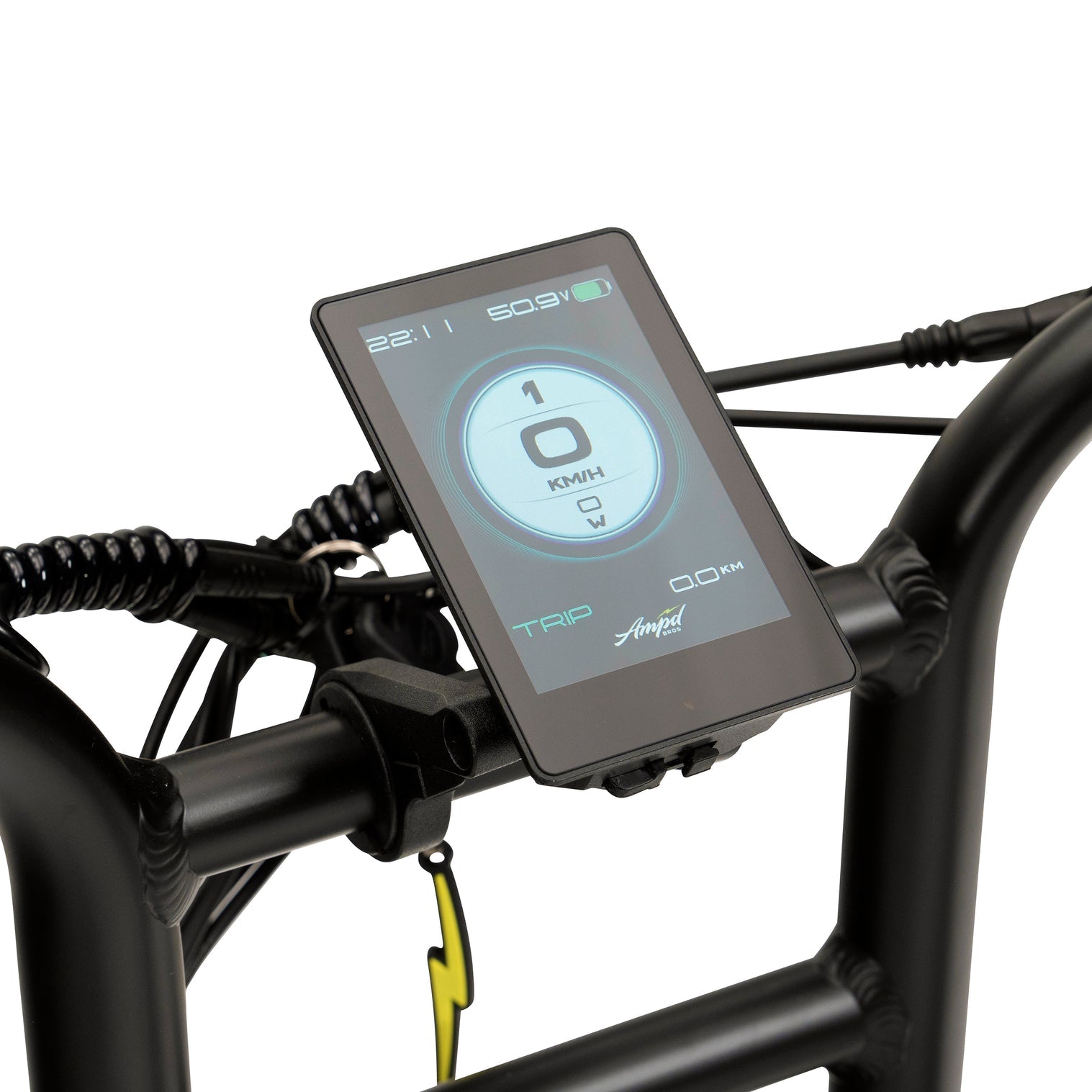

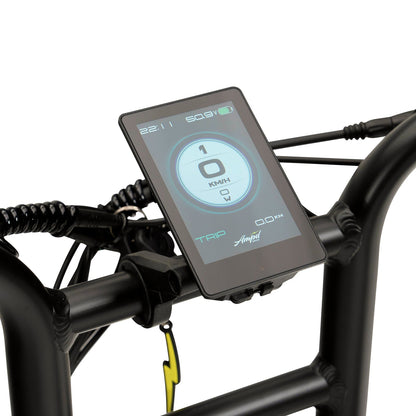

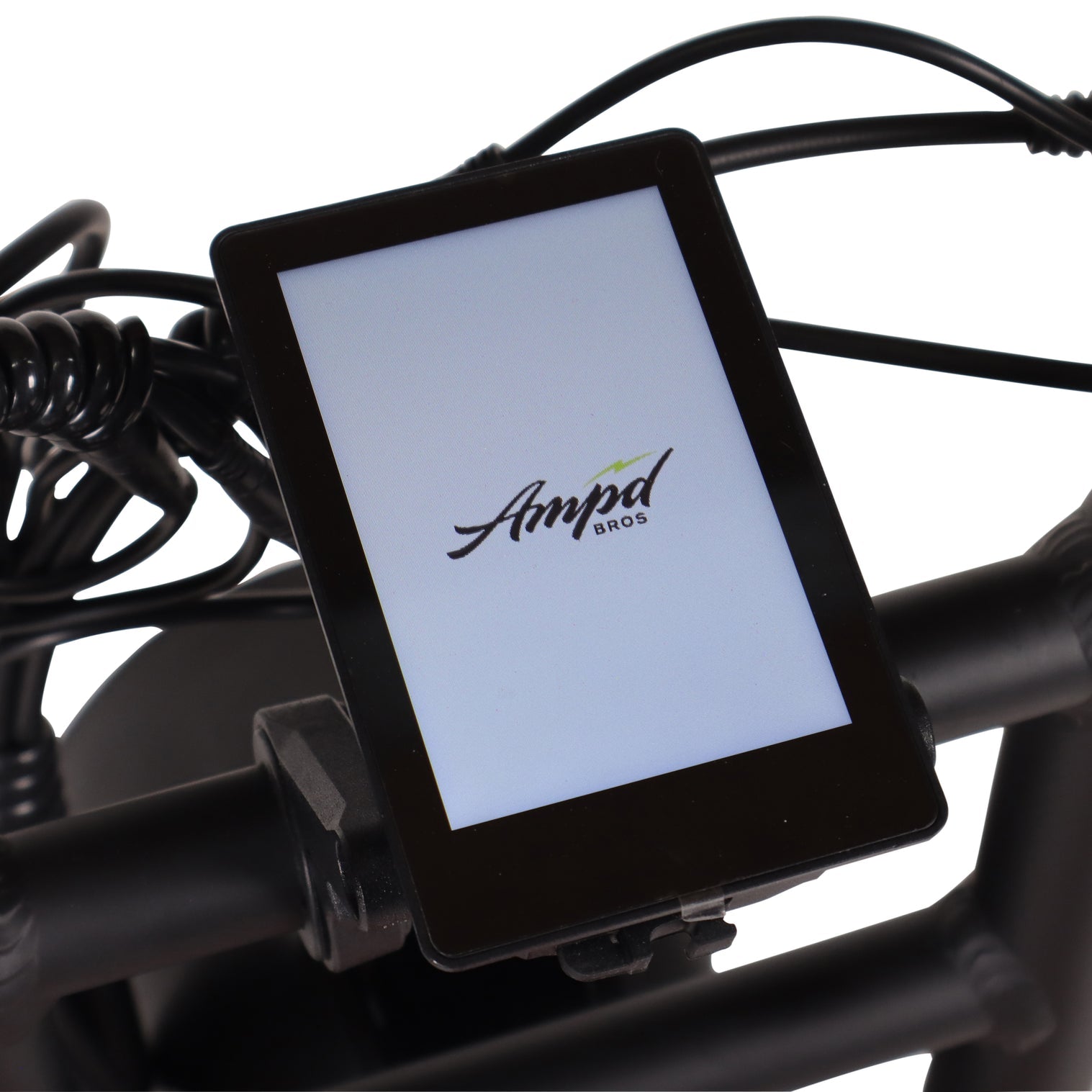

- Colour LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain

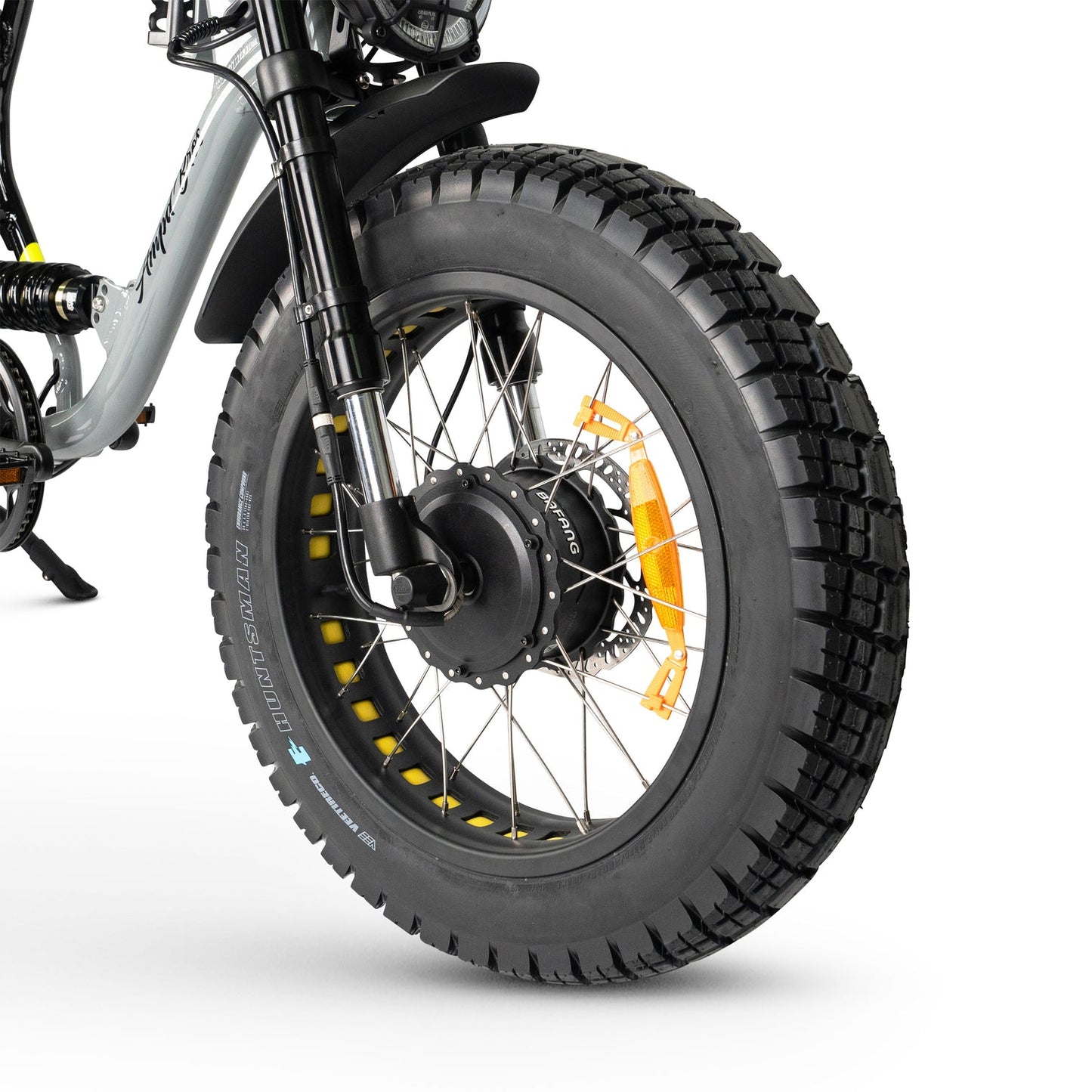

- Motor Type Bafang RMG 062D & 063D Latest Gen Hub Drive
- Ace Pro Motor Single Rear Limited to 250W (Unlocked 1,000W)
- Ace Demon Motors AWD Dual Drive Limited to 250W (Unlock to 1,000W Front & Rear - 2,000W Total)
- Ace Pro Torque High Torque 95n.m
- Ace Demon Torque High Torque 190n.m (Combined)

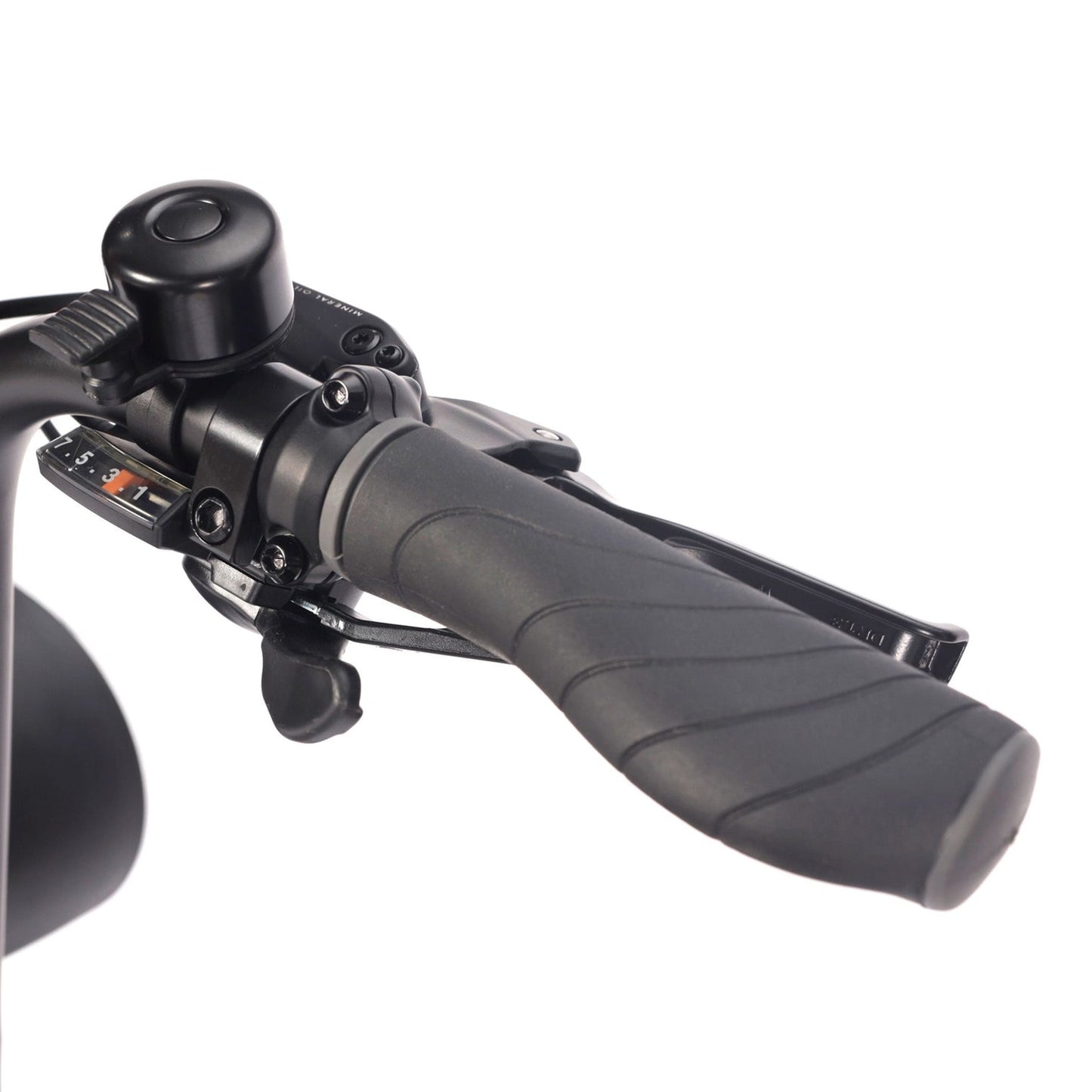

- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance
Construction

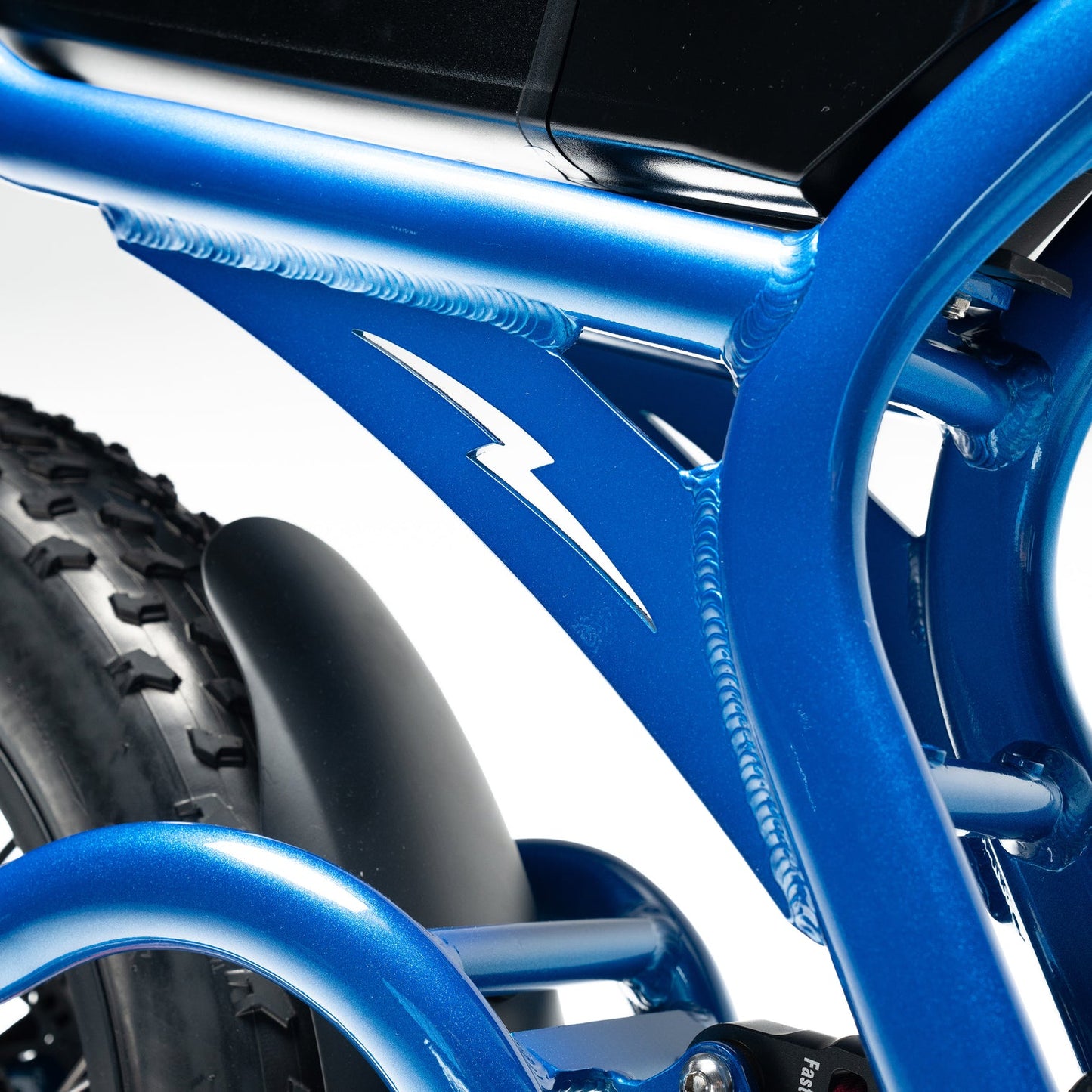

- Frame Aluminium - "X" Step Over Bar Design
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension

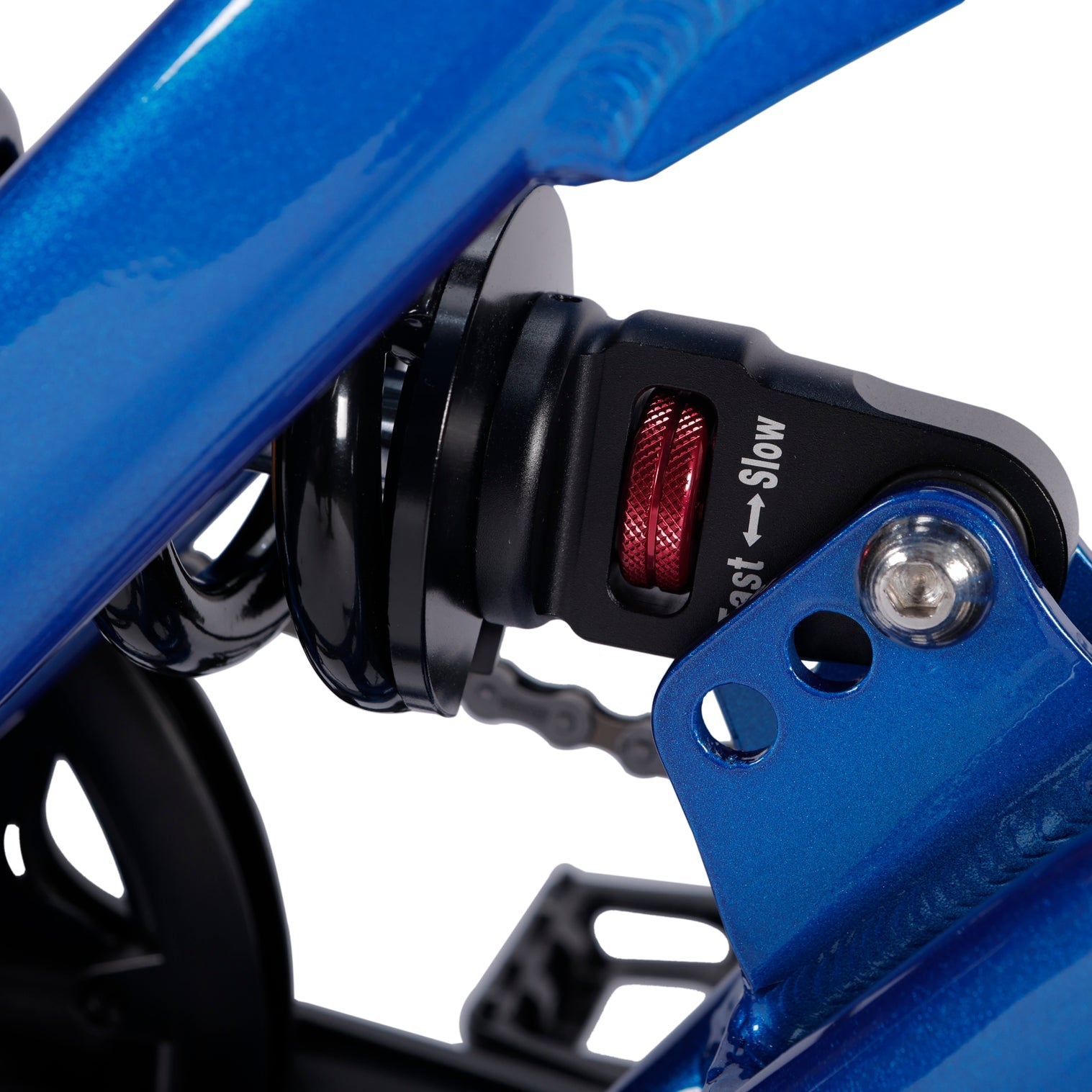

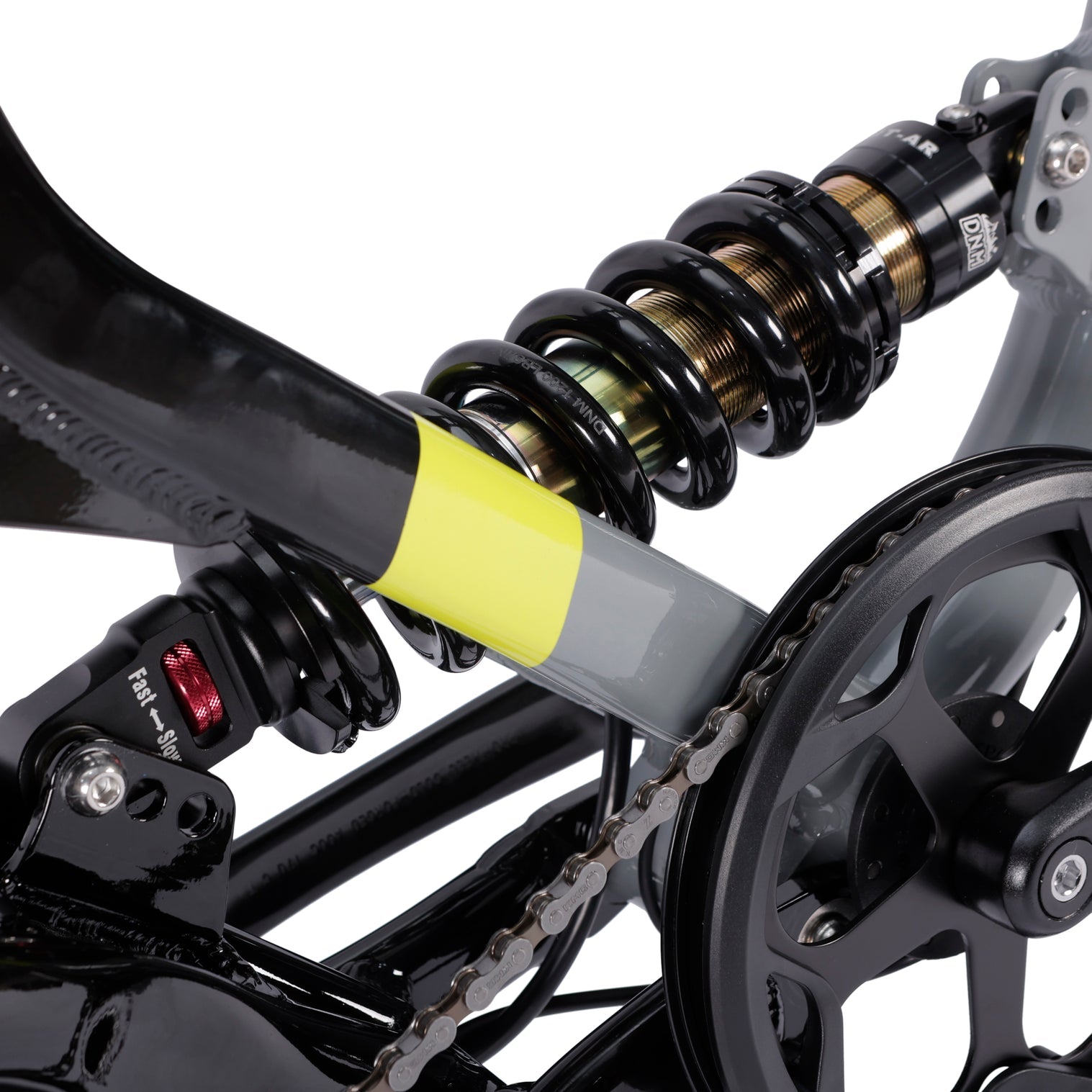

- Standard Front Independent & Rear Adjustable DNM
Wheels & Tyres

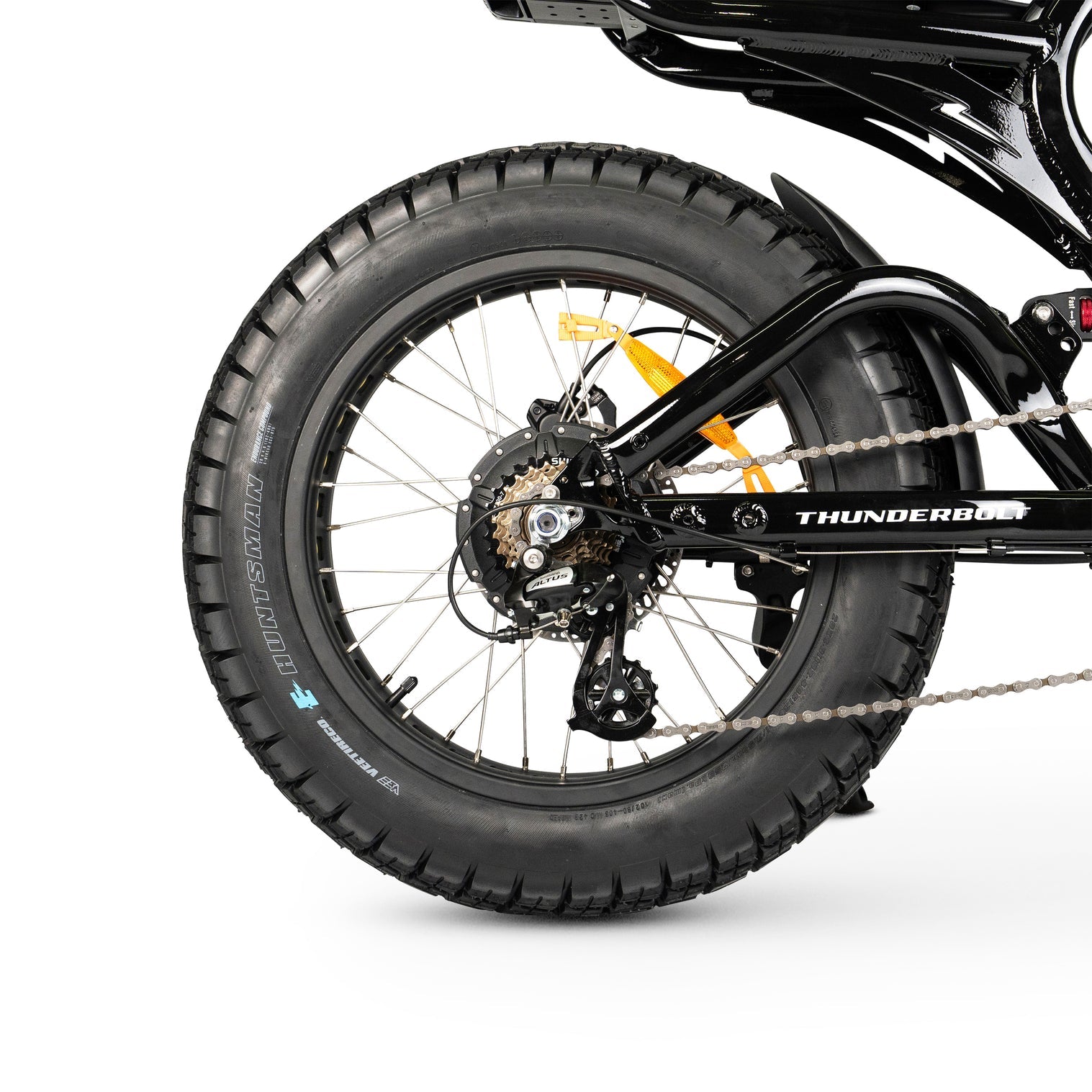

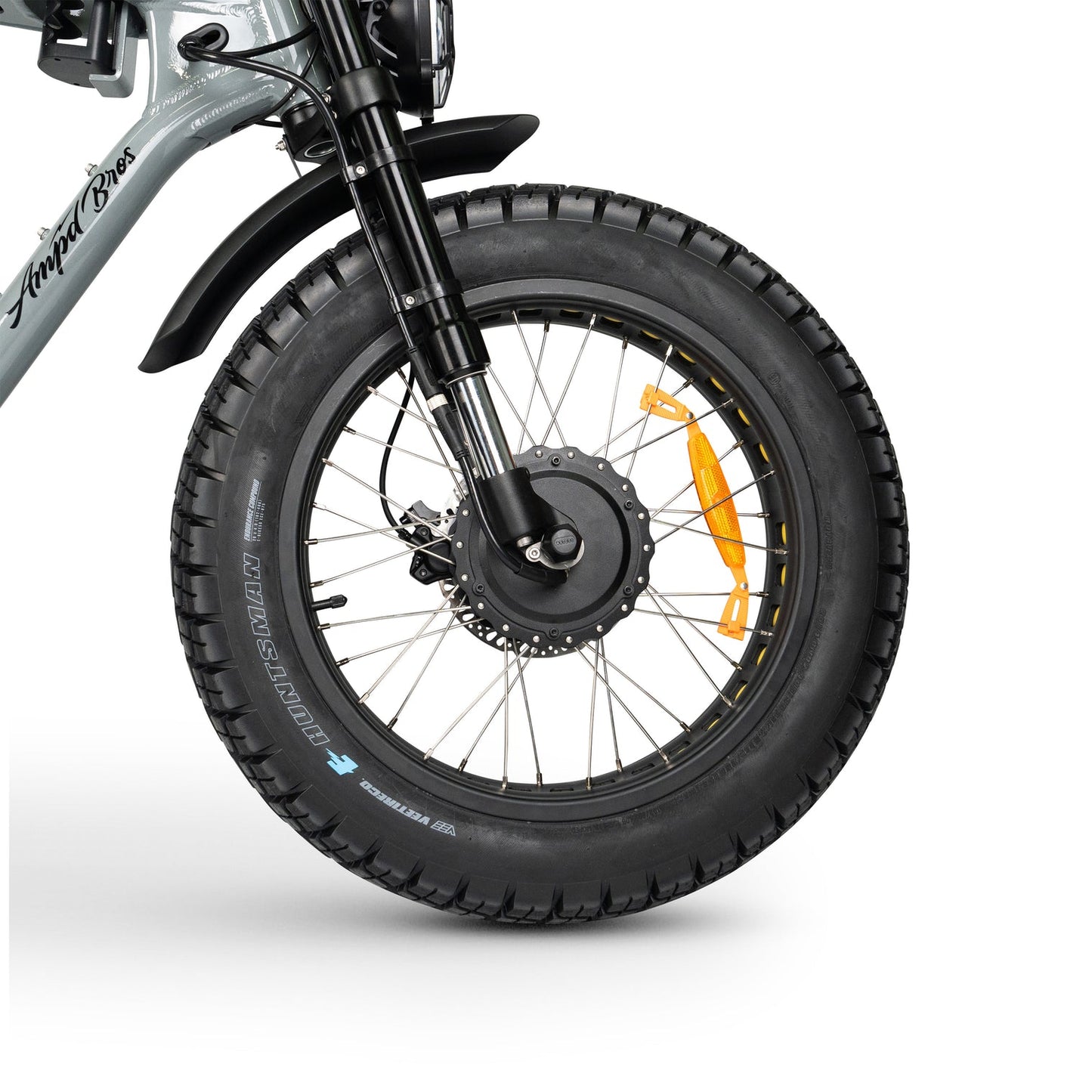

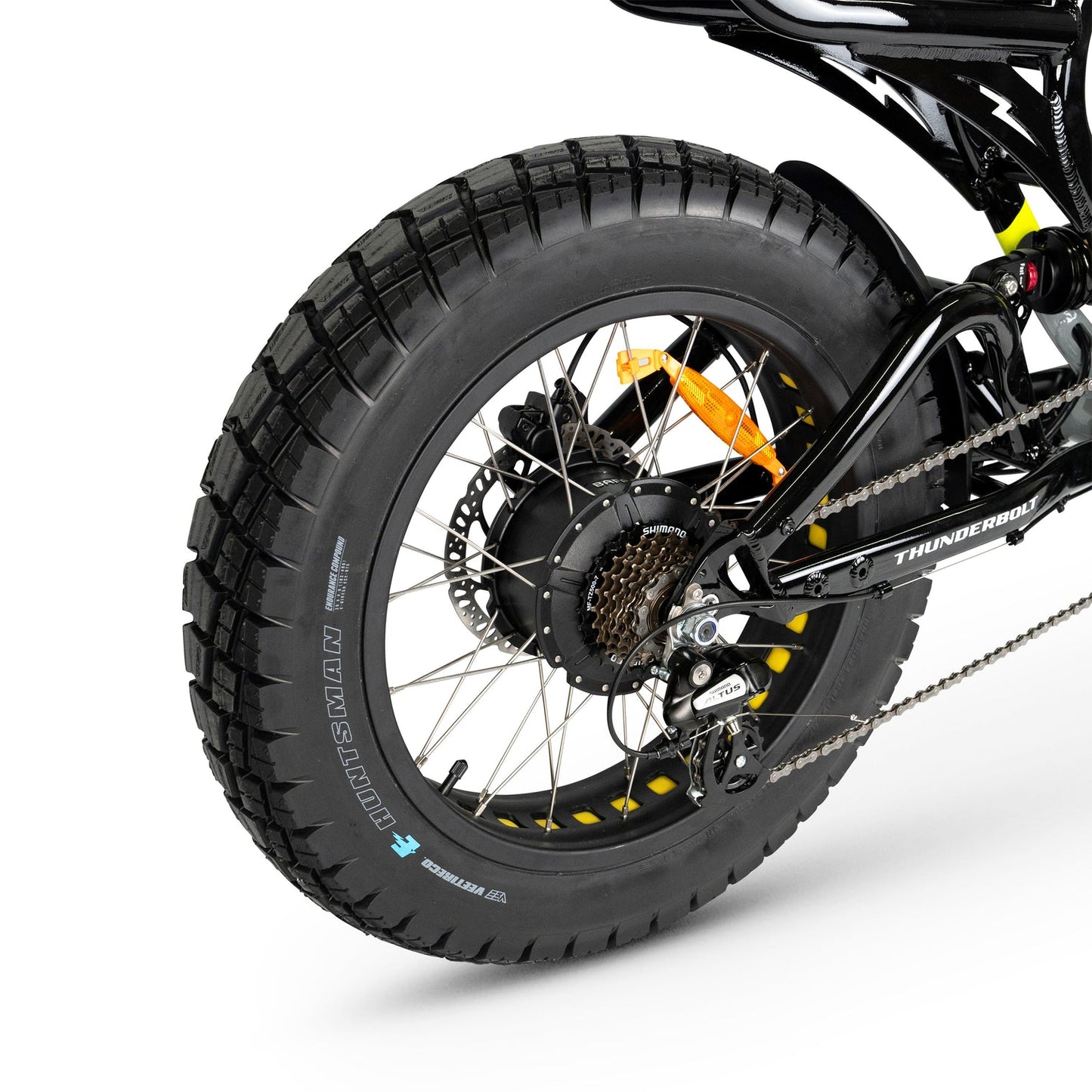

- 20x4.0" Vee Tire Huntsman Puncture Resistant All Terrain Tyres
Charging
- 8.5hrs for 25Ah Batteries with Standard 3A Included Charger

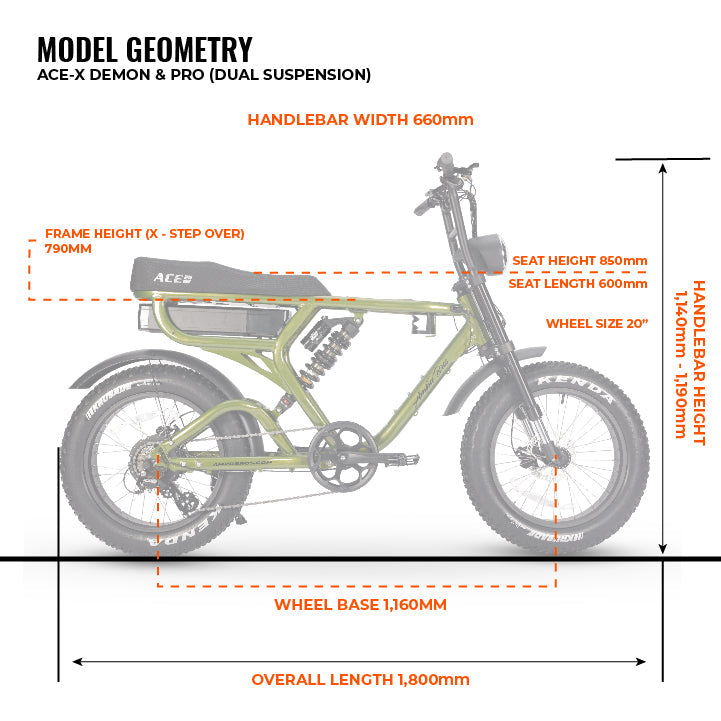

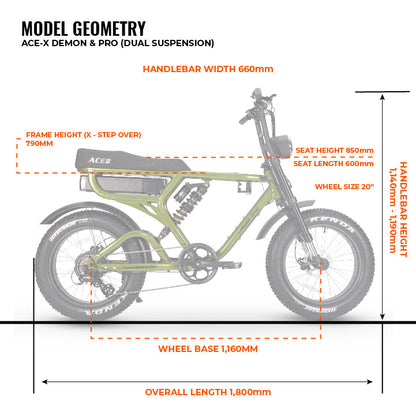

Dimensions
- Overall Length 1,800 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 880mm (Adjustable between 850-950mm)
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Weights
- N.W of 25Ah Battery 6.25 kg
- N.W of ACE Pro + Battery 44.4 kg
- N.W of ACE Demon + Battery 49 kg
- Max Loading 150 kg
Inclusions
- In Box Bike, 48V Battery, 3A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
