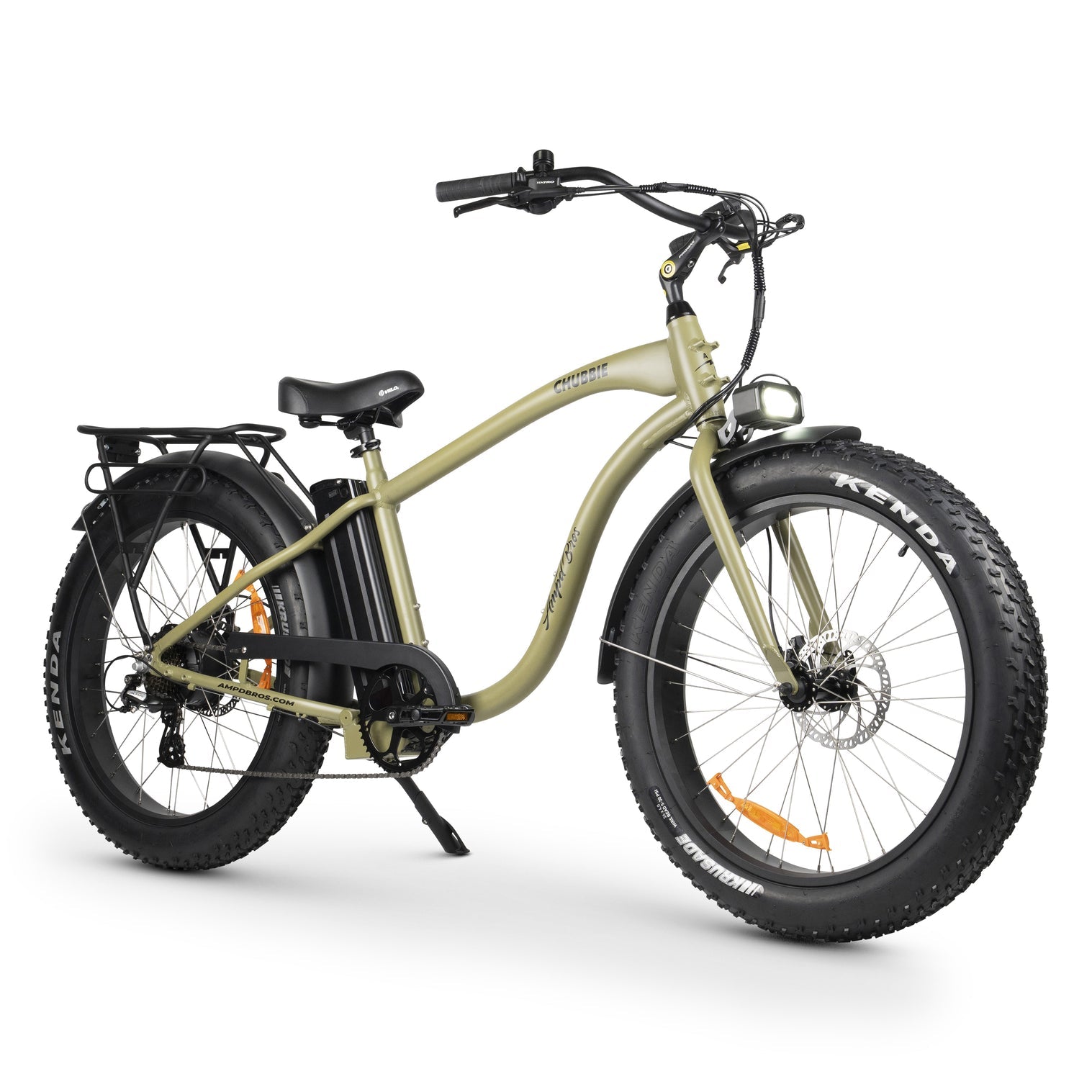

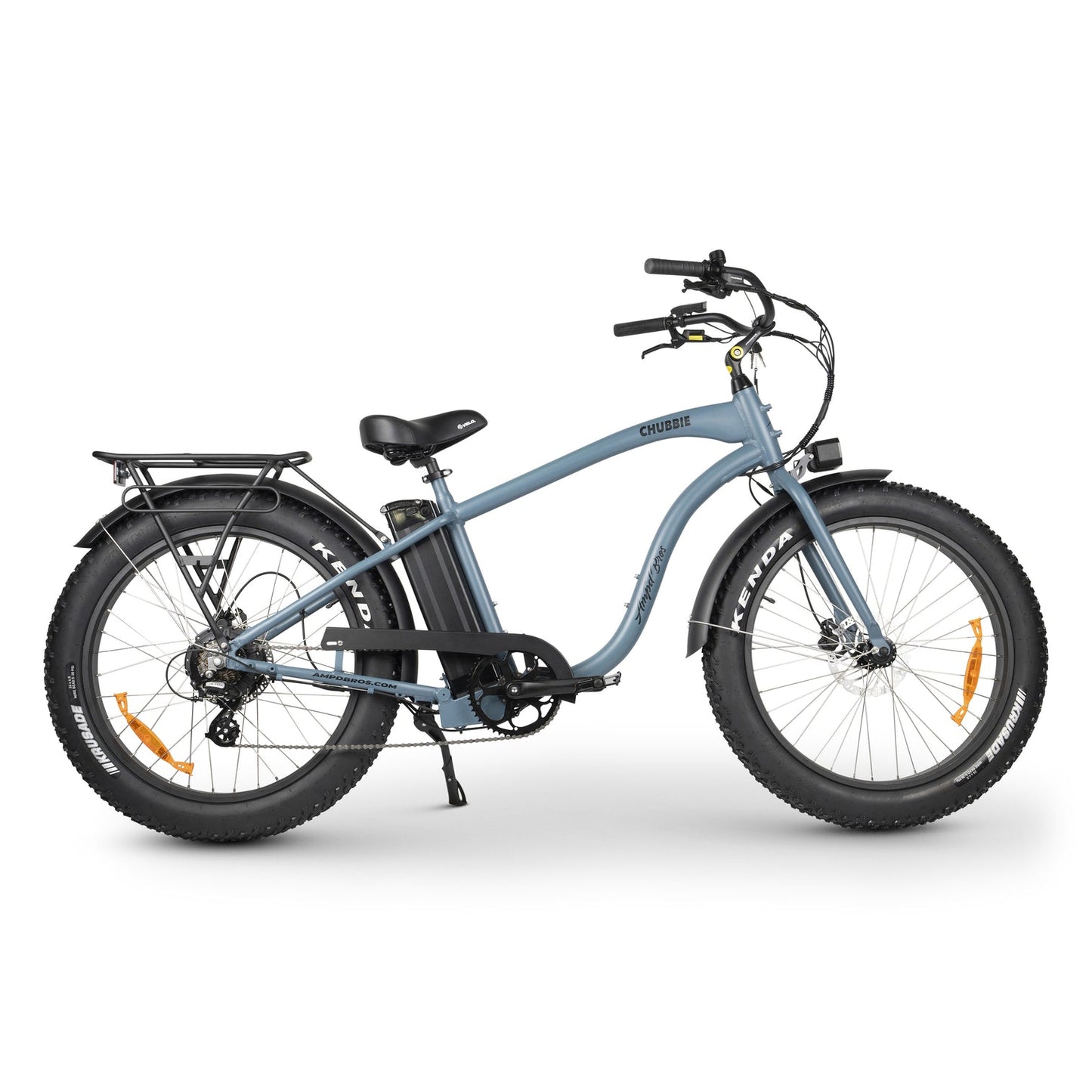

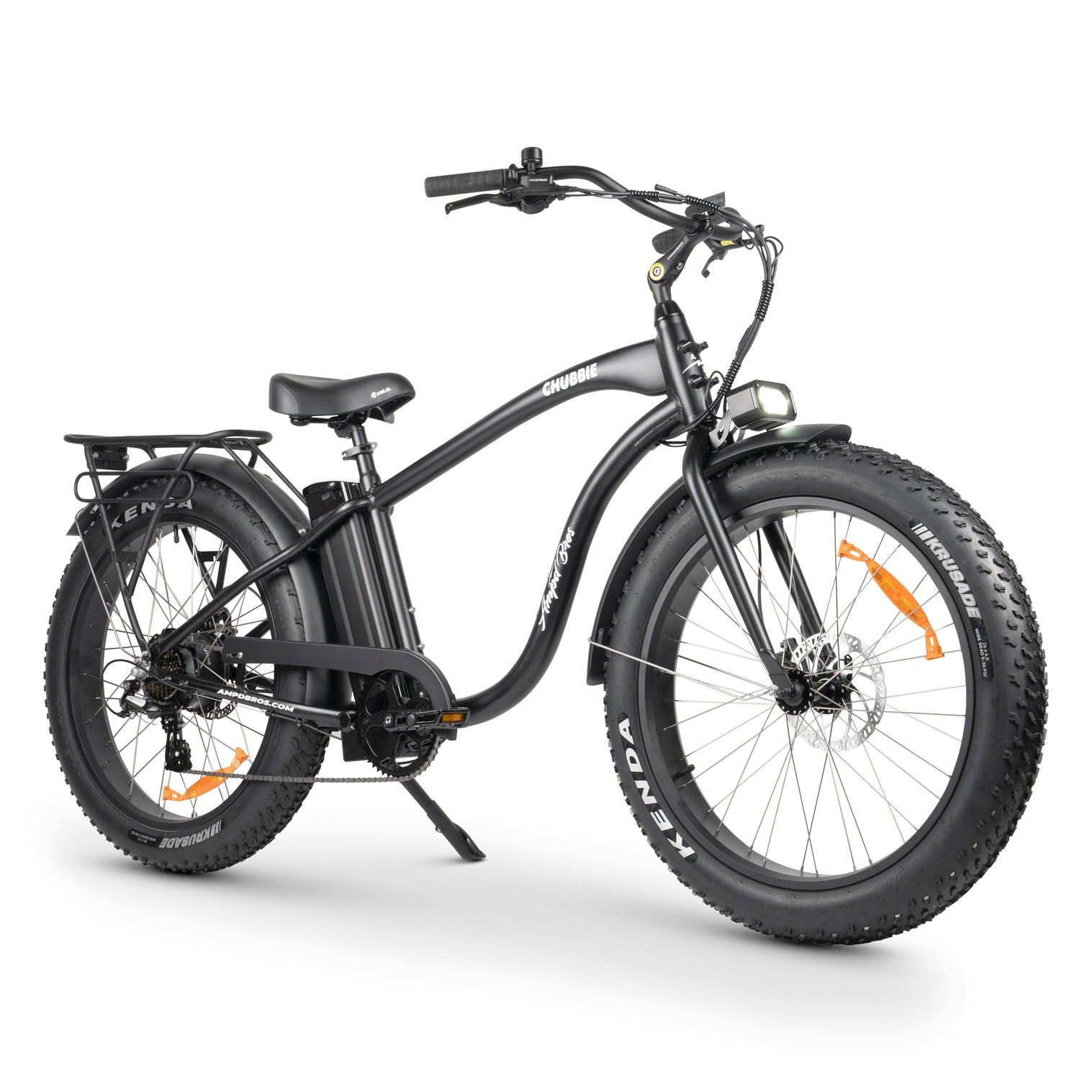

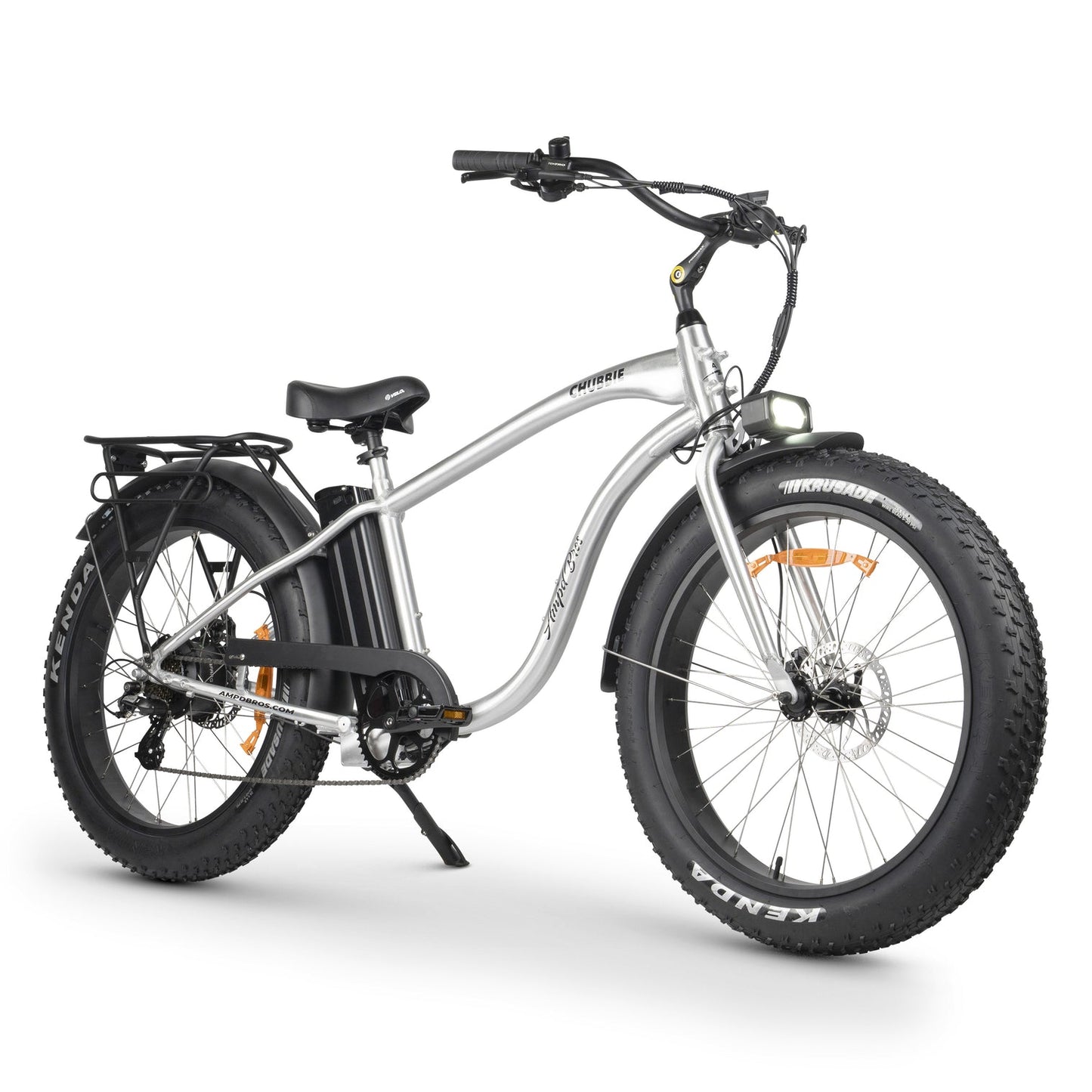

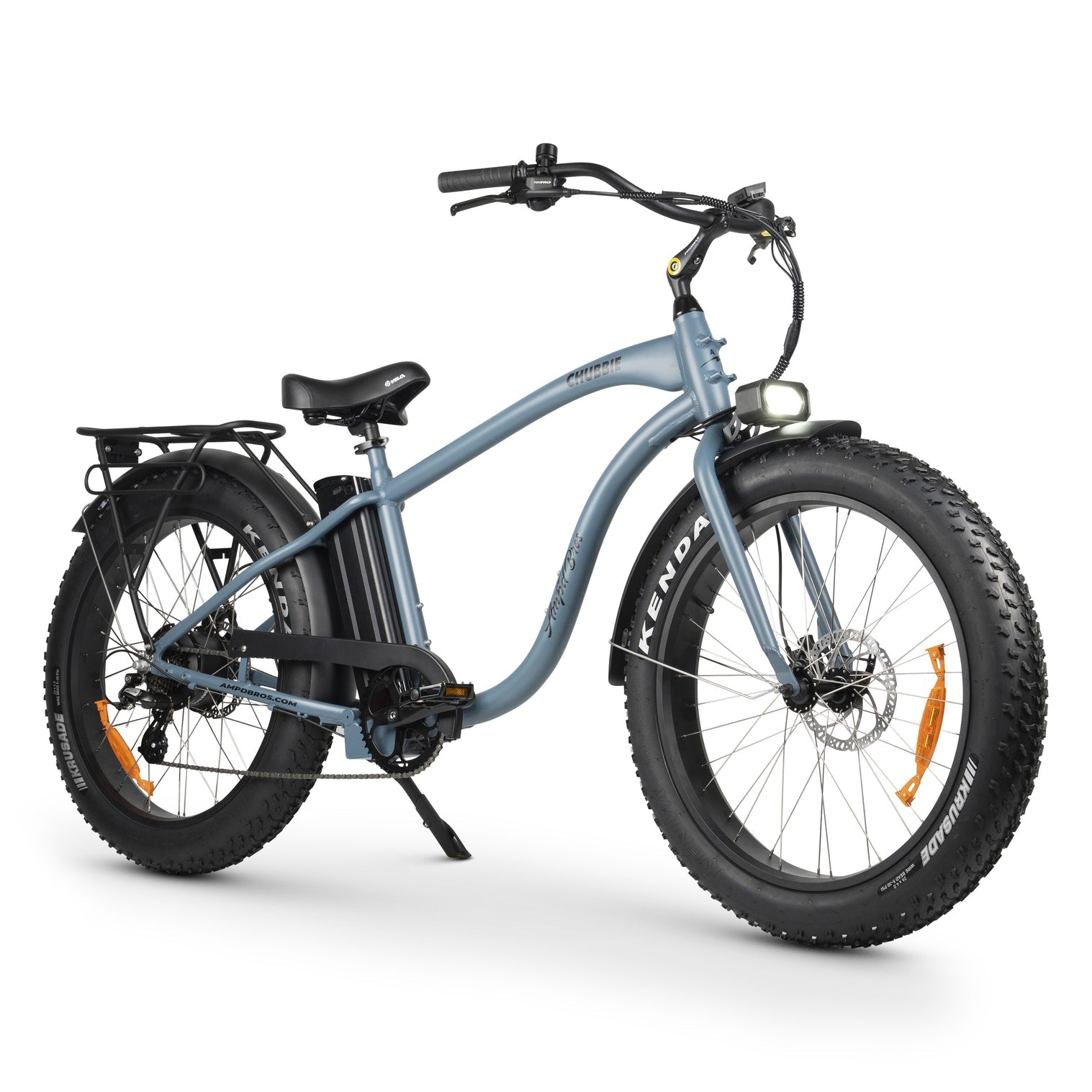

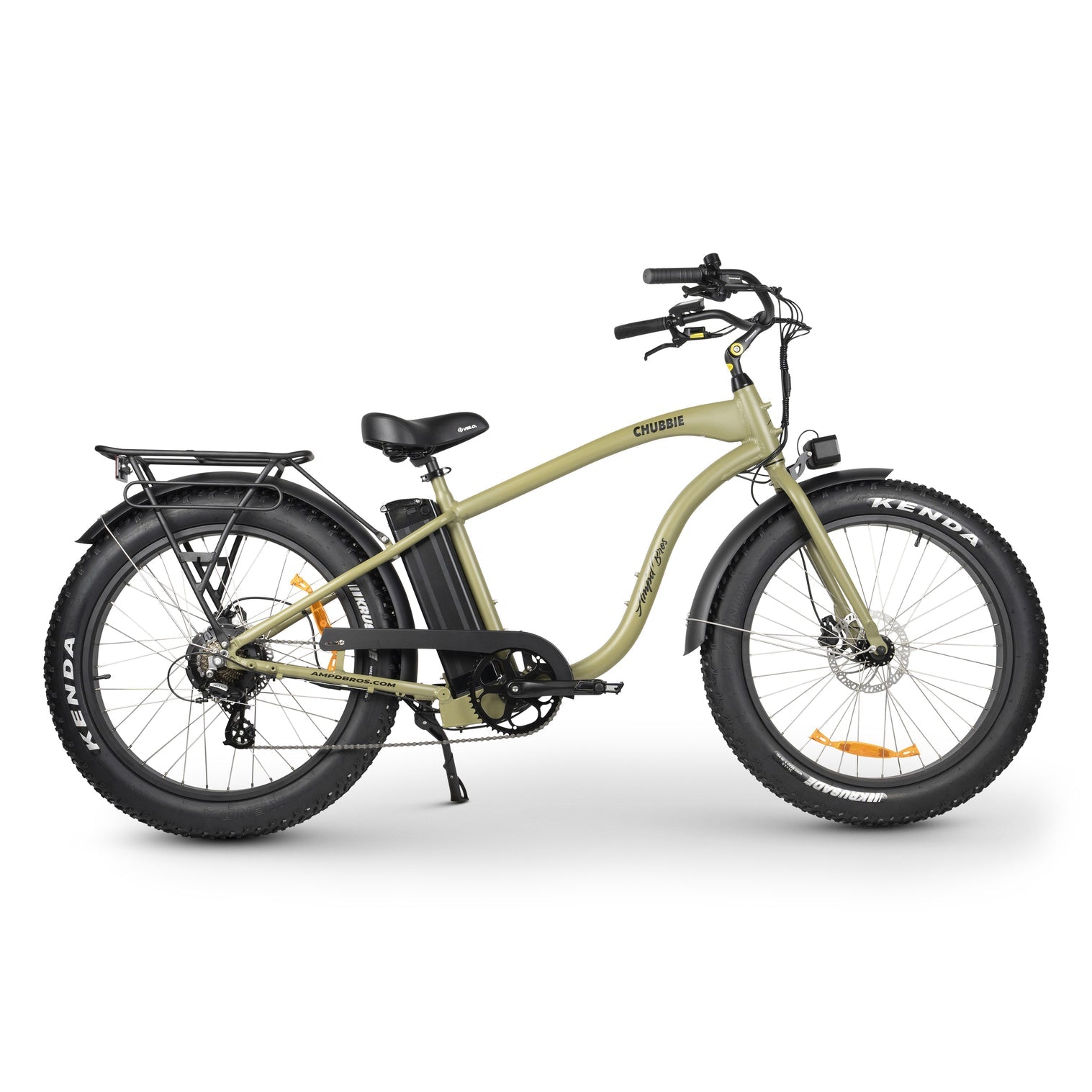

CHUBBIE CRUISERS
Speed & Range
- Range 80km
- Top Speed 25km/h (or Unlock up to 45km/h for Private Property Use)

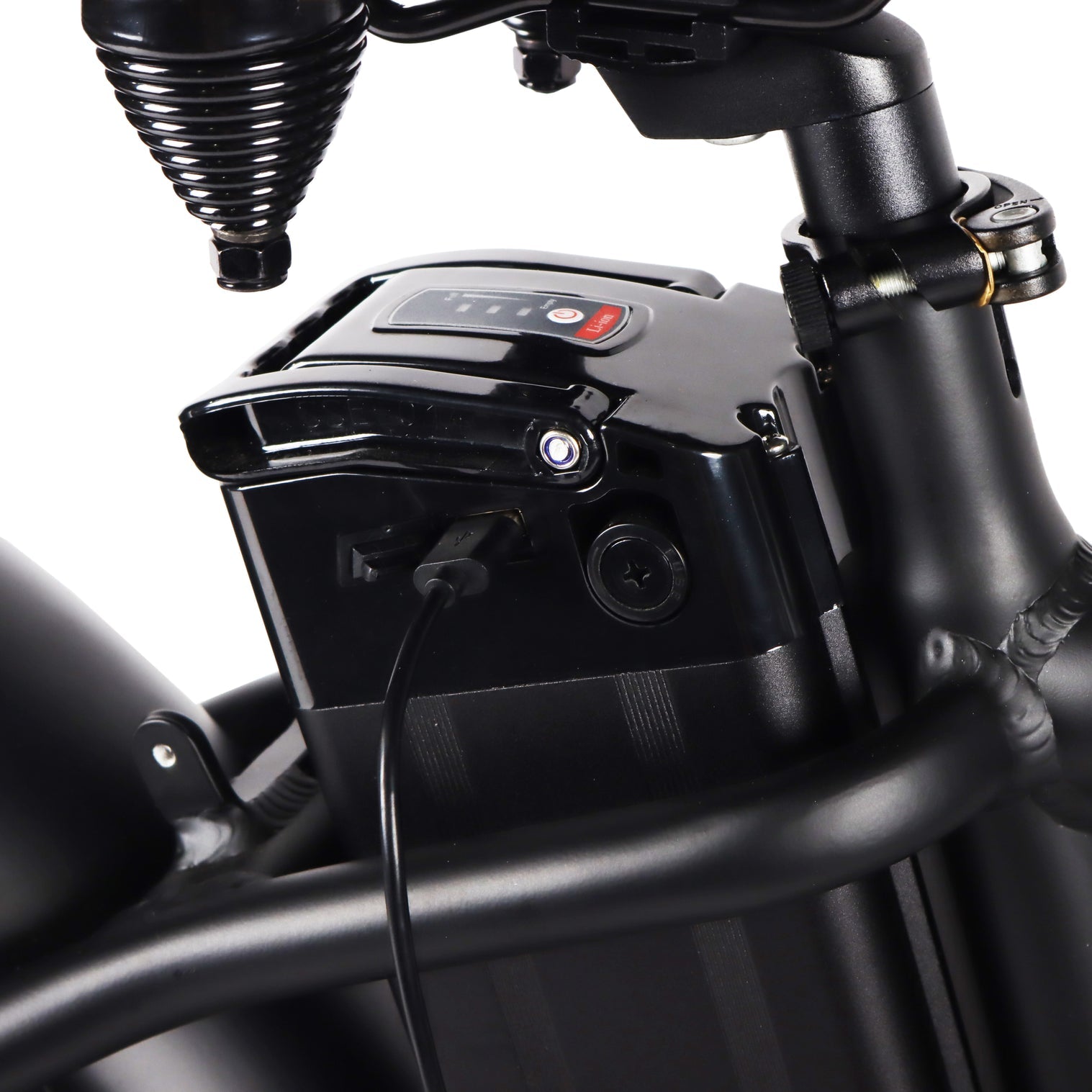

Battery

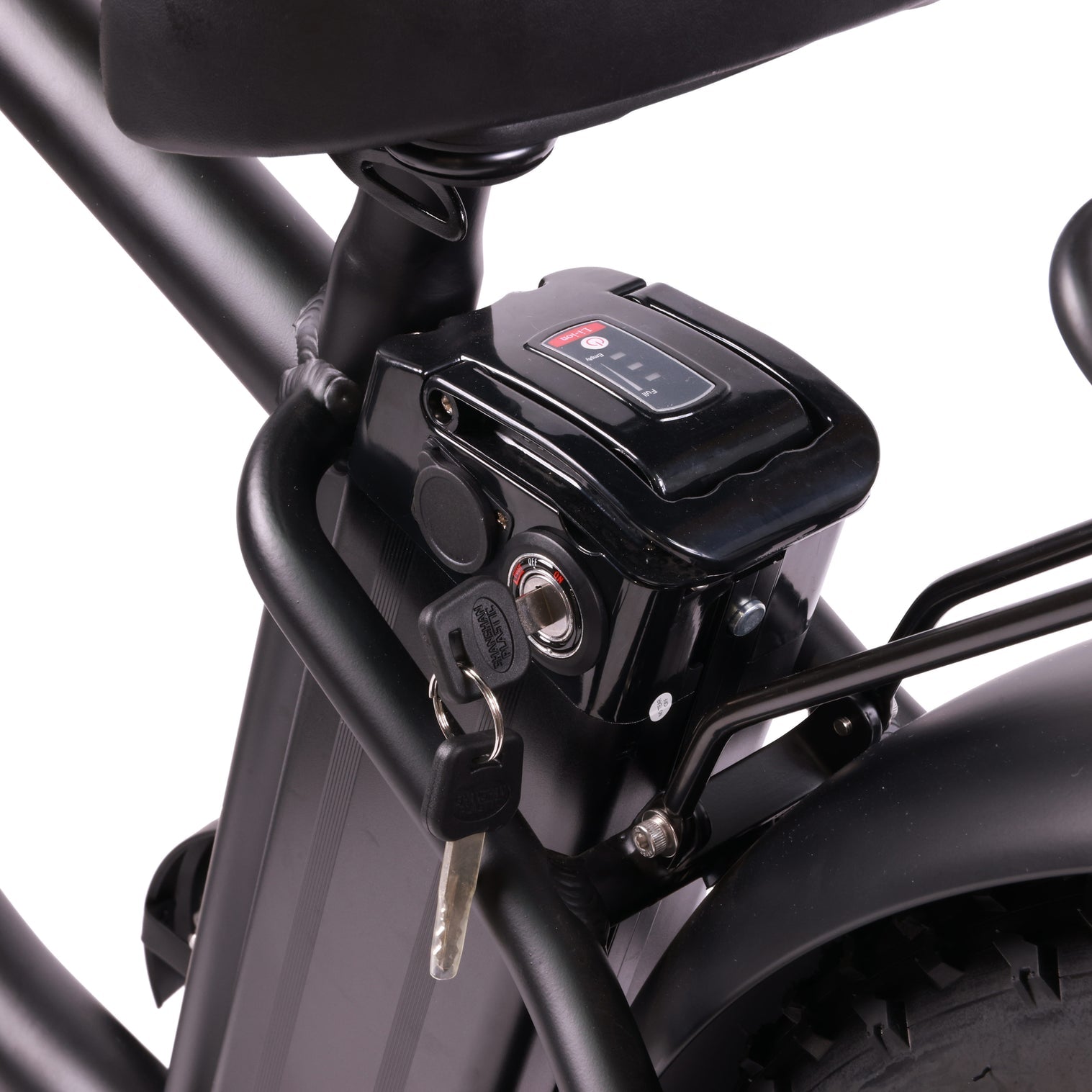

- Samsung 48V / 960Wh, 20AH Premium 21700 lithium cells.
- Battery is removable and can be charged in bike or separately.
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the off road throttle
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS

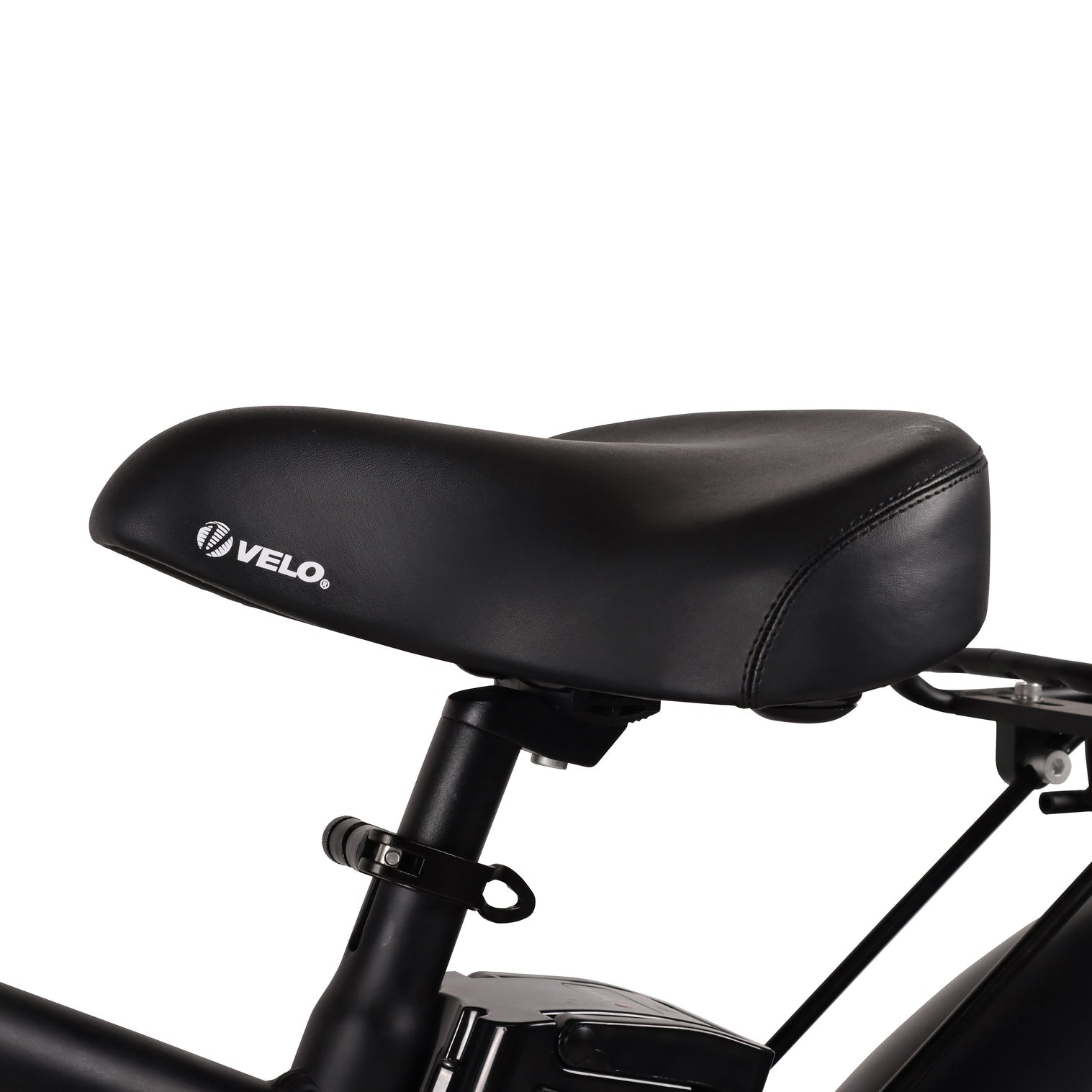

- Seat Velo Comfort Seat with Adjustable Height
- Warranty 2 Years (1 Year on Batteries)

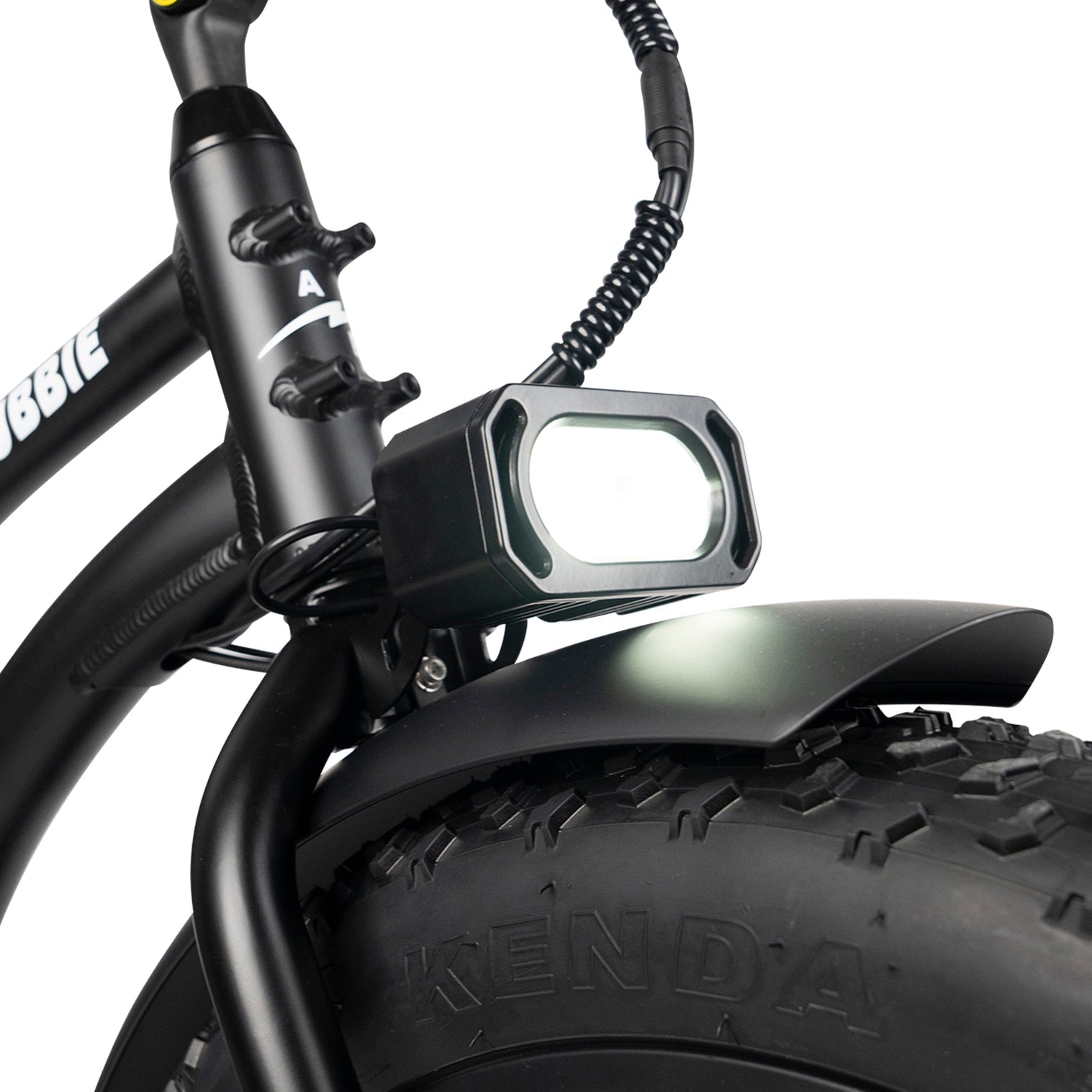

- Lights Aluminium Front 5W/100lm LED Black
- Grips Velo Wide Comfort
- Bell Yes

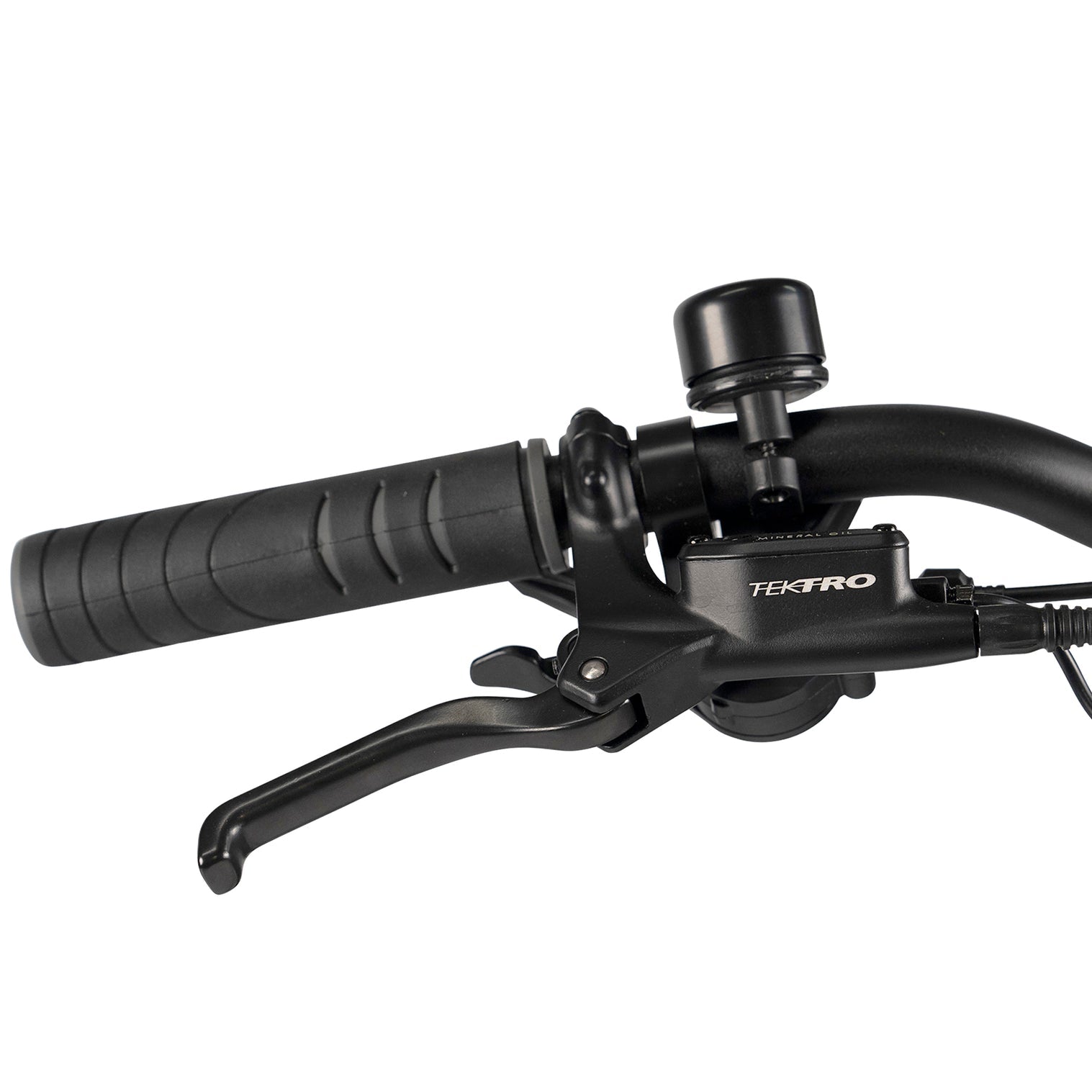

Brakes
- Front and Rear Tektro Hydraulic Disc
- Discs 180mm
- E-Brakes Yes Motor Safety Cut Off

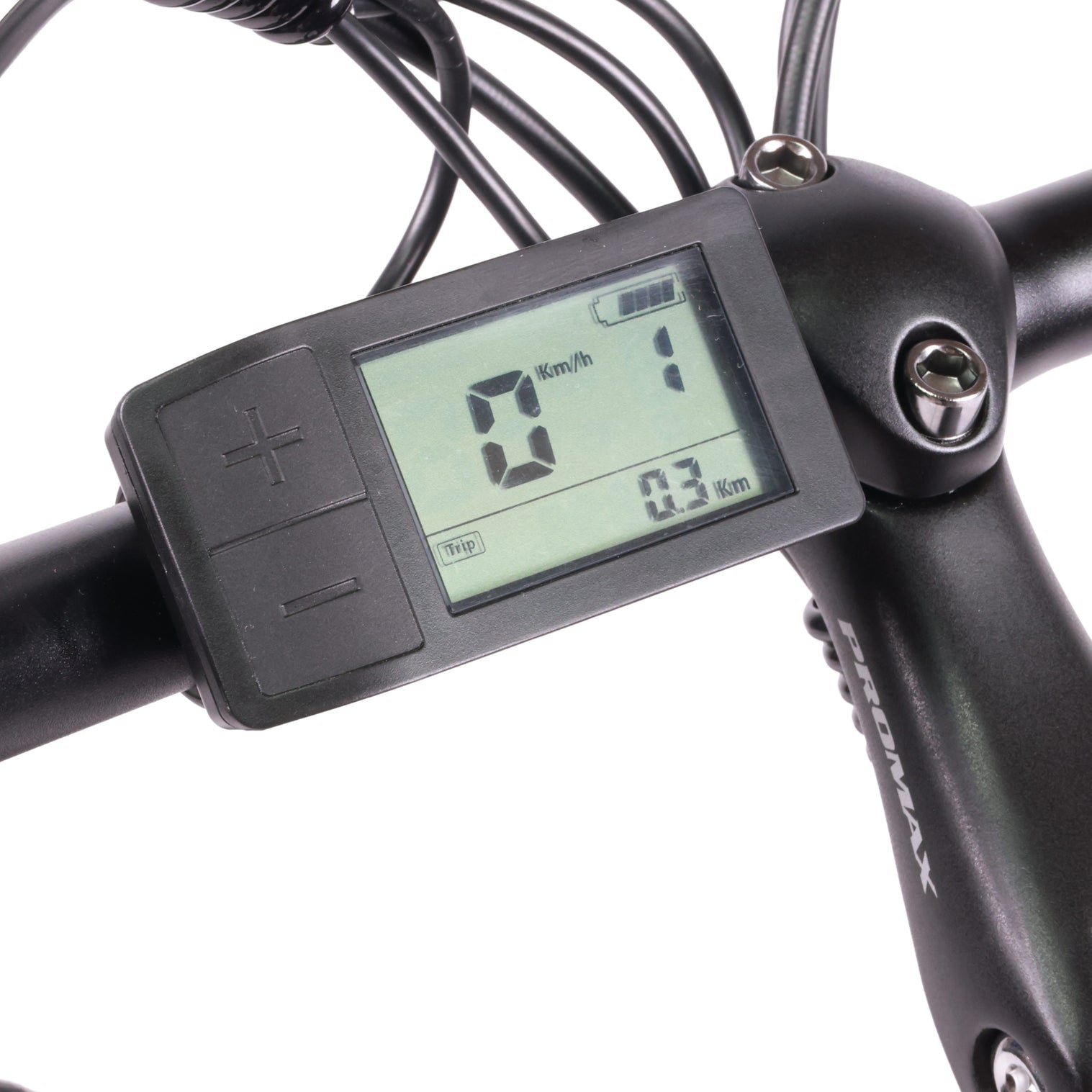

Display
- LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain

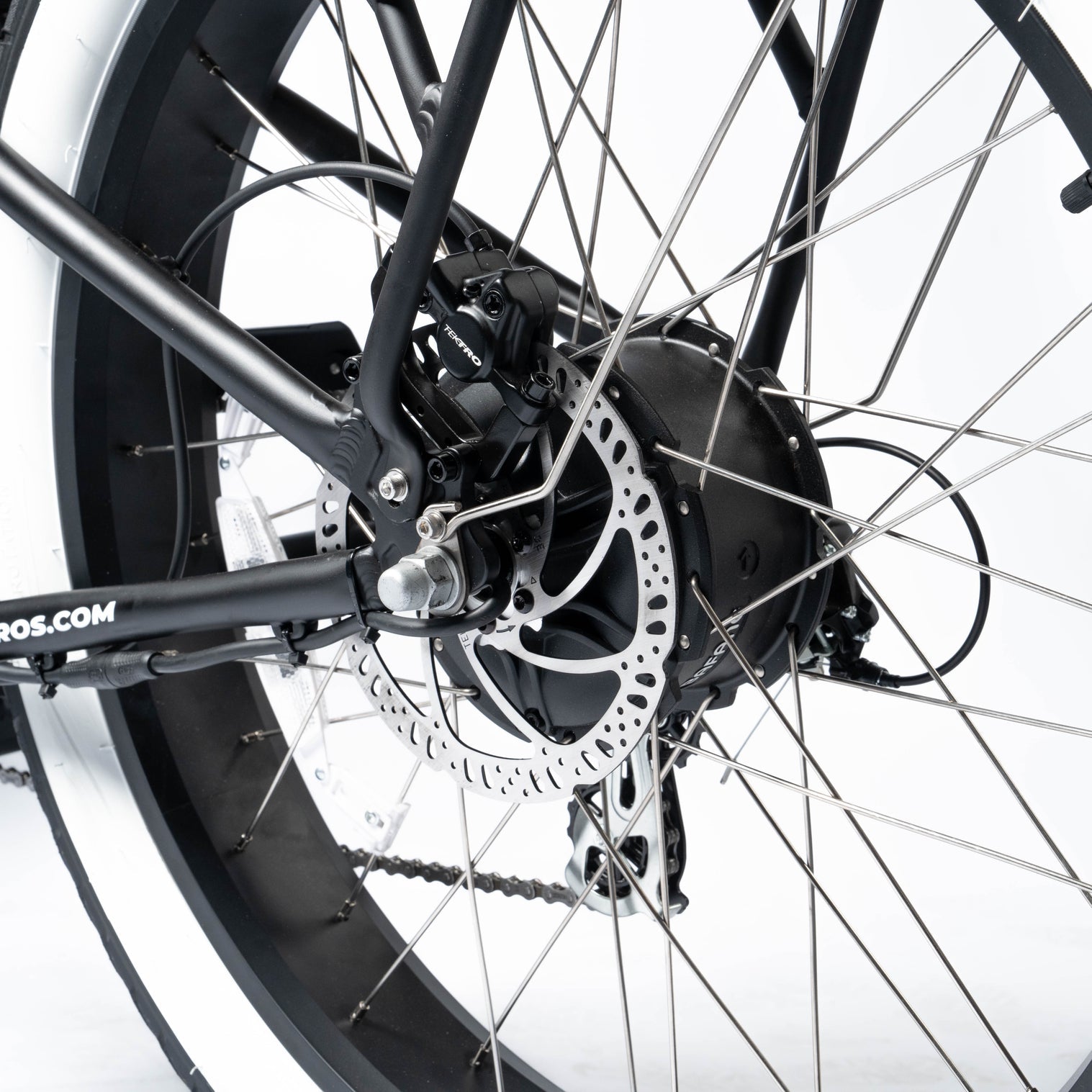

- Electric Motor Bafang RMG060 Rear Hub Drive
- Power Output 250W Limited - Can be Unlocked to 750W for Off Road Private Property Use.
- Max Torque 80n.m

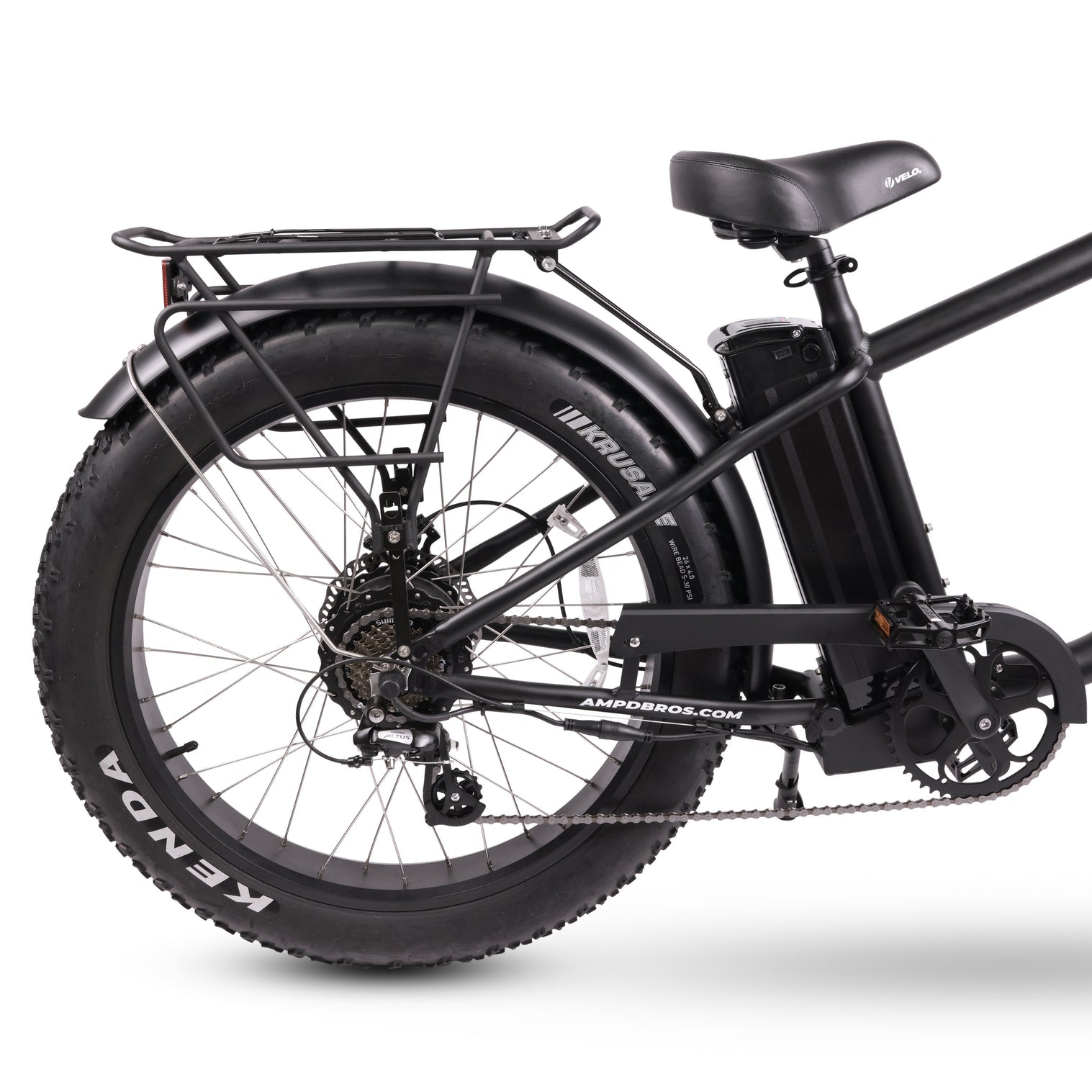

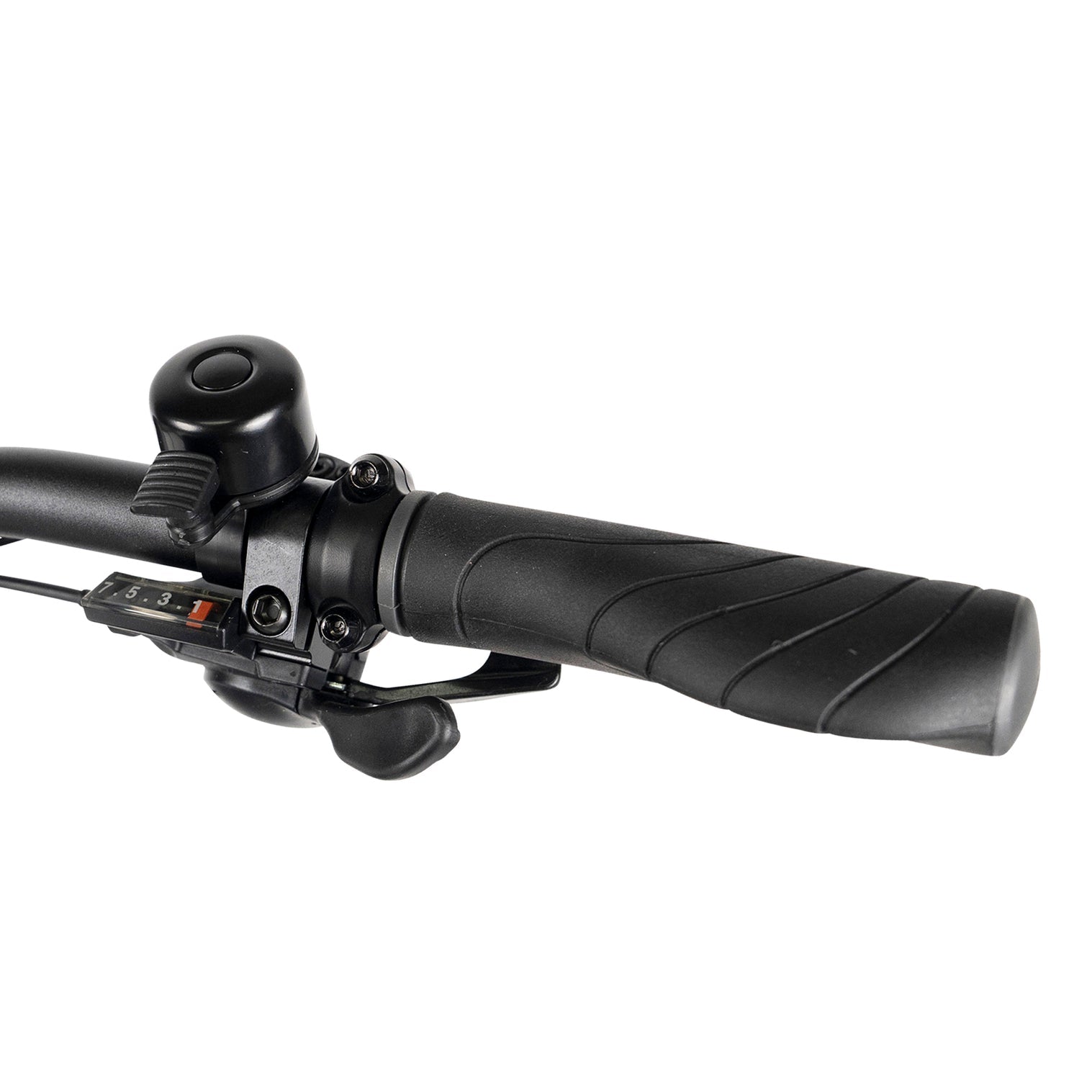

- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance
Construction
- Frame Aluminium - Step Over or Step Through Low Bar Designs

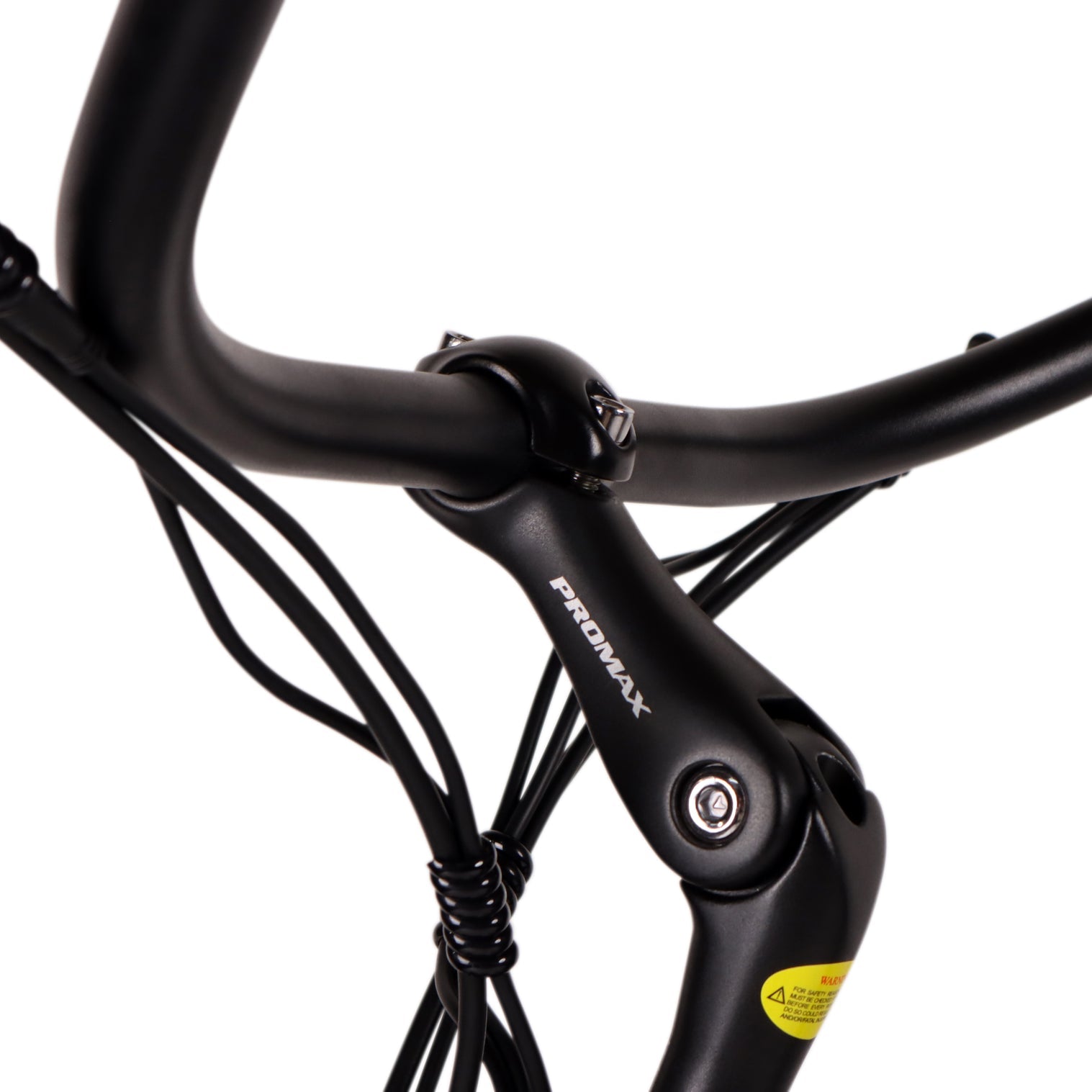

- Handlebars Aluminium with Promax Adjustable Stem
Suspension
- N/A - Can be optioned with Promax Suspension Seat Post for maximum comfort
Wheels & Tyres
- 26x4.0" Kenda Krusade Fat Mud Tyres (Varies by Model)
- 26x4.0" Compass Street Fat Tyres (Varies by Model)
Charging
- 6-7hrs with Standard 3A Included Charger
- Optional 5A Fast Charger Available

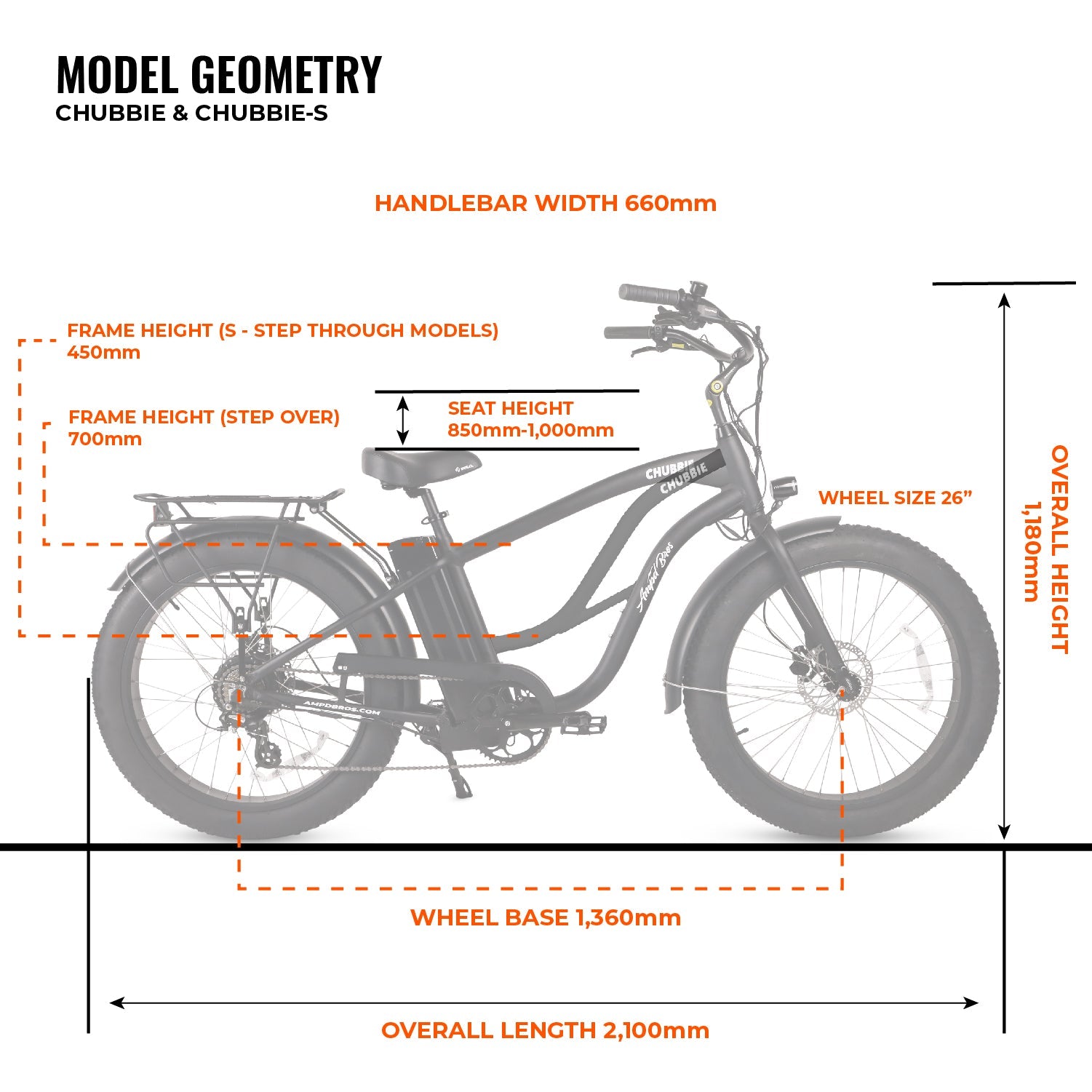

Dimensions
- Overall Length 2,100 mm
- Handlebar Height 1,180mm
- Handlebar Width 660mm
- Seat Height 850-1,000mm Adjustable
- Ground Clearance 230 mm
- Wheel Base 1,360 mm
- Rider Height Ideal for Riders up to 210cm Tall
Weights
- N.W of Battery 3.73kg
- N.W of Bike 38 kg
- Max Loading 120 kg
Inclusions

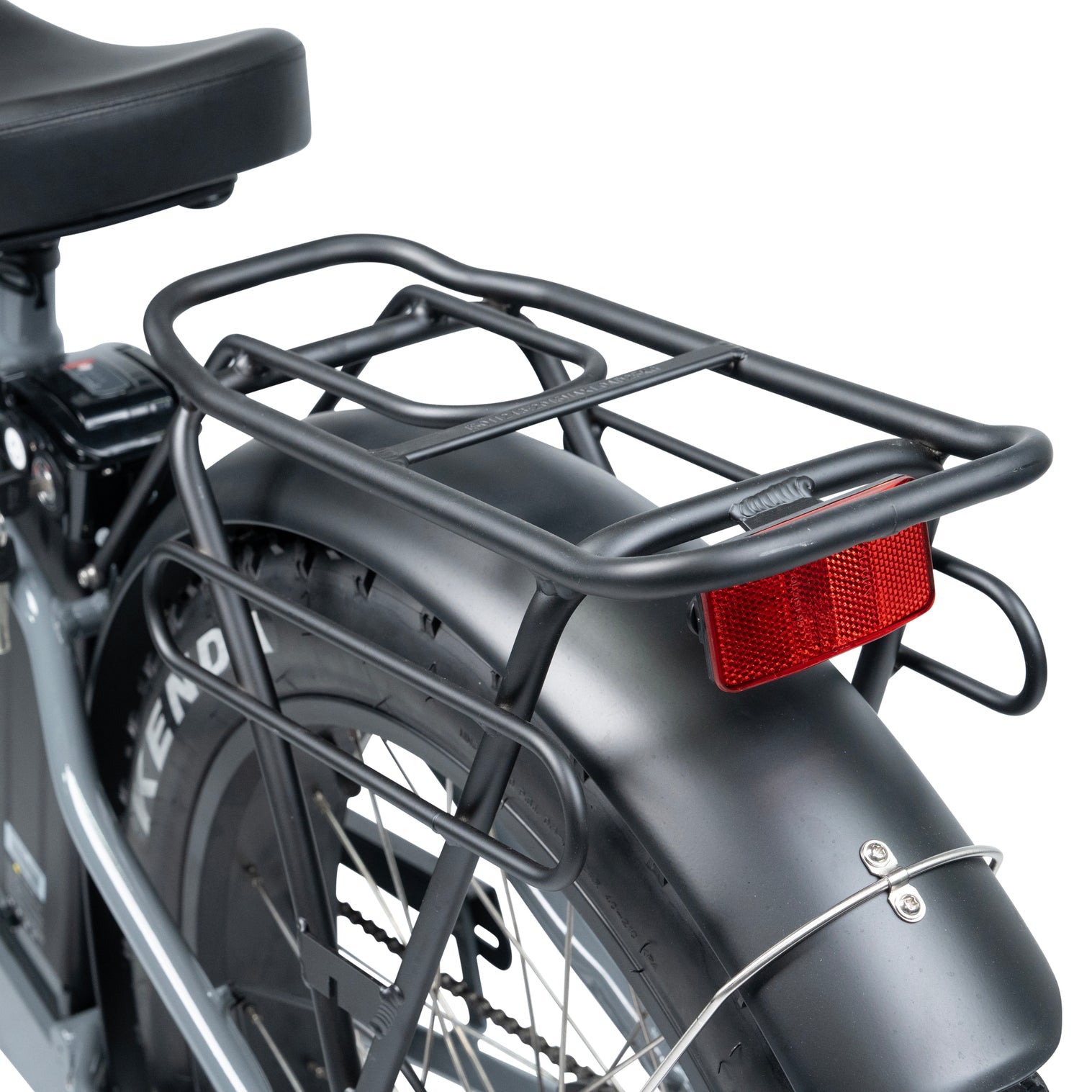

- In Box Bike, 48V Battery, 2A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Rear Cargo Rack, Seat & Kick Stand
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
