48V 16Ah 768Wh Battery

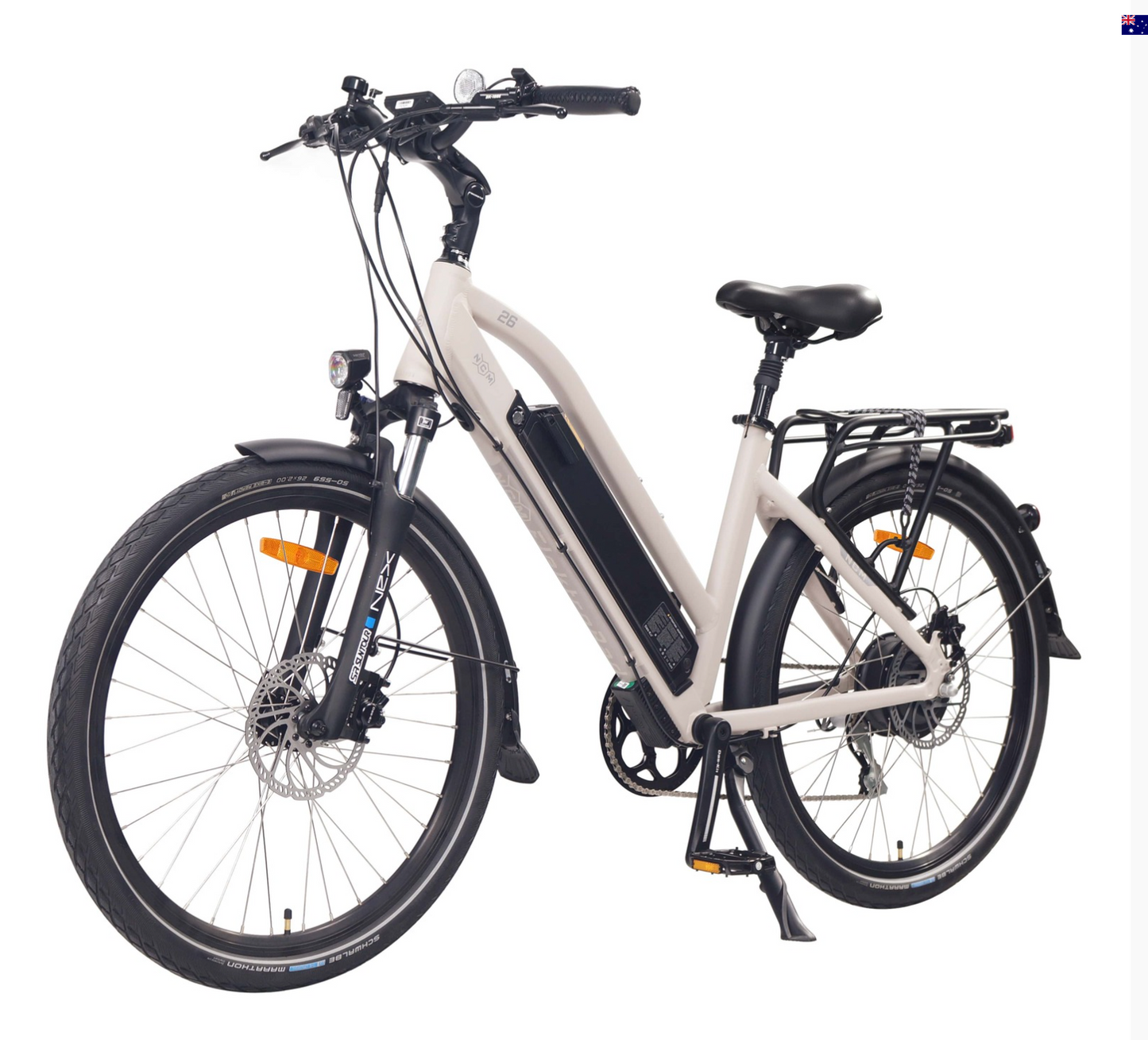

Inspired by the Fashion Capital of Europe the NCM Milano + is designed to ride as elegant as it looks. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat post for improved comfort. The low top tube, makes the bike sturdy and strong yet comfortable and easy to mount whilst providing additional protection to the battery.
- Ergonomic bicycle Grips
- Comfortable sitting posture
- All important controls easily accessible
- Supplied with 48V to deliver a high output power
- over 768Wh capacity for a longer distance
- reach up to 150 km (depending on the conditions)
- easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
General Information
- Weight: 27kg
- Type: E-Trekking
- Load capacity: Max. 125kg
- Maximum speed: 25km/h
Electric parts
- Motor: Das-Kit X15 motor, 48V 250W
- Battery: DEHAWK i5-4813P, 768Wh, 48v, 16Ah, with USB Port
- Display: Das-Kit C7, LCD Display
- Charger: DC483DE 48V 3A
Bike parts
- Frame: Alu. 6061, 457/480mm
- Fork: SUNTOUR NEX 63mm
- Brake System F/R: Tektro Hydraulic Disc.
- Gear shift: Shimano Acere M360, 8 speed
- Saddle: Selle Royal Gel Saddle, Brown
- Rear Derailleur: Shimano Acere M310, 7 speed
- Saddle: Selle Royal Gel Saddle, Brown
- Tyre: Shwalbe Marathon 26x1.75/28x1.5
- Handle Grips: Velo, Brown Leather
- Pedal: Wellgo, B087
- Range: Up to 150km
Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
