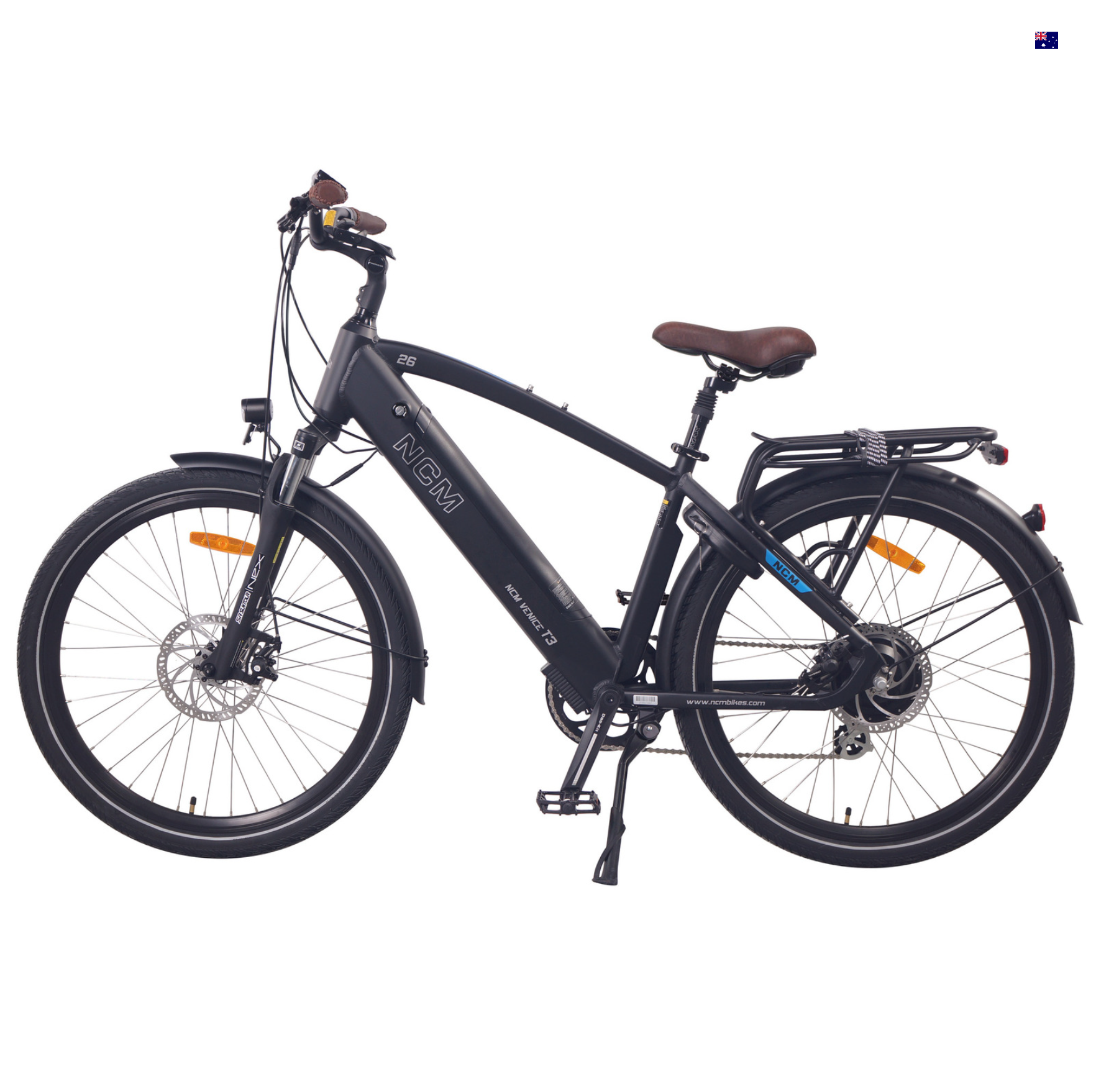

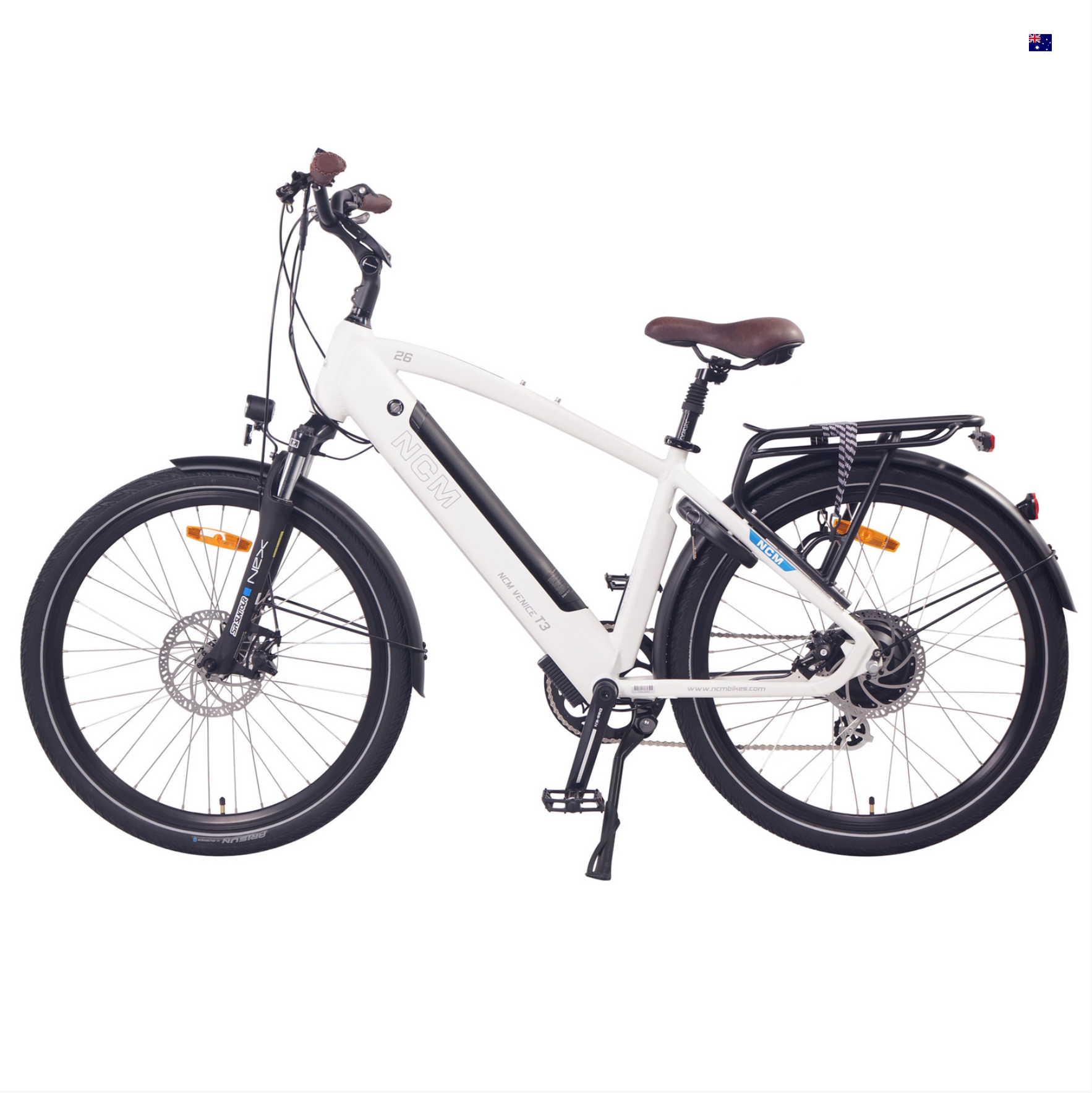

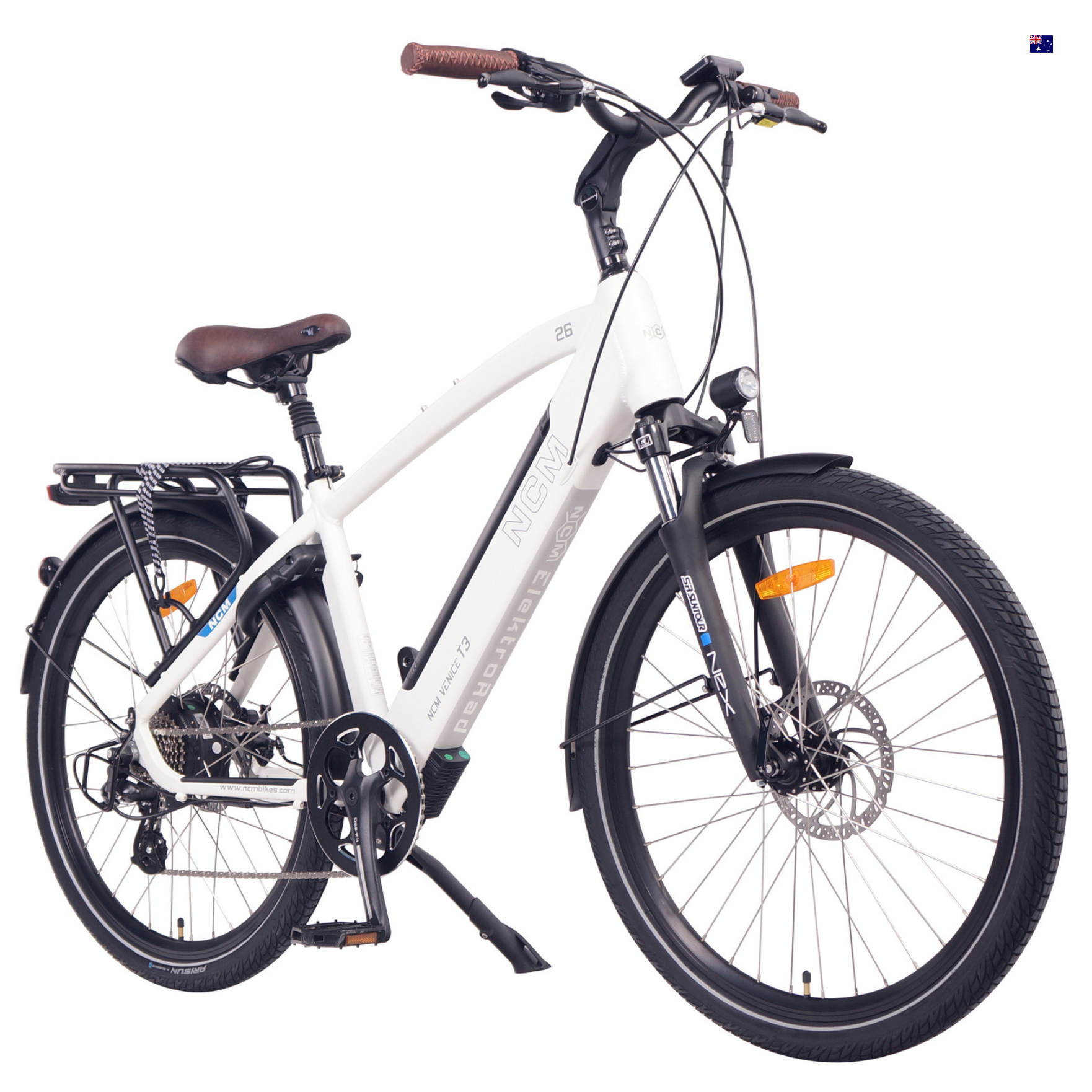

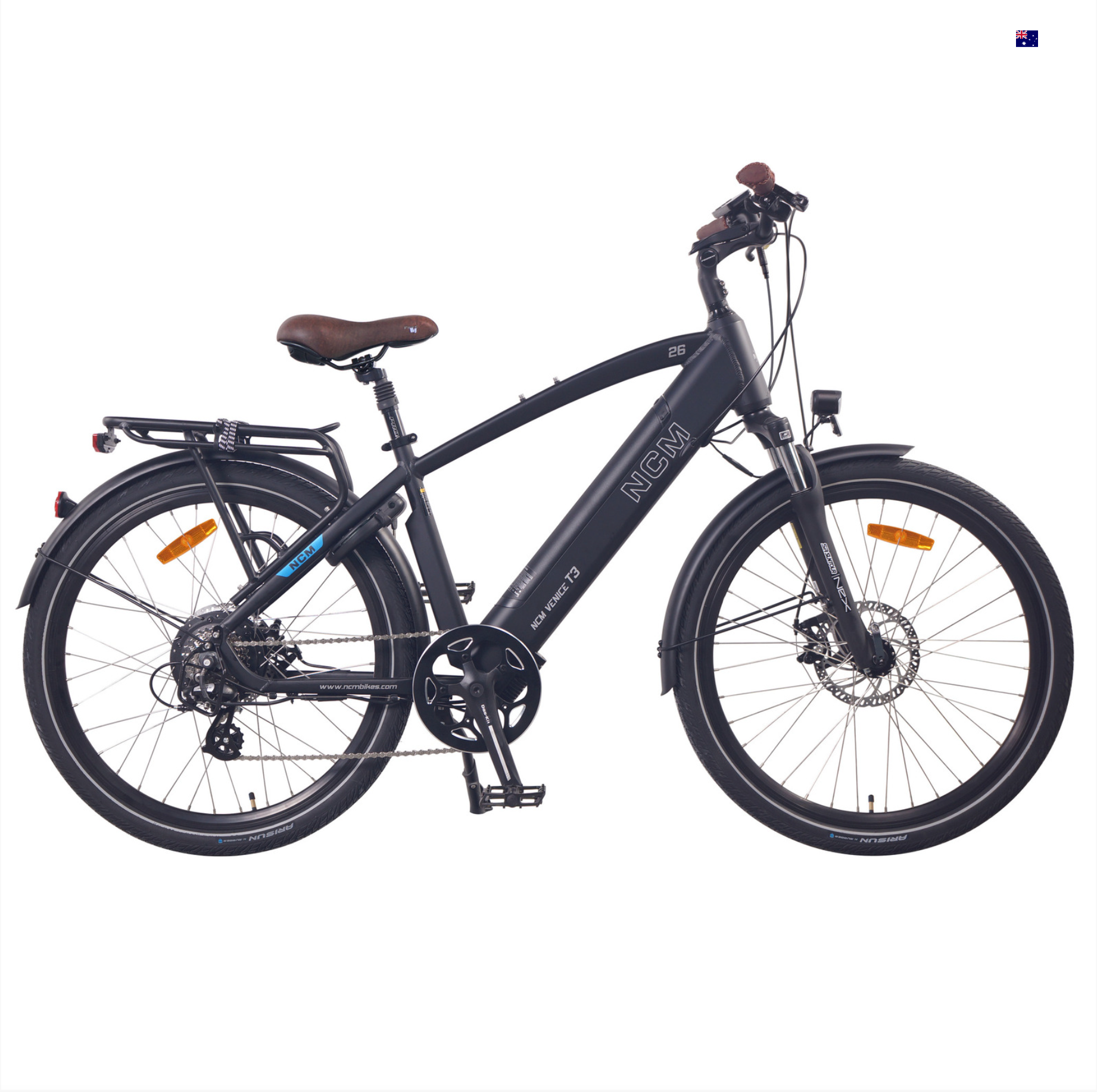

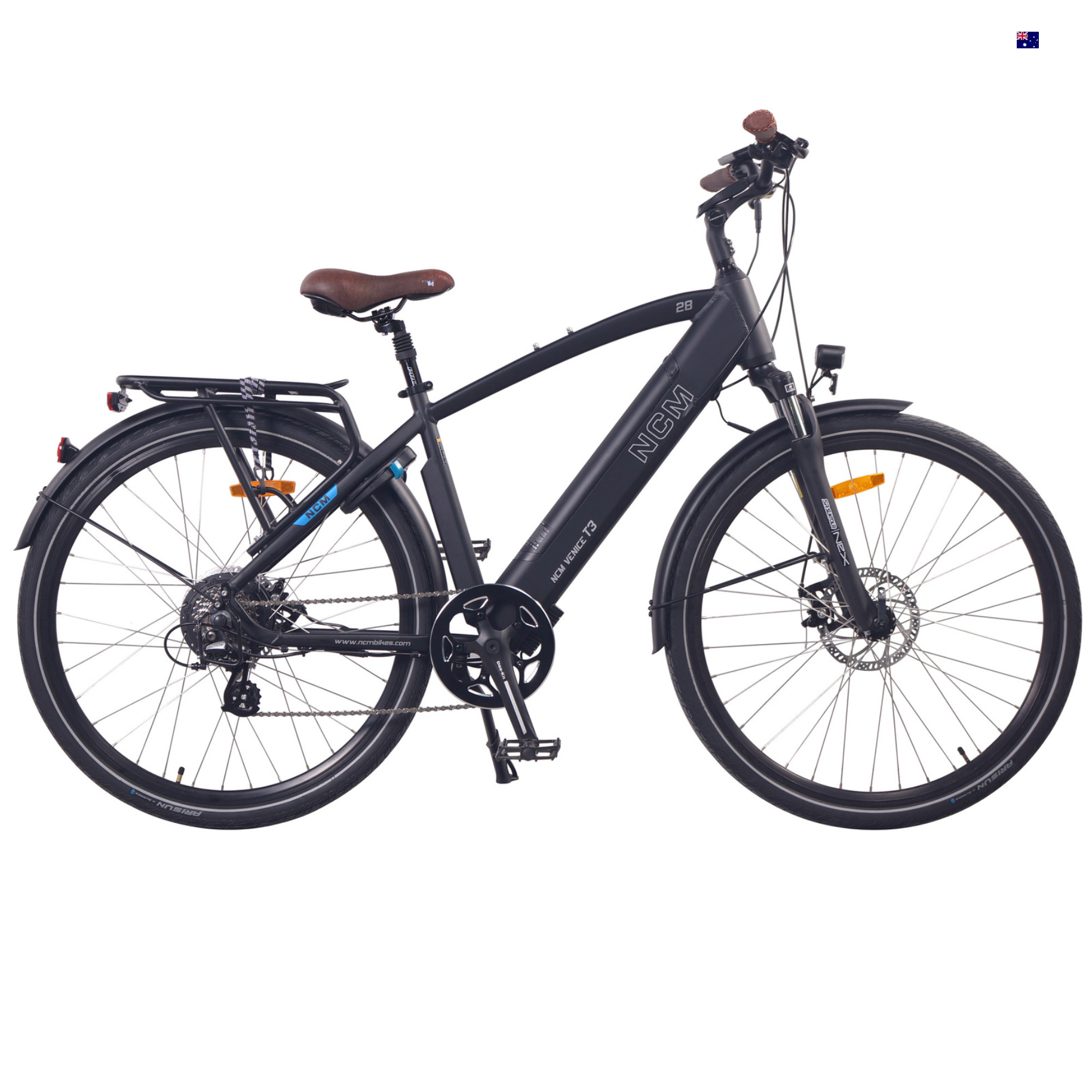

An exceptional entry point into the world of e-trekking bikes, the NCM T3 offers the chance to experience the smoothest city and countryside rides on an accessible step-through ebike engineered with high-quality components.
Bike Components
Frame: Alu. 6061, 26"*430mm Alu. 6061, 28"*460mm
Suspension Fork: Suntour
Brake: NEX 26/28 Disc Brakes 7 Speed
Freewheel: 14-28T Arisun
Tire: Arisun H-5213E
Saddle: Selle Royal FREEWAY
Stem: Promax MA-579
Crank: Das-Kit, CT48A, 48T
Shifter: Shimano, Altus, R:SL-M315-7R, 7 Speed Shimano
Derailleur: Altus RD-M310
Chain: KMC, Z51
Electrical Components
Battery: Das-Kit, i6-4812, 48V 12Ah

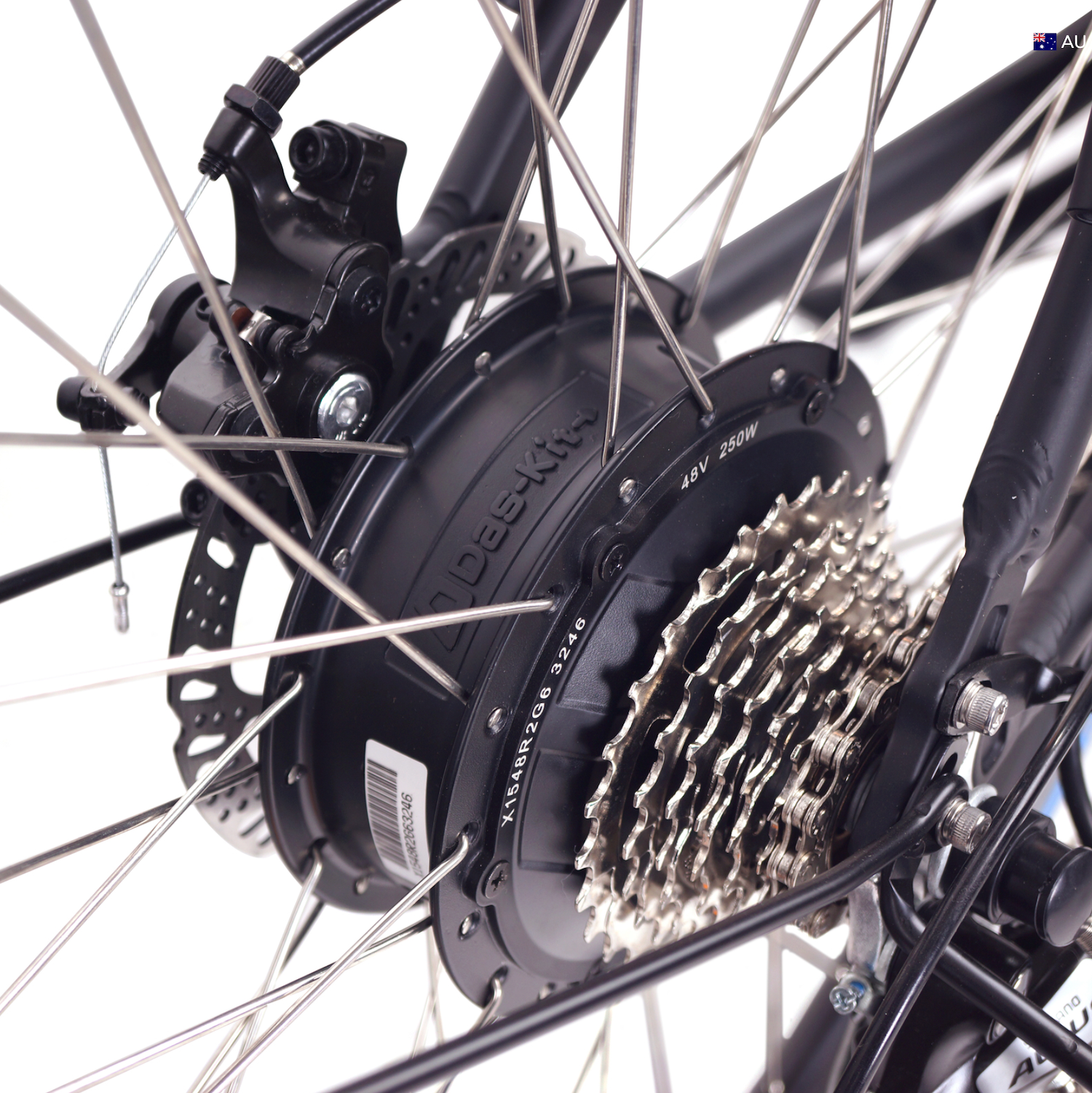

Hub Motor: Das-Kit, X15, 250W
Controller: Das-Kit, CT-i6, 48V18A
Charger: Das-Kit, 48V2A

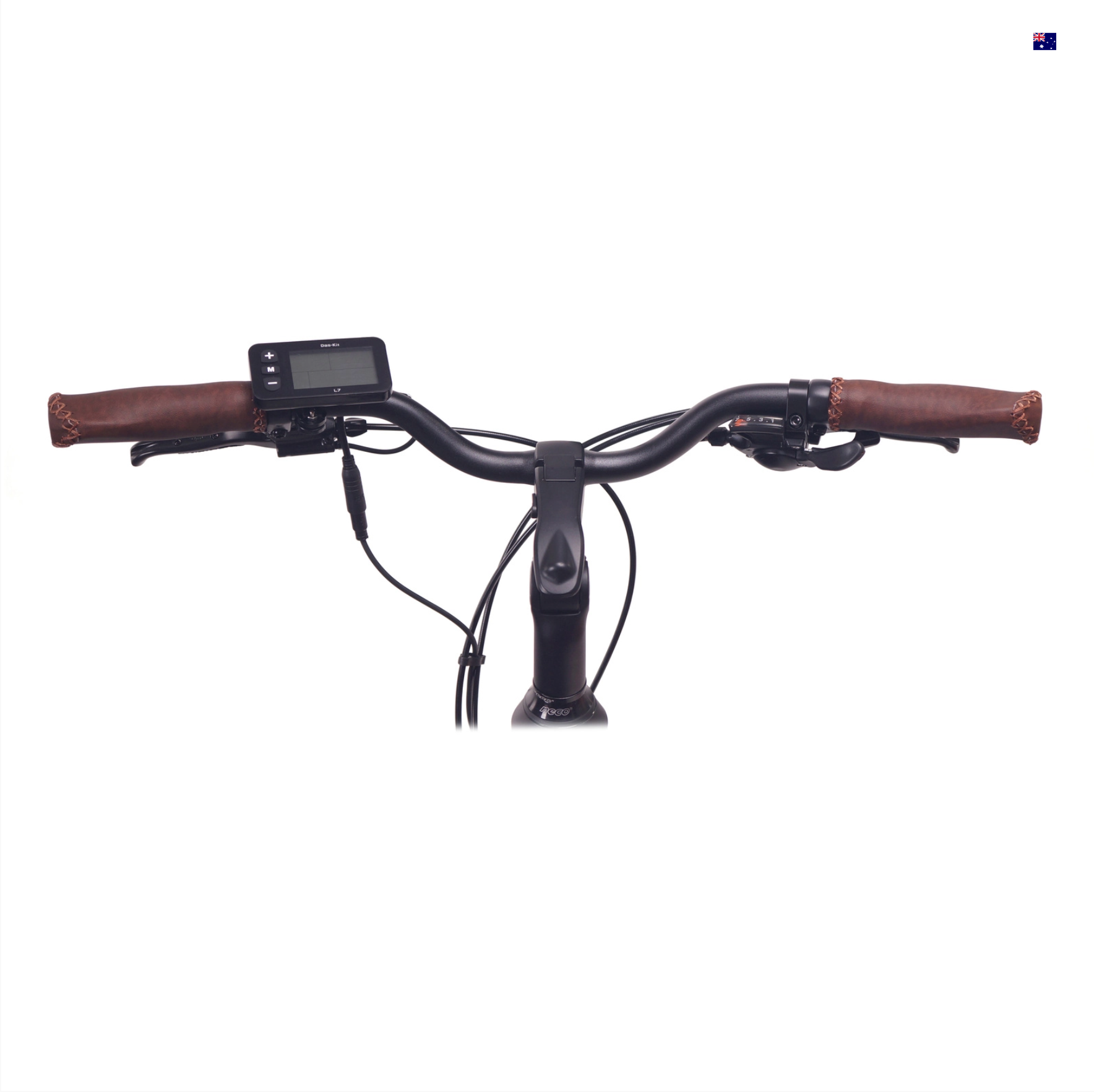

Display: Das-Kit, L7 DH002
Front Light: DH002, 48V, 40 Lux
Rear Light: DR009, AAA*2
Weight
Net Weight (with battery): 27 KG
Battery Weight: 3 KG
Max Load: 140 KG
